Siemens SINAMICS S220

7.12.4 Wiring a connection plug with screw connection
Requirement
WARNING
Electric shock or 󹪝re caused by non-certi󹪝ed plug connection plug in the power circuit
Using a non-certi󹪝ed connection plug can result in overheating, 󹪝re and/or electric shock.
• Only use certi󹪝ed connection plugs.
Required tools:
• Slotted screwdriver 1.0 x 5.5mm
Procedure

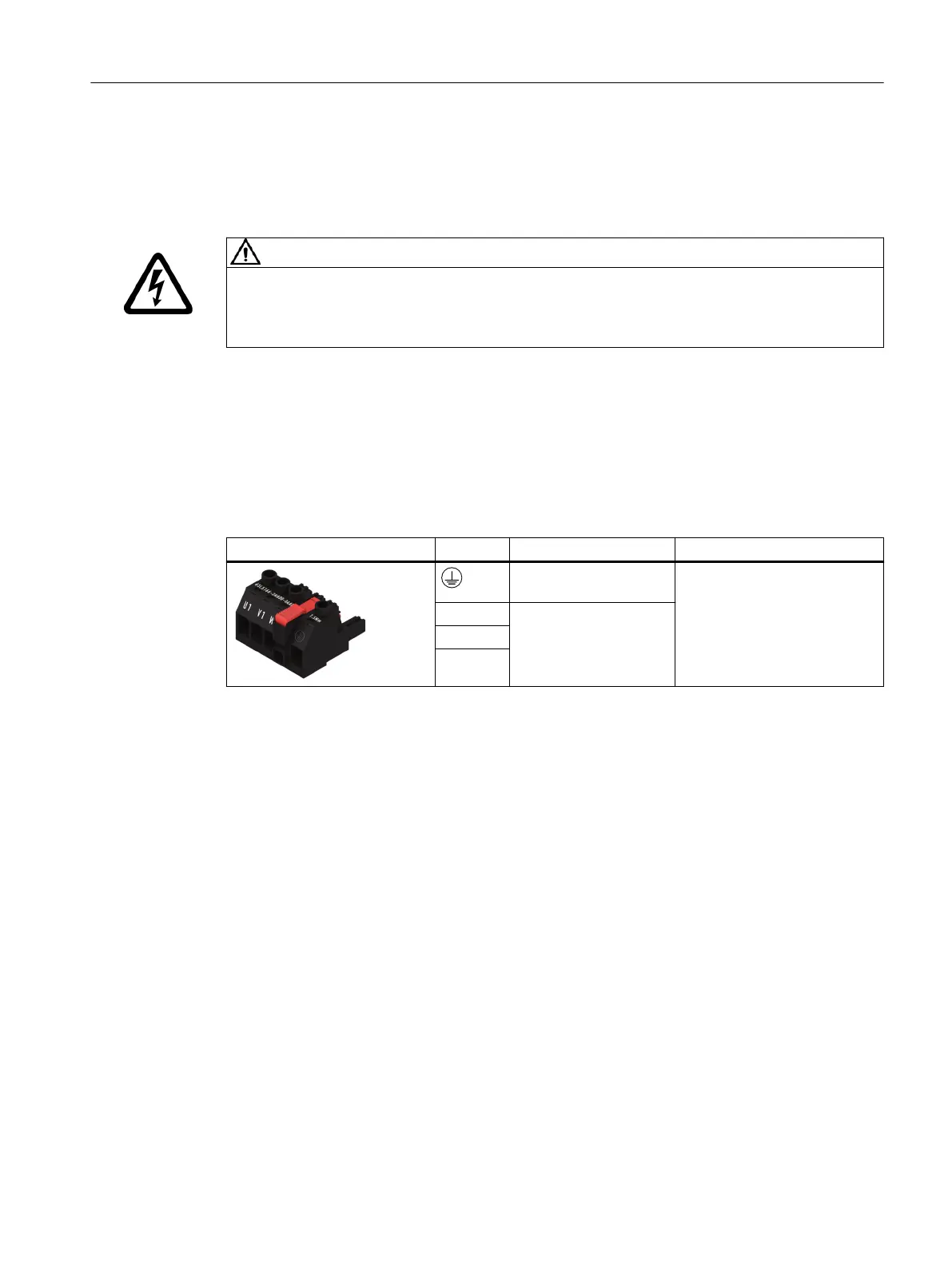

Table 7-13 Connection plug with screw connection
6SL5166-2NA00-0AA0 Terminal Designation Technical data
Protective conductor
connection
Screw terminal

W1 Line supply cable con‐
nection
V1
U1
Instructions on how to connect a line supply cable to the connection plug is provided below.
As standard, the protective conductor is connected at the connection plug. If this is not
possible in your installation, for example due to space constraints, you may instead connect
the protective conductor to the protective conductor connection at the component, see
Chapter "Connect the protective conductor (Page140)". In this case, in the following, it is not
necessary to connect a core for the protective conductor connection at the connection plug.
Proceed as follows to connect the cores in the connection plug:
1. Insert the cores into the open terminals starting with the protective conductor, W1, V1 and
U1.
– The cores must be inserted as far as they will go.
– For larger cross-sections, it is helpful if the protective conductor, W1, V1 and U1 are
simultaneously inserted and secured by screws.
2. Tighten the screws. Slotted screwdriver 1.0 x 5.5 mm. Tightening torque: 1.2 - 1.5 Nm (18 lbf
in)
Smart Line Modules
7.12Line connection
Booksize power units
Equipment Manual, 09/2023, A5E53307519B AA 133
