Siemens SINAMICS S220

8.1.3 Double Motor Modules
Overview diagram
NNNN
YY
VOEY"
Y"TMJN
Y"

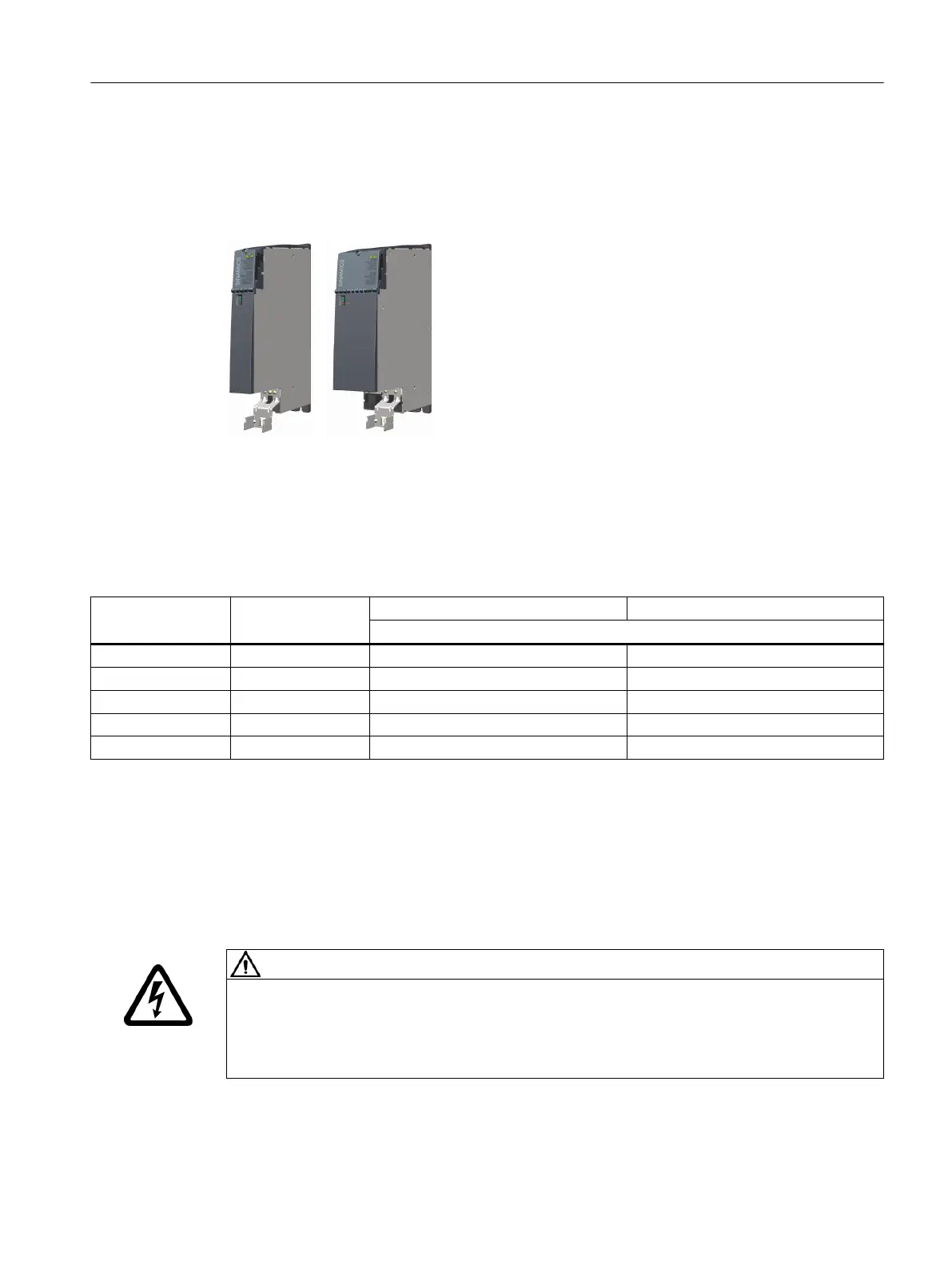

Figure8-2 Double Motor Modules 2x3A ... 2x18A
Table 8-2 Motor Modules
Output current [A] Width [mm] C type D type
Article No. 6SL5120-
2x3 50 - 2UE13-0AD0
2x5 50 - 2UE15-0AD0
2x9 50 - 2UE21-0AD0
2x18 50 2UE21-8SC0 2UE21-8SD0
2x18 100 2UE21-8AC0 2UE21-8AD0
8.2 Safety instructions
8.2.1 Safety information
WARNING
Electric shock when the protective 󹪞ap of the DC link is open
Live parts of the DC link are freely exposed when operating Motor Modules with open
protective 󹪞ap. Contact with live parts can result in death or serious injury.
• Only operate the components with closed protective 󹪞ap.
Motor Modules
