Siemens SINAMICS S220

8.5.12.4 Connecting the motor connection cable and holding brake
Requirement
Required tools:
• Slotted screwdriver 0.8 x 5.5mm
• Socket wrench size13
Procedure







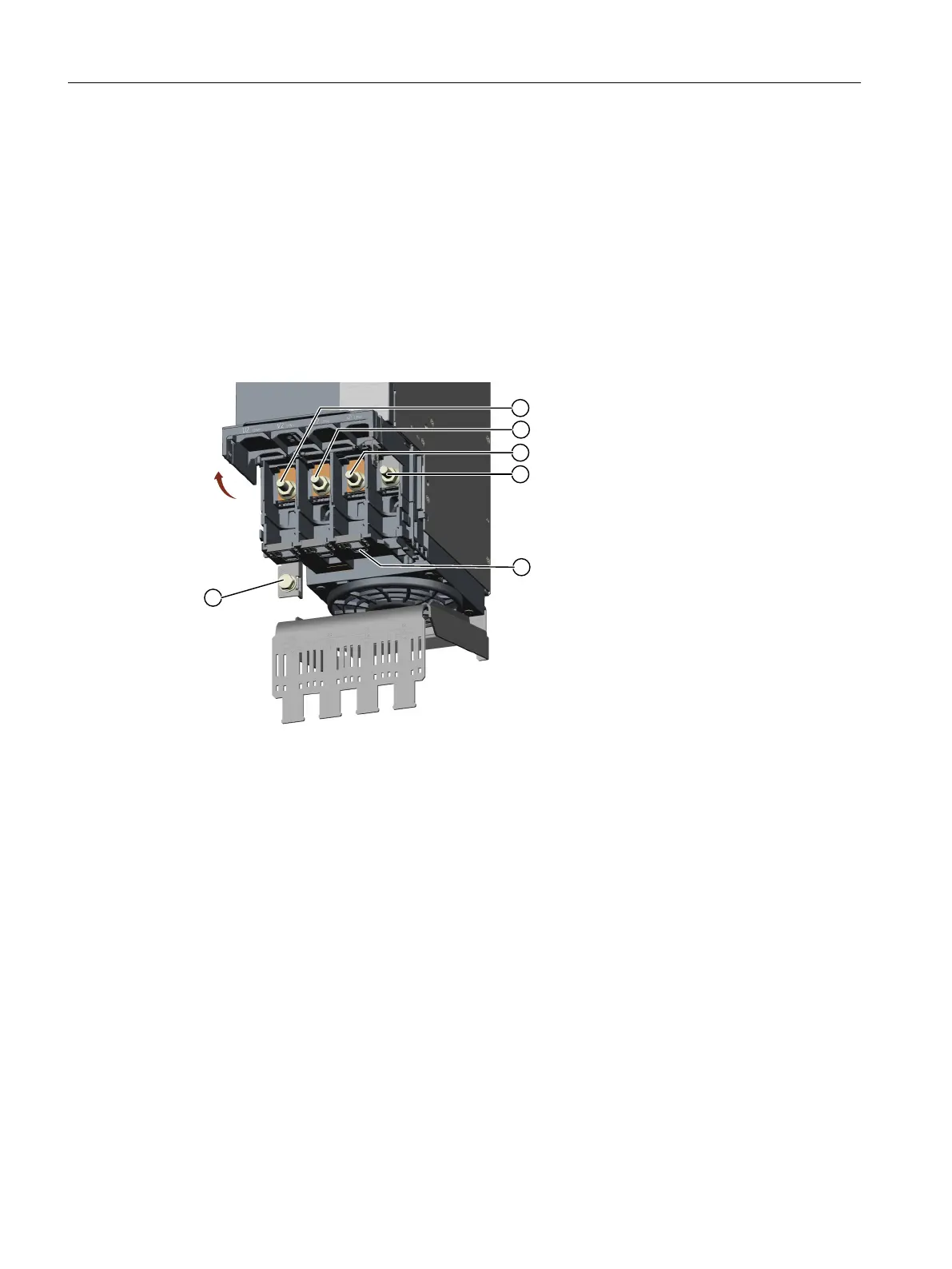

① U2 
② V2
③ W2
④ Protective conductor connection for the motor
⑤ Protective conductor connection for the Motor Module
⑥ Touch protection
Figure8-83 Connections for motor connection cable and holding brake at Motor Modules 85A,
132A and 200A
Connection X1 for the motor is implemented as motor connection block. The protective
conductor connection for the motor is also integrated in this. Proceed as follows to connect
the motor connection cable:
1. Open the locking of the cover of the motor connection block left and right and swing it
upwards. Slotted screwdriver 0.8 x 5.5mm
2. Remove the nuts from the threaded studs. Socket wrench size13
3. Place the cable lug onto the threaded studs. If you wish to connect two cables with cable lugs
to one connection, then also remove the shock protection at the lower part of the fan module.
Motor Modules
8.5Motor Modules 85 A, 132 A and 200 A
Booksize power units
238 Equipment Manual, 09/2023, A5E53307519B AA
