8.5.1.2 Interfaces (lower side)
Overview diagram
① X1: Motor connection block
② X11: Connecting the holding brake
③ X12: Fan connection
④ Screw for the protective conductor connection of the Motor Module

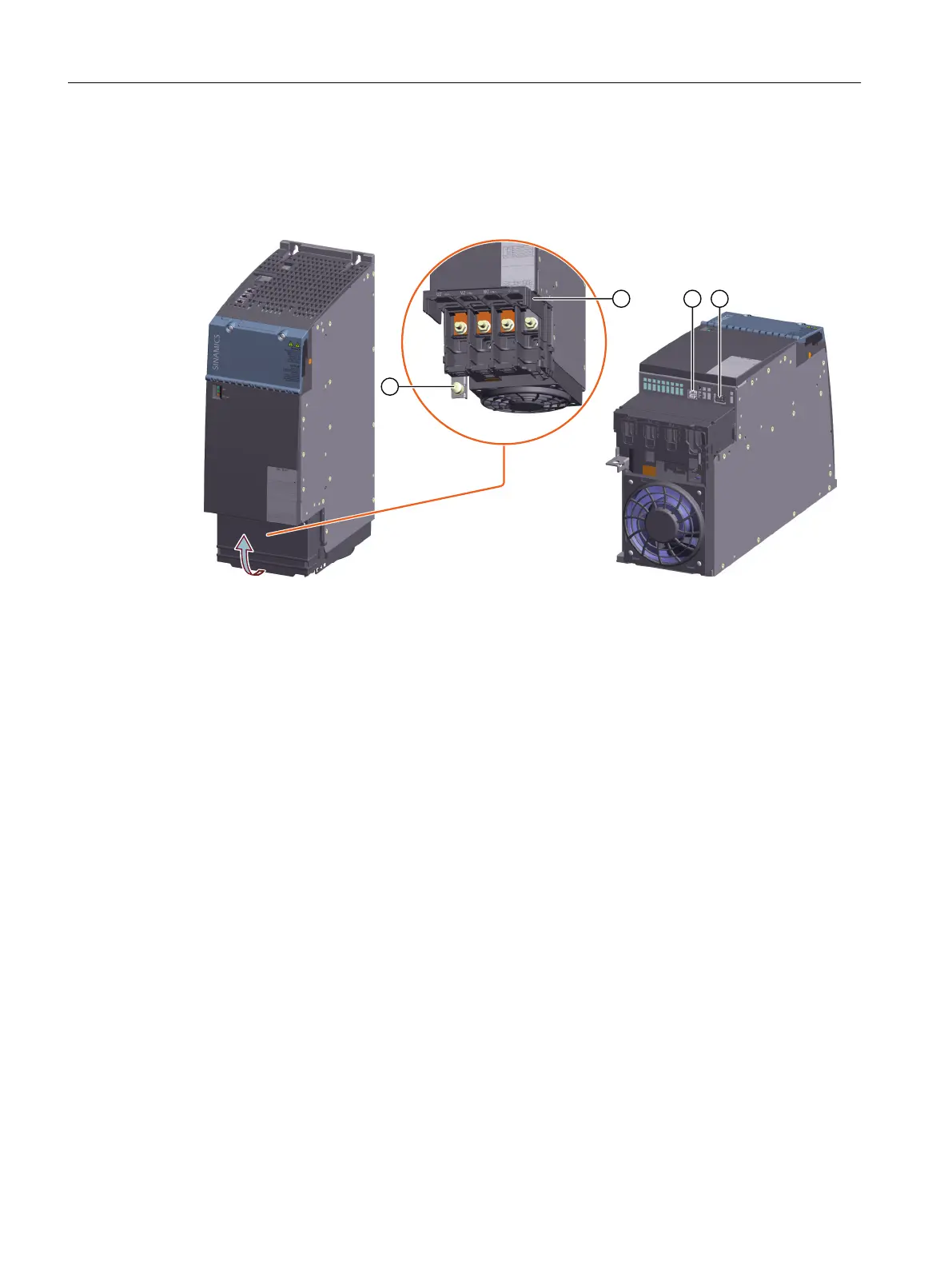

Figure8-56 Interface overview, Motor Modules 85A, 132A and 200A (lower side)
8.5.1.3 X21EP terminals/temperature sensor
Overview
A temperature sensor and the signal cable for the enable pulses (EP) function are connected at
interface X21.
The plug-in terminals are included in the Terminal Kit of the Motor Module.
