Figure8-77 Output current as a function of the pulse frequency
8.5.6.4 Permissible output current at low frequencies
Technical data

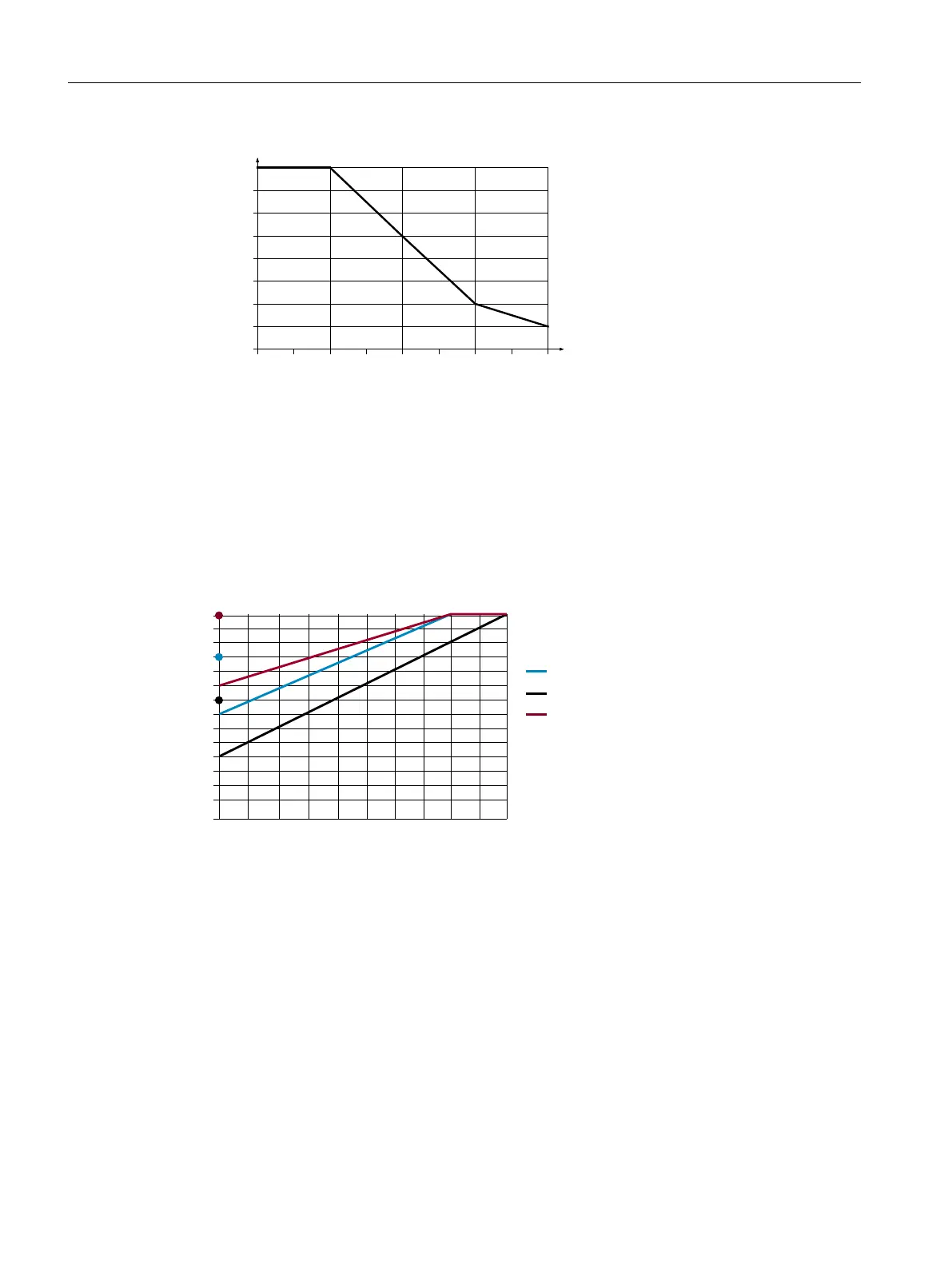

The following diagram shows the permissible output current as a function of the output
frequency when operating with low output frequencies.
0VUQVUGSFRVFODZ<)[>
1FSNJTTJCMFPVUQVU
DVSSFOU<>
$UZQFQVMTFGSFRVFODZࣩL)[
$UZQFQVMTFGSFRVFODZ࣪L)[
%UZQFࣩL)[








Figure8-78 Output current at low frequencies
For applications with a constant load, e.g. in paper machines, rolling mills etc., the output
current can be reduced as a function of the output frequency. To do this, the pulse frequency
must be set to a frequency less than 4 kHz.
