7.12.6 Attaching the connection plug
Procedure
-BUDIJOHQPTJUJPO
4IJFMEDPOOFDUJPOQMBUF

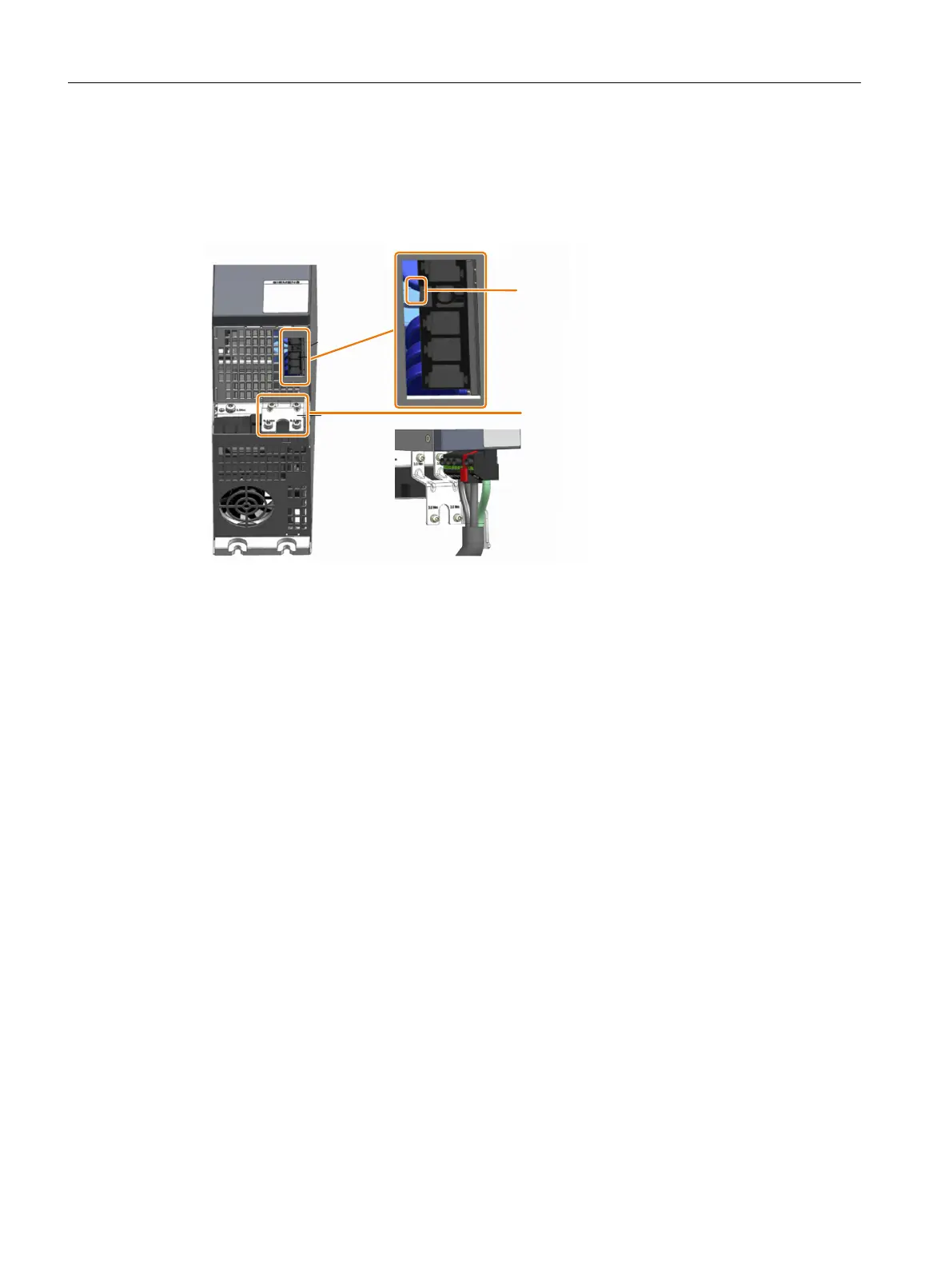

Figure7-15 Installing the connection plug at the Smart Line Module
Proceed as follows to attach the connection plug:
Insert the plug fully into connection socket X1 at the Smart Line Module until it audibly
latches.
7.12.7 Secure the line supply cable
Overview
If an unshielded line supply cable is used, this cable must also be fastened to the shield
connection plate on the Smart Line Module because the latching connection does not provide
reliable strain relief.
Requirement
The following requirements must be satis󹪝ed:
• The line supply cable is connected at the Smart Line Module.
• Use a suitable cable tie.
Procedure
Secure the line supply cable to the Smart Line Module shield connection plate using a cable tie.
