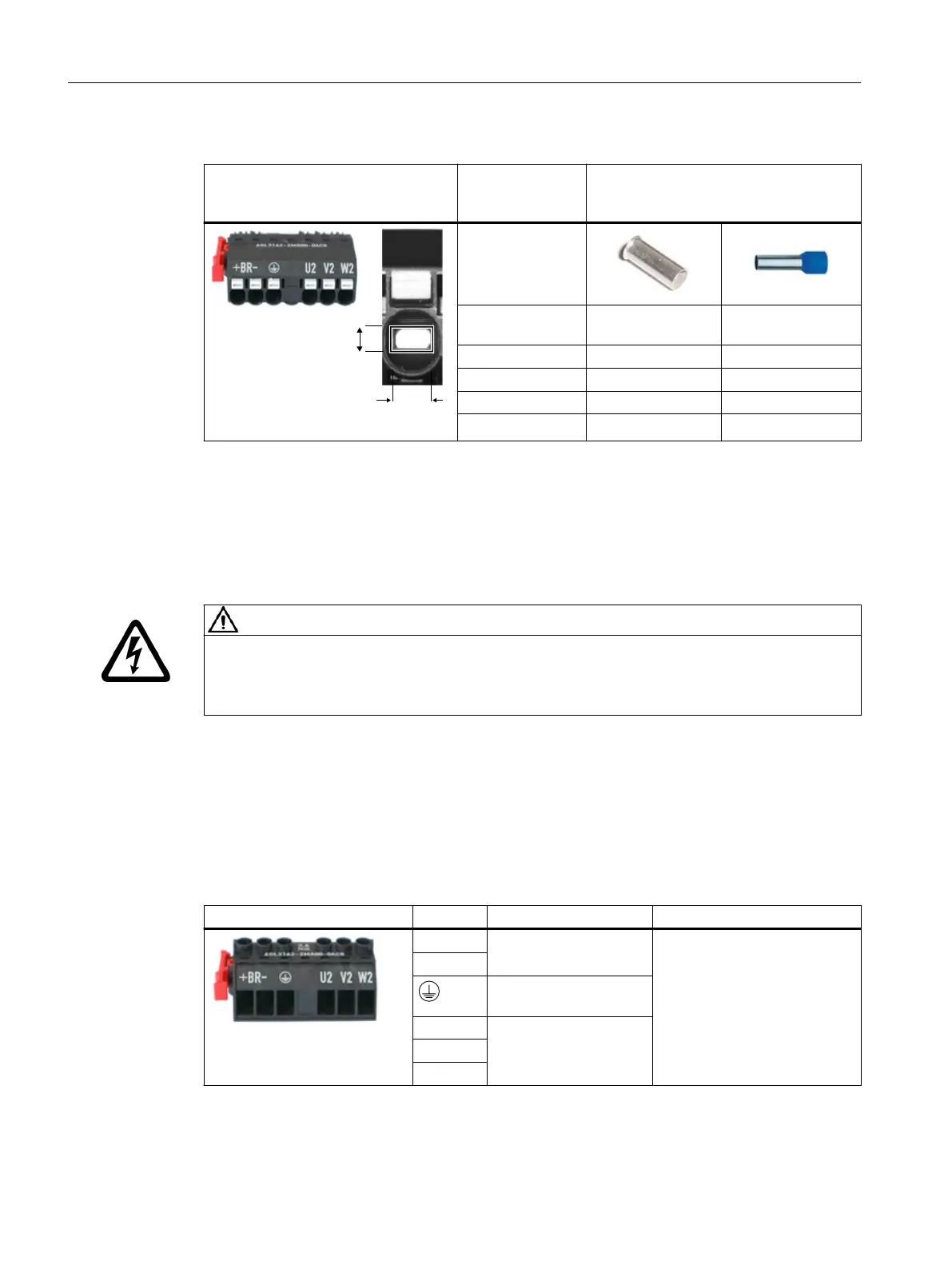

Table 8-15 Connection plug with push-in connection (6SL3162-2MB00-0AC0)
Dimensions of the terminal openings Permissible con‐
ductor cross-sec‐
tions
End sleeve
PPLQ
PPLQ

0.75mm
2
(AWG19)
✓ ✓
1.5 mm
2
(AWG 16) ✓ ✓
2.5 mm
2
(AWG 14) ✓ ✓
4mm
2
(AWG 12) ✓
1)
✓
1)
6 mm
2
(AWG 10) ✓
1)
✓
1)
1)
When crimped, end sleeves must not exceed the maximum dimensions of 2.9 x 5.0 mm (0.11 x 0.20 in).
8.3.10.4 Wiring a connection plug with screw connection
Requirement
WARNING
Electric shock or 󹪝re caused by non-certi󹪝ed plug connection plug in the power circuit
Using a non-certi󹪝ed connection plug can result in overheating, 󹪝re and/or electric shock.
• Only use certi󹪝ed connection plugs.
Required tools:
• Slotted screwdriver 0.8 x 4.0mm
Procedure
Table 8-16 Connection plug with screw connection
6SL3162-2MA00-0AC0 Terminal Designation Technical data
BR+ Holding brake connec‐
tion
Screw terminal

BR-
Motor PE/ground con‐
nection
U2 Motor connection
V2
W2
Motor Modules
8.3Motor Modules 3 ... 30 A and 2x3 ... 2x18 A
Booksize power units
