Siemens SINAMICS S220

11.3.5 Technical data
Technical data
Table 11-4 DRIVE-CLiQ cabinet bushing
Feature Unit 6SL3066-2DA00-0AA0 6FX2003-0DT67
Weight kg 0.165 0.035
Degree of protec‐
tion
- IP54 outside the control cabinet
IP20 inside the control cabinet
IP67
11.3.6 Order data
Connecting DRIVE-CLiQ components
Name Connector type and degree
of protection
Article number
DRIVE-CLiQ cabinet bushing for DRIVE-CLiQ signal
cables
with RJ45 plug 6SL3066-2DA00-0AA0
with M12 plug/socket 6FX2003-0DT67
11.4 DC link adapter
11.4.1 Overview
Overview diagram

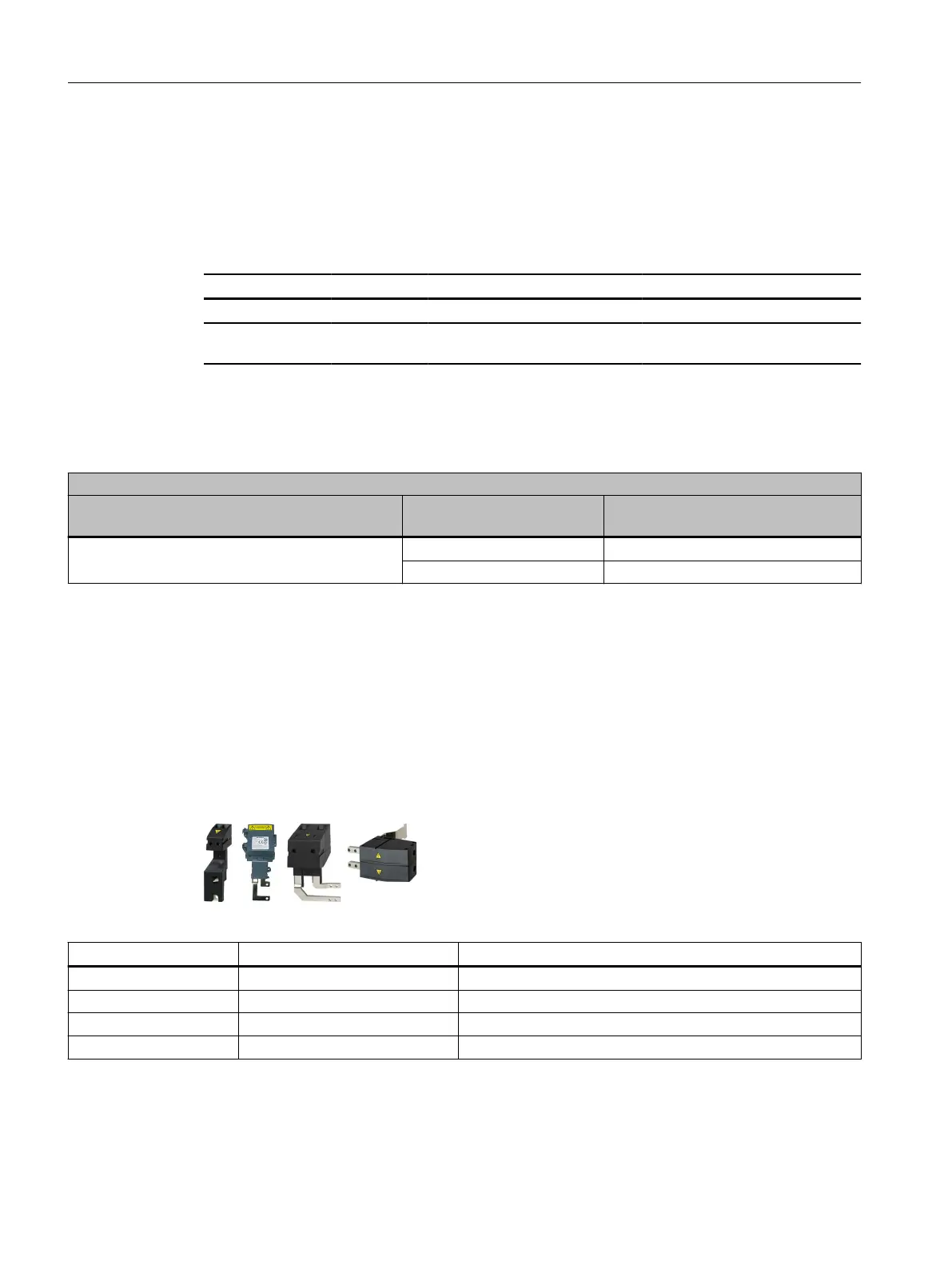

Figure11-7 DC link adapters 43A, 72A, 200A and 150/200A
Article number Technical data Used for Line Modules / Motor Modules, width
6SL3162-2BD00-0AA0 Rated current: 43A 50mm, 100mm
6SL3162-2BE00-0AA0 Rated current: 72A 100mm
6SL3162-2BM00-0AA0 Rated current: 200A 150mm, 200mm
6SL3162-2BM01-0AA0 Rated current: 150A/200A 50mm ... 200mm (for multi-tier con󹪝guration)
Accessories
11.4DC link adapter
Booksize power units
278 Equipment Manual, 09/2023, A5E53307519B AA
