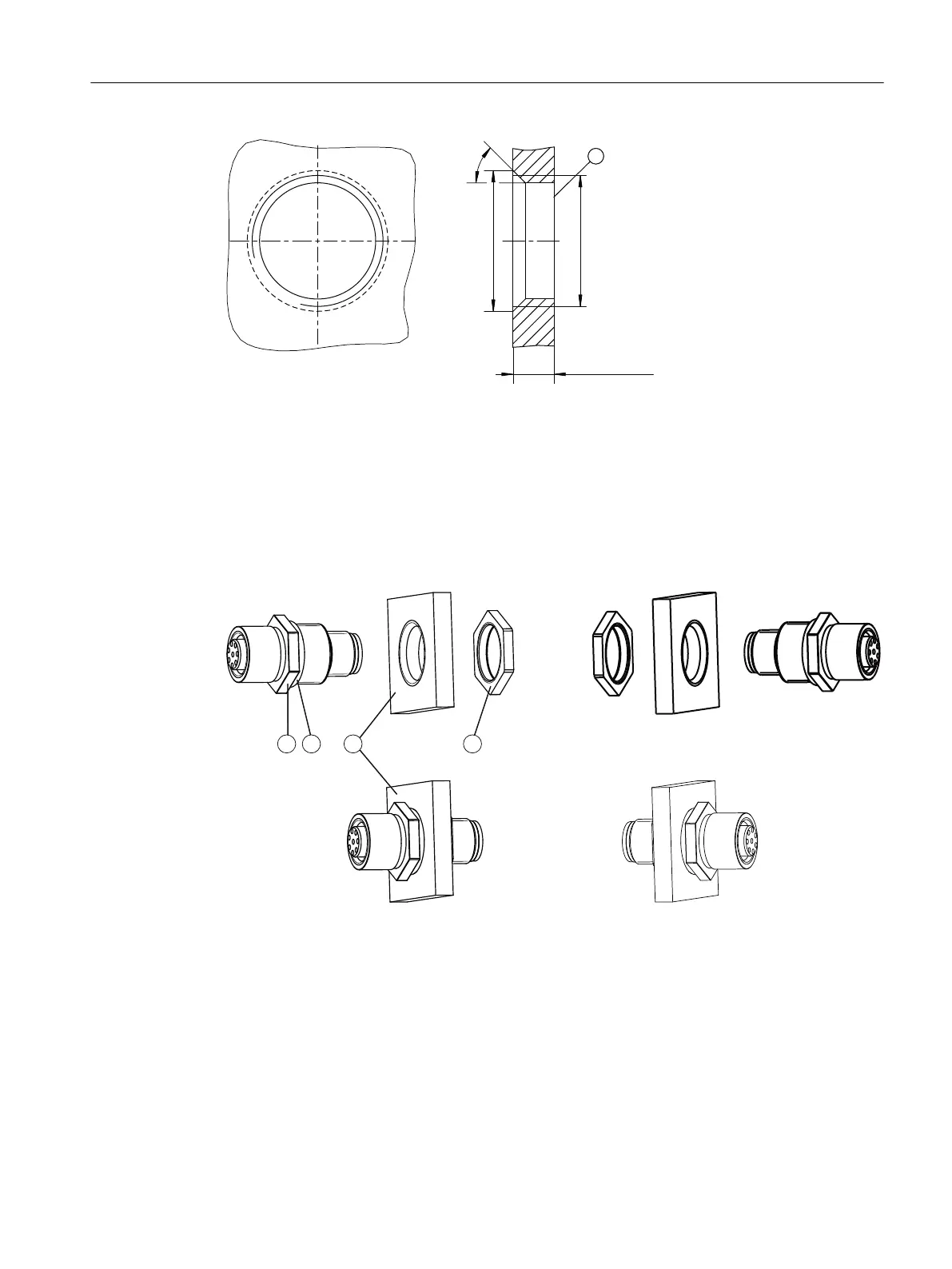

① Threaded hole with chamfer
Figure11-6 Threaded hole with an O-ring that can be screwed from the outside
1. Prepare the hole in the control cabinet.
– As depicted above, you can screw the removable O-ring from the inside or the outside.
2. Insert the DRIVE-CLiQ cabinet bushing from the outside of the control cabinet through the
cutout in the control cabinet.
3. Attach the DRIVE-CLiQ cabinet bushing by tightening the nut with a tightening torque of
3...4Nm (26.6...35.4lbfin).

① Flange, size 18
② Seal (O-ring)
③ Cabinet panel
④ Nut, size 20, tightening torque: 3...4Nm (26.6...35.4lbfin)
Accessories
11.3DRIVE-CLiQ cabinet bushing
