WARNING
Fire as a result of incorrectly dimensioned overcurrent protective devices in the DC link
connecting cable
Incorrectly dimensioned overcurrent protective devices can result in a 󹪝re and associated
smoke.
• Protect personnel and prevent 󹪝res by dimensioning the overcurrent protective devices in
the DC link connecting cable corresponding to the particular application.
• Comply with local installation regulations.
• Carefully check the overcurrent protective device to ensure that it functions perfectly, and
maintain it regularly in accordance with local installation regulations.
11.4.3 43A DC link adapter
11.4.3.1 Description
Overview
The 43A DC link adapter is used to directly supply the DC link voltage. It is preferably used for
supplying an individual component. For a direct infeed, each component is connected to the DC
link separately and the DC link busbars are not connected.
Overview diagram

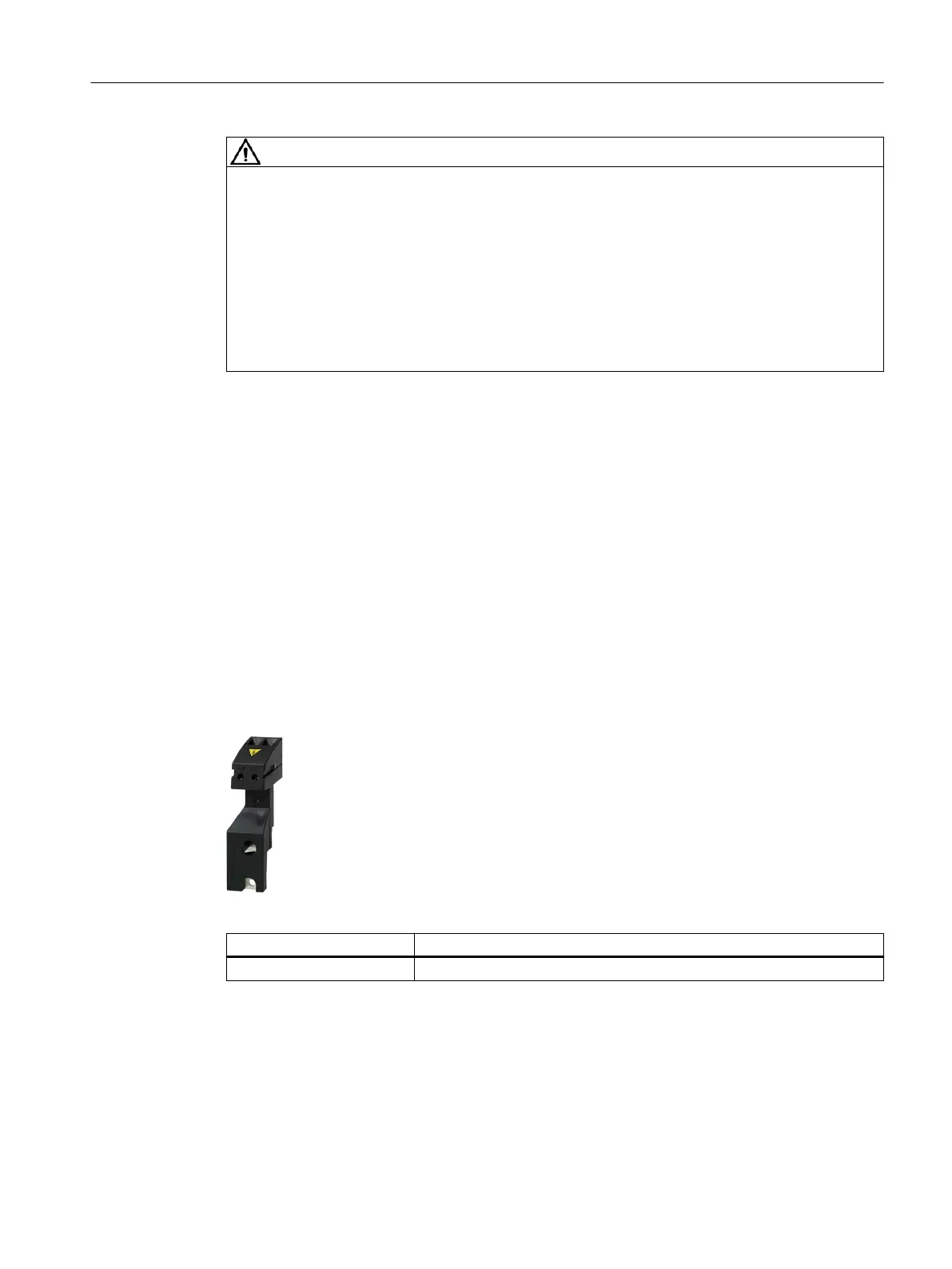

Figure11-8 43A DC link adapter
Article number Technical data
6SL3162-2BD00-0AA0 Rated current: 43A
Accessories
11.4DC link adapter
Booksize power units
Equipment Manual, 09/2023, A5E53307519B AA 281
