Example

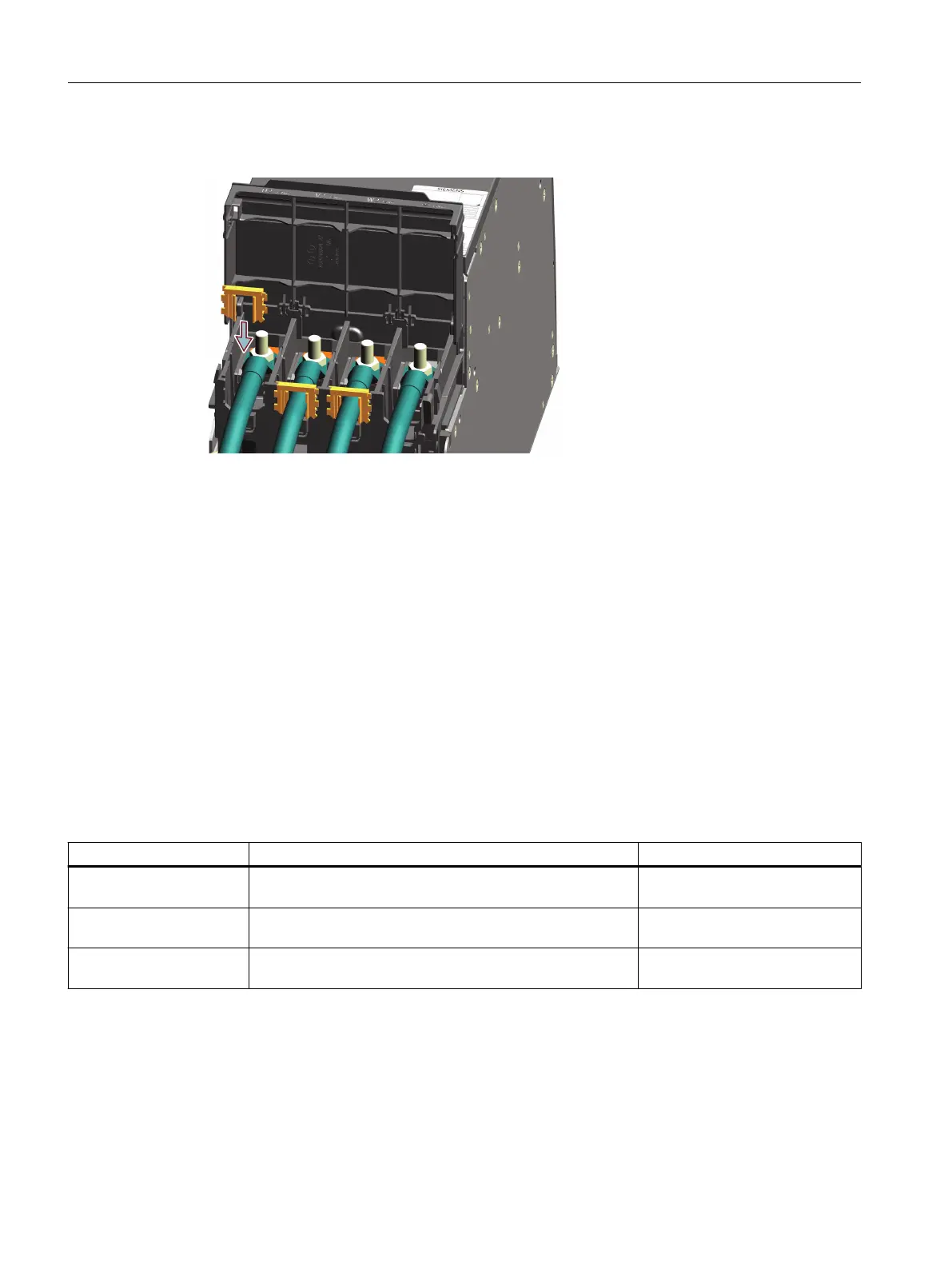

Figure8-85 Example of installed reduction collars
8.5.12.6 Connecting the cable shield
Overview
You can fasten the shield of the motor connection cable to the shield connection plate of the
Motor Module using a hose clamp or a shield connection clamp.
Requirement
The following requirements must be satis󹪝ed:
• The motor connection cable is connected at the motor connection block.
• The shield connection plate is mounted.
• Use a suitable hose clamp or shield connection clamp.
Shield connection clamp Use Article number
Phoenix SK14 For shielded single cores with a conductor diameter of up to
14mm (0.55 inch)
8WH9130-0MA00
Phoenix SK28 For shielded single cores with a conductor diameter of up to
28mm (1.1 inch)
8WH9130-0NA00
Phoenix SK35 For shielded cables with a cable diameter of up to 35mm
(1.38inch)
8WH9130-0PA00
