8.4.8 Mounting the shield connection plate
Requirement
Components required:
• Shield connection plate (6SL3162-1AD00-0AA0, should be separately ordered)
Procedure
Proceed as follows to mount the shield connection plate:
1. Fasten the shield connection plate to the lower mounting points of the Motor Module using
screws.
2. Tighten the screws. Tightening torque: 6Nm (53.1lbfin)

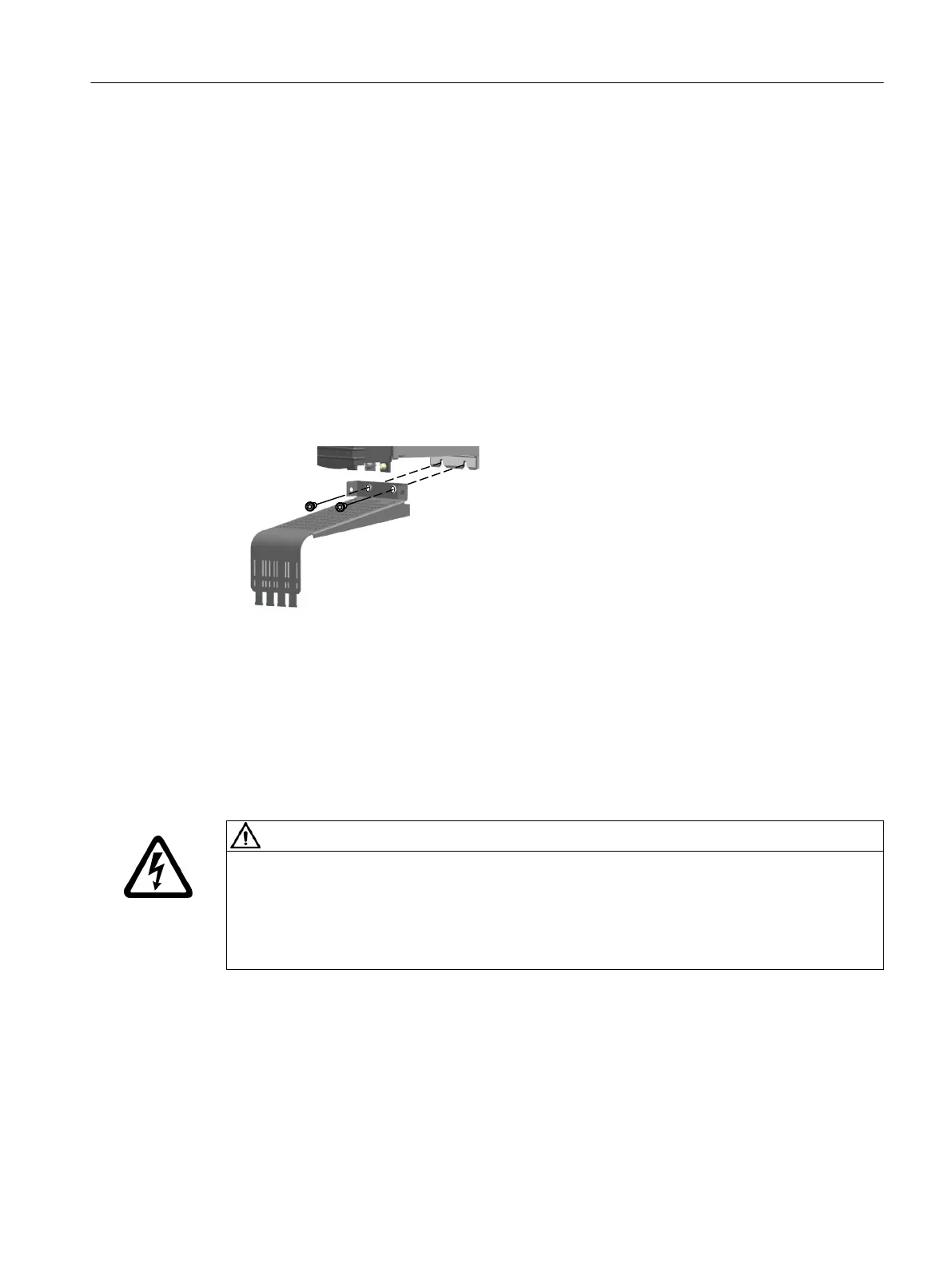

Figure8-46 Motor Modules 45A and 60A - mounting the shield connection plate
8.4.9 Connecting the shield for X21 cables
Requirement
WARNING
Electric shock due to impermissible screw length
If you use a di󹪜erent shield connection clamp than recommended here, note the following:
Excessively long screws can come into contact with live parts and can therefore result in death
or serious injury.
• Only use screws with a permissible insertion depth of 4- 6mm.
Permissible cable diameter: 3-8 mm
Required tool:
• Size3 Allen key
• Shield connection clamp from Weidmüller, type KLBUE3-8SC
Motor Modules
8.4Motor Modules 45 A and 60 A
Booksize power units
Equipment Manual, 09/2023, A5E53307519B AA 201
