The control cabinet must satisfy the following requirements for installation:
• Control cabinet panel/mounting panel:
– Housing: Sheet steel
– Panel thickness: 3mm (0.12in)
– Tensile strength: ≥ 270N/mm
2
acc. to DX51 EN10346
• 4 x M6 screws
• 4 x M6 washers
Procedure

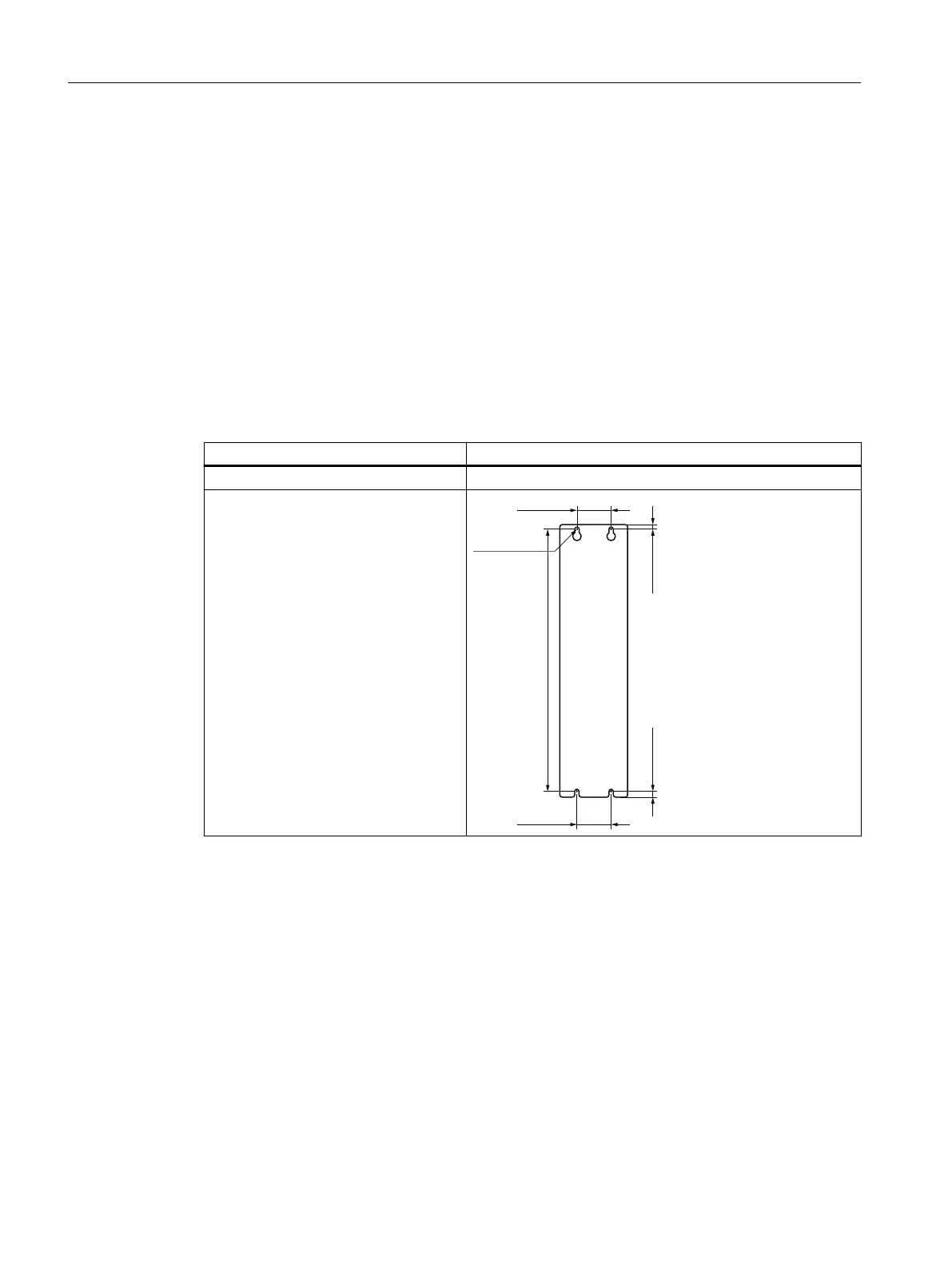

Table 8-24 Rear view of Motor Modules 45A and 60A in mm and (inch)
Rated current 45A and 60A
Width 100mm
Rear view





Proceed as follows to mount the Motor Modules onto the mounting panel:
1. Prepare the mounting panel.
2. First, screw the 4 screws in far enough so that you can attach the component.
3. Attach the component.
4. Tighten the screws 󹪝nger-tight. Tightening torque: 0.5Nm (4.4lbfin)
5. Then tighten the screws fully. Tightening torque: 6Nm (53.1lbfin)
Motor Modules
8.4Motor Modules 45 A and 60 A
Booksize power units
