8.5.4.2 Dimension drawing, Motor Modules 200 mm (200 A)
Dimension drawing











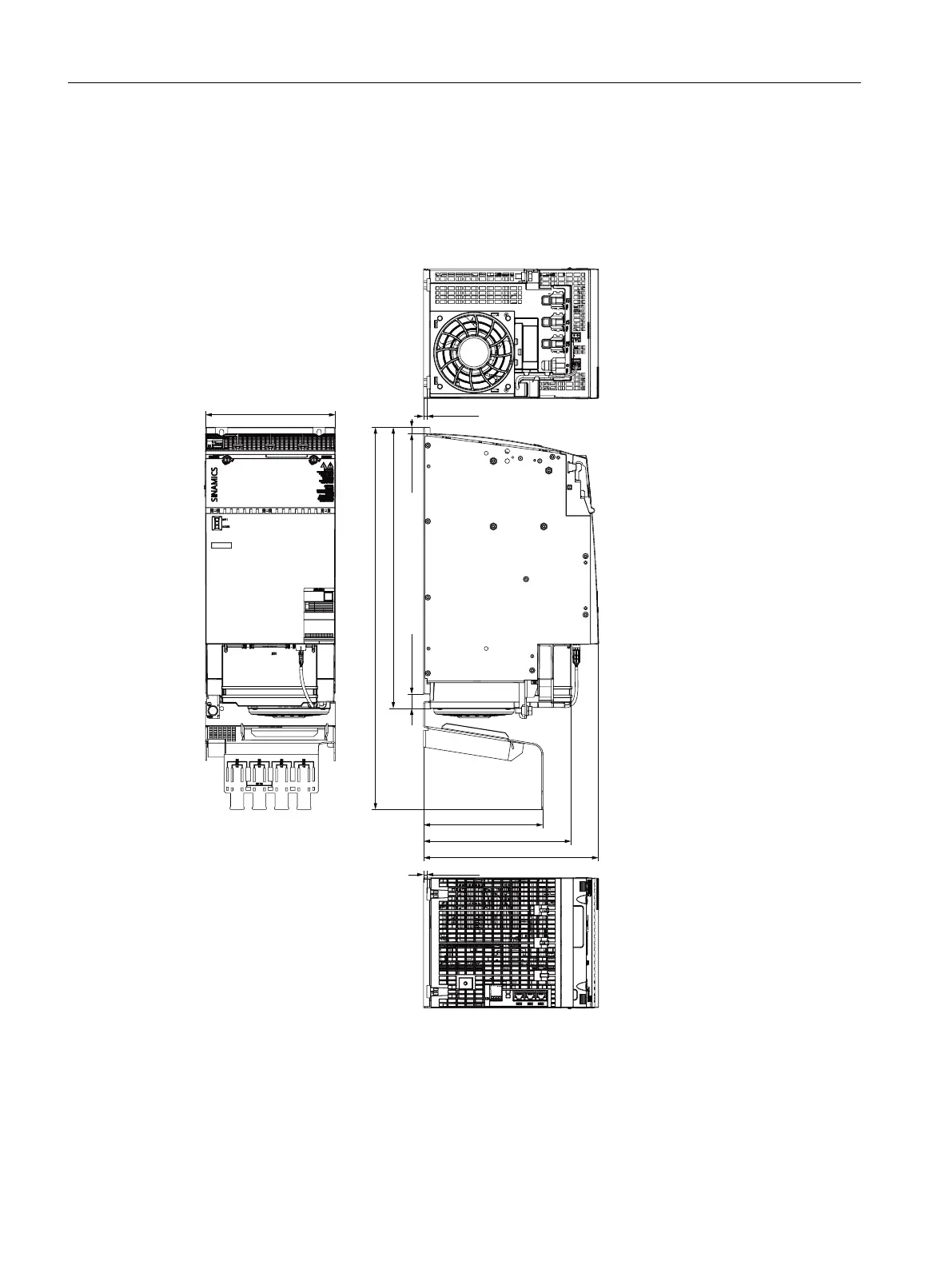

Figure8-59 Dimension drawing, Motor Modules 200A, all data in mm and (inch)
Motor Modules
8.5Motor Modules 85 A, 132 A and 200 A
