Procedure

[PP

7;

7;

7;

1POEILQ

7;

1POEILQ



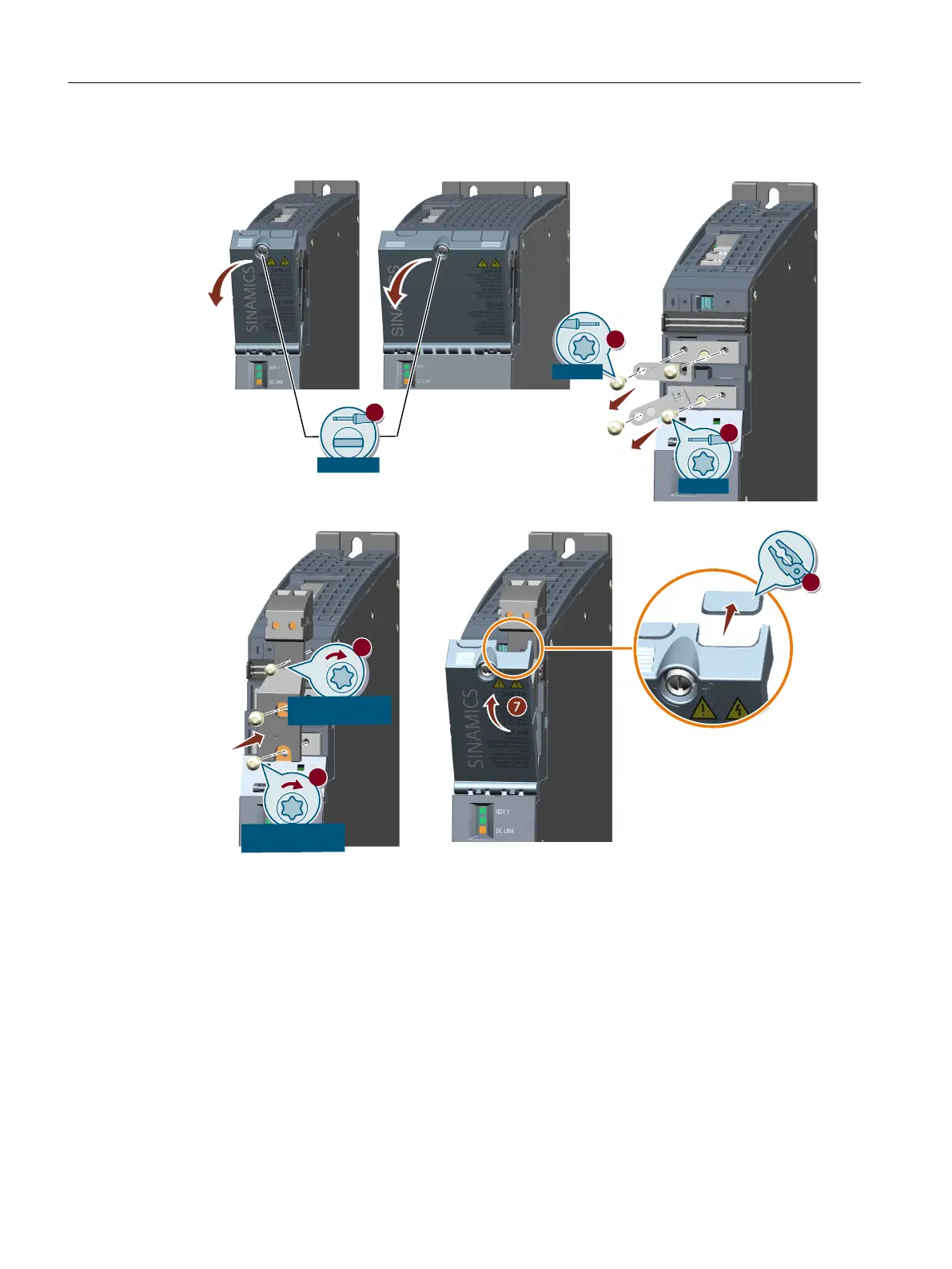

Figure11-10 Mounting the 43A DC link adapter
Proceed as follows to mount the DC link adapter:
1. Release and open the protective 󹪞ap. Slotted screwdriver 1.0x5.5mm
2. Remove the upper and lower left-hand screws and the two DC link bridges. Torx
screwdriverTX20
3. Remove the upper and lower right-hand DC link screws. Torx screwdriverTX20
4. Install the DC link adapter on the right-hand side of the component and screw it in using the
previously removed M4x20 DC link screws. Torx screwdriverTX20. Tightening torque:
1.8Nm (15.9lbfin)
5. Fasten the DC link adapter using the screw provided. Torx screwdriverTX10. Tightening
torque: 0.8Nm (7.1lbfin)
Accessories
11.4DC link adapter
Booksize power units
