Procedure


① Mounting for shield connection clamp
② Mounting for the hose clamp

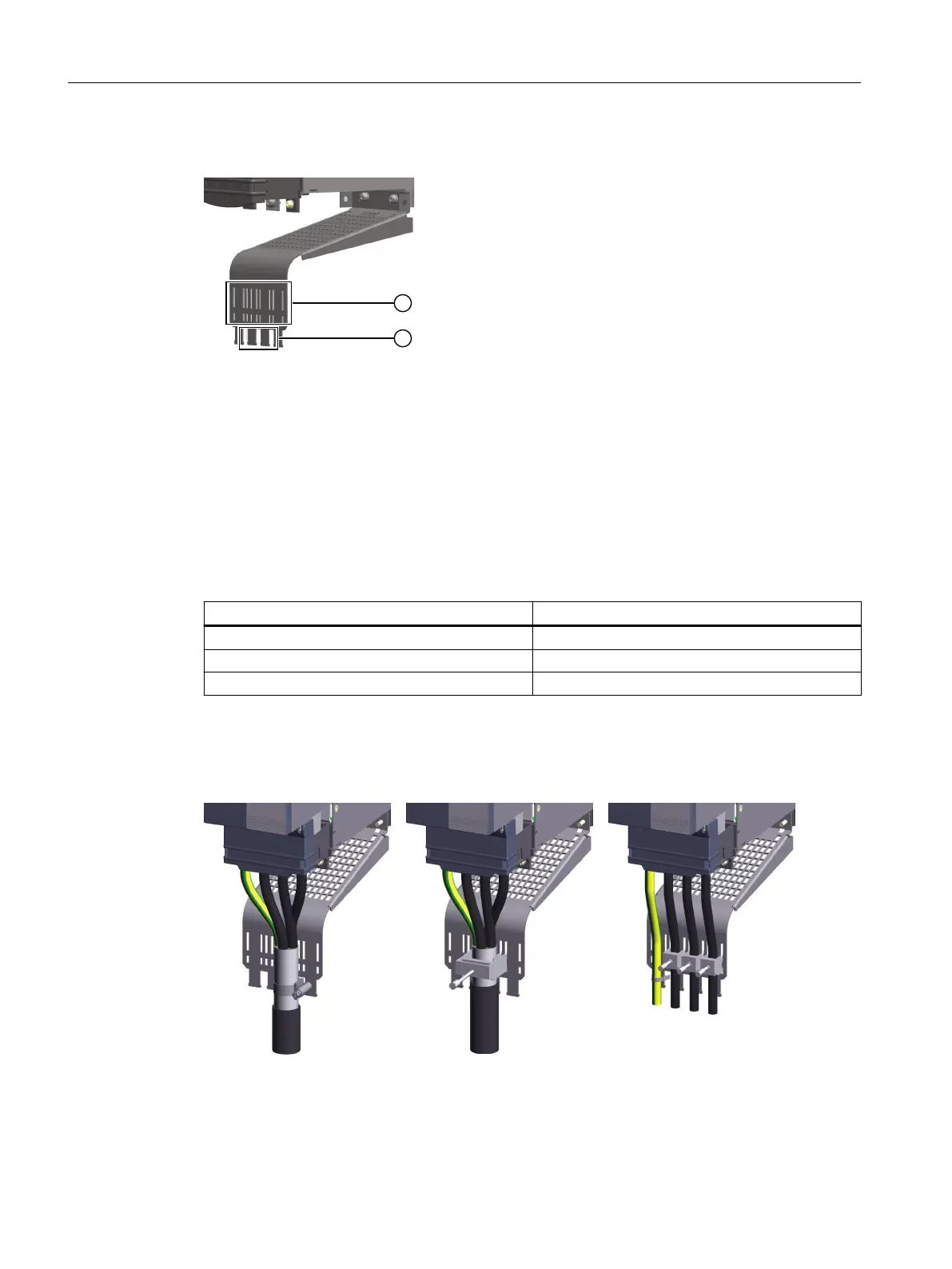

Figure8-52 Shield support options for Motor Modules 45A and 60A
Proceed as follows to connect the shield of the motor connection cable to the shield
connection plate of the Motor Module:
1. Fasten the shield of the motor connection cable to the shield connection plate using a hose
clamp or a shield connection clamp according to the table below.
2. When fastening a shield connection clamp, ensure that the conductor is located at the center
of the clamp.
Component Tightening torque
Hose clamp 0.8...1Nm (7.08...8.85lbfin)
Shield connection clamp Phoenix SK14 0.8 Nm (7.08lbfin)
Shield connection clamp Phoenix SK35 1.8 Nm (15.93lbfin)
Result
You have routed the motor connection cable so that it is screened.
Figure8-53 Shield support with hose clamp (left), shield connection clamp (center) and three shield
connection clamps for single cores (right)
Motor Modules
8.4Motor Modules 45 A and 60 A
