Note
Use of protective gloves
We recommend that you wear protective gloves when installing Motor Modules 85 A, 132 A and
200A.
The following requirements for installation must be satis󹪝ed:
• Control cabinet panel/mounting panel:
– Housing: Sheet steel
– Panel thickness: 3mm (0.12in)
– Tensile strength: ≥ 270N/mm
2
acc. to DX51 EN10346
• 4 x M6 screws
• 4 x M6 washers
Procedure

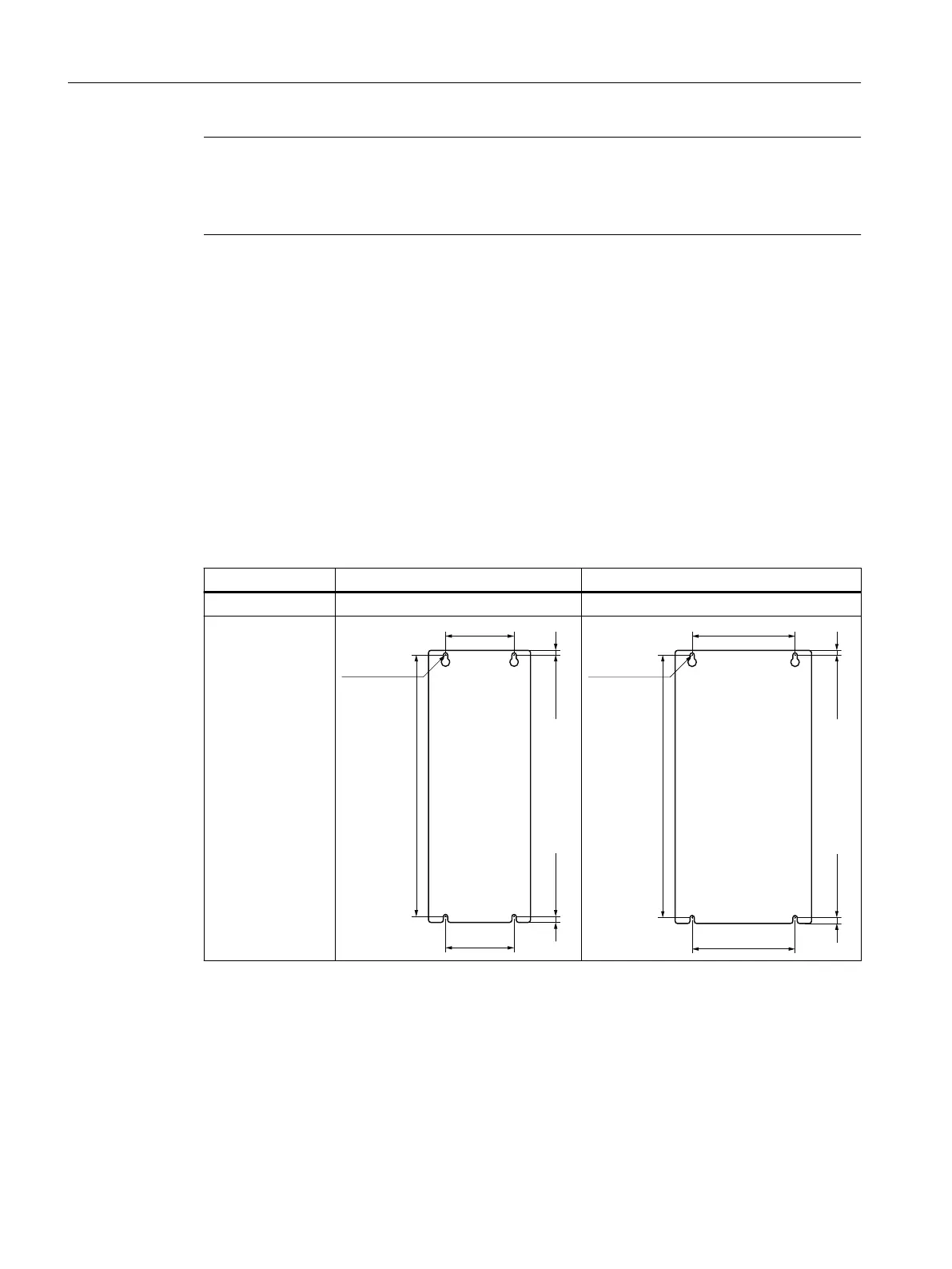

Table 8-38 Rear views of Motor Modules 85A, 132A and 200A in mm and (inch)
Rated current 85A and 132A 200A
Width 150mm 200mm
Rear view










Proceed as follows to mount the Motor Modules onto the mounting panel:
1. Prepare the mounting panel.
2. First, screw the 4 screws in far enough so that you can attach the component.
3. Attach the component.
4. Tighten the screws 󹪝nger-tight. Tightening torque: 0.5Nm (4.4lbfin)
5. Then tighten the screws fully. Tightening torque: 6Nm (53.1lbfin)
Motor Modules
8.5Motor Modules 85 A, 132 A and 200 A
