Procedure
[PP


7;

7;

1POEILQ


7;

1POEILQ




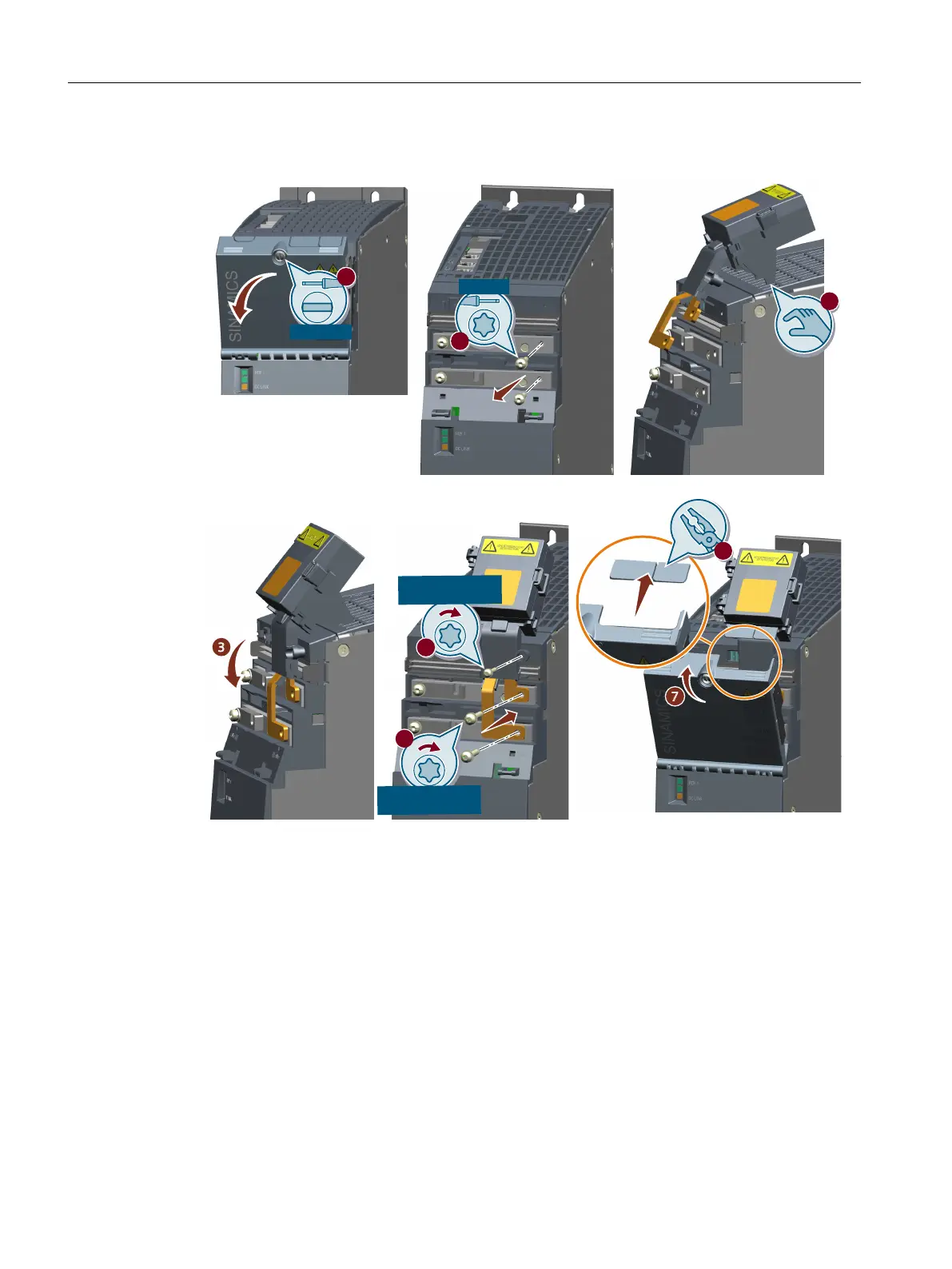

Figure11-15 Mounting the 72A DC link adapter
Proceed as follows to mount the DC link adapter:
1. Release and open the protective 󹪞ap. Slotted screwdriver 1.0x5.5mm
2. Remove the upper and lower right-hand DC link screws. Torx screwdriverTX20
3. Engage the DC link adapter in the grille and press it downward.
4. Screw the DC link adapter onto the right-hand side of the component using the previously
removed M4x20 DC link screws. Torx screwdriverTX20. Tightening torque: 1.8Nm
(15.9lbfin)
5. Fasten the DC link adapter using the screw provided. Torx screwdriverTX10. Tightening
torque: 0.8Nm (7.1lbfin)
6. Using pliers, break out the cutout in the protective 󹪞ap.
7. Close the protective 󹪞ap until you hear it snap into place.
Accessories
11.4DC link adapter
Booksize power units
290 Equipment Manual, 09/2023, A5E53307519B AA
