Procedure

7;
[PP


7;

7;
1POEILQ




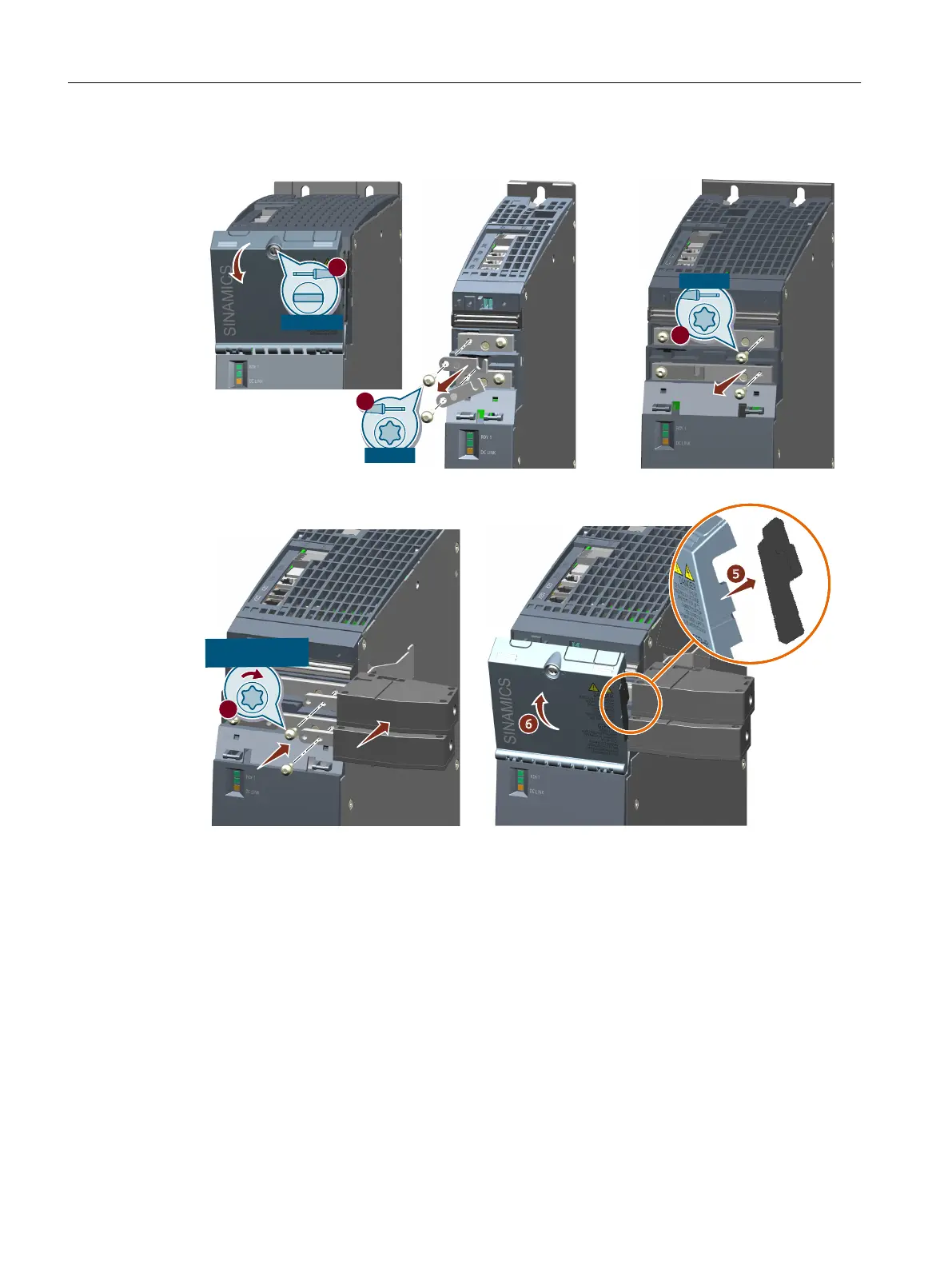

Figure11-23 Mounting a DC link adapter for a multi-tier con󹪝guration (2 screws)
Proceed as follows to mount the DC link adapter:
1. Release and open the protective 󹪞ap. Slotted screwdriver 1.0 x 5.5mm
2. For a 50 mm wide component, remove the upper and lower left-hand screws and the two DC
link bridges. Torx screwdriverTX20
3. On the required side of the component, remove the upper and lower DC link screws. Torx
screwdriverTX20
4. Install the DC link adapter at this position and screw it in using the previously removed 2 x
M4x20 DC link screws. Torx screwdriverTX20. Tightening torque: 1.8Nm (15.9lbfin)
– When using 2 screws for mounting, the two holes on the inside of the adapter busbar
must be used
