Procedure

7;

1POEILQ


[PP


7;

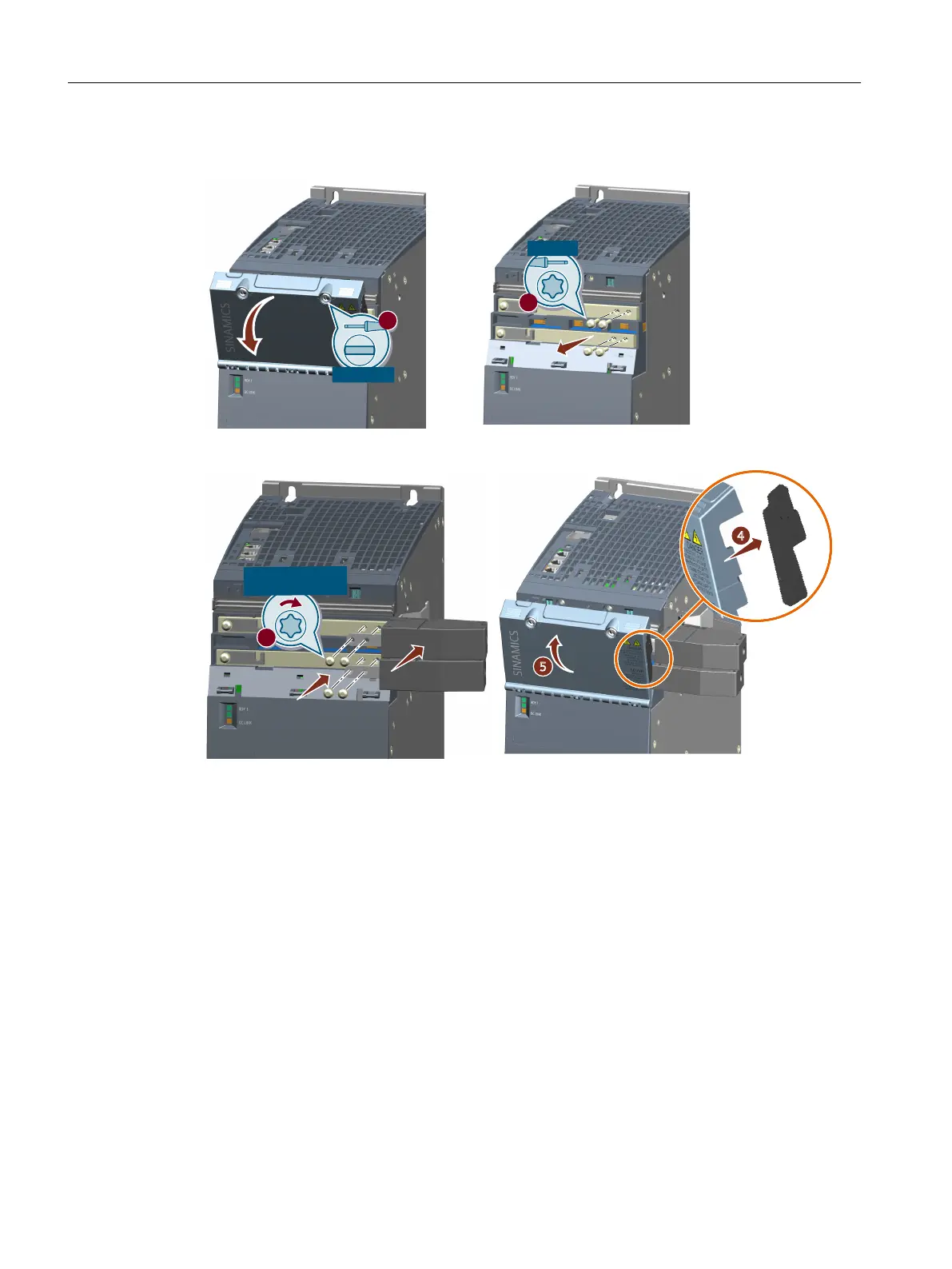

Figure11-24 Mounting a DC link adapter for a multi-tier con󹪝guration (4 screws)
Proceed as follows to mount the DC link adapter:
1. Release and open the protective 󹪞ap. Slotted screwdriver 1.0 x 5.5mm
2. On the right-hand side of the component, remove the 2 upper and 2 lower DC link screws.
Torx screwdriverTX20
3. Install the DC link adapter at this position and screw it in using the previously removed 4 x
M4x20 DC link screws. Torx screwdriverTX20. Tightening torque: 1.8Nm (15.9lbfin)
4. Remove the side covers from the protective 󹪞ap
5. Close the protective 󹪞ap until you hear it snap into place.
Accessories
11.4DC link adapter
