Siemens SINAMICS S220

Procedure
Proceed as follows to reform DC link capacitors:
1. For a 50mm wide component, 󹪝rst remove the DC link bridge.
2. Make sure that the device does not receive a switch-on command (e.g. via PROFINET/
PROFIBUS, BOP20or terminal block).
3. Connect the forming circuit. When forming with PTC resistors, the component must remain
in the circuit for approx. 1h.
ൺ
ൺ
˽
ൺ
ൺ
˽
ൺ
ൺ
˽
0RGXOHWREHIRUPHG
,QWHUIDFHIRU/LQH0RGXOHV
0RWRU
FRQQHFWLRQ
)XVHGVZLWFK
37&UHVLVWRUV
$&9
0RWRU0RGXOH/LQH0RGXOH
'&3'&3
'&1'&1
3(
3(
:
9
8
3(
///

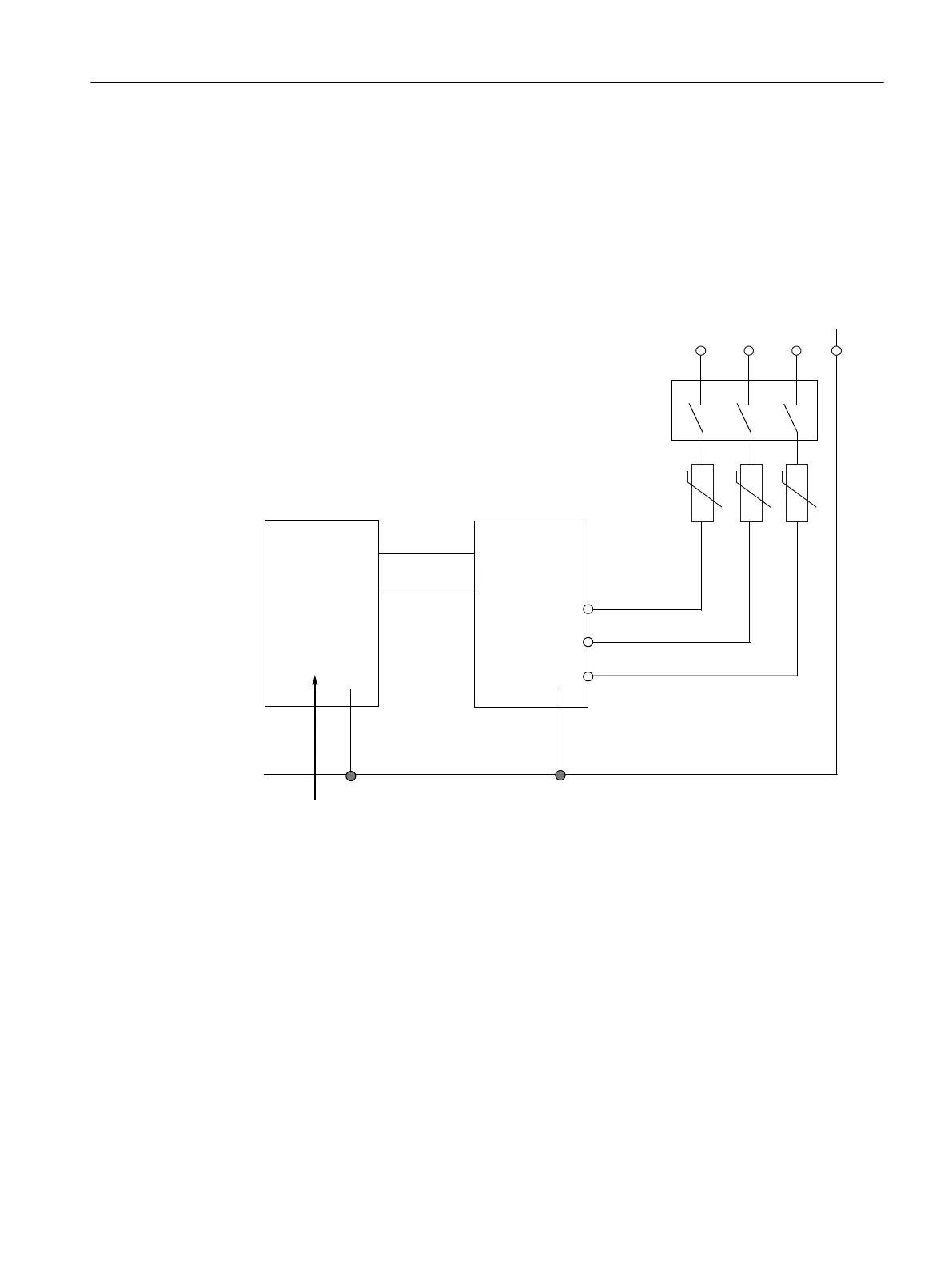

Figure12-2 Forming circuit for Line Modules with PTC resistors
Service and maintenance
12.2Forming DC link capacitors
Booksize power units
Equipment Manual, 09/2023, A5E53307519B AA 313
