Siemens SINAMICS S220

Required tools:
• Slotted screwdriver 1.0x5.5mm to release the protective 󹪞ap
• Torx screwdriver TX10 to fasten the 24V terminal adapter
• Slotted screwdriver 1.0x4.0mm
• Pliers for breaking out the cutout
Procedure



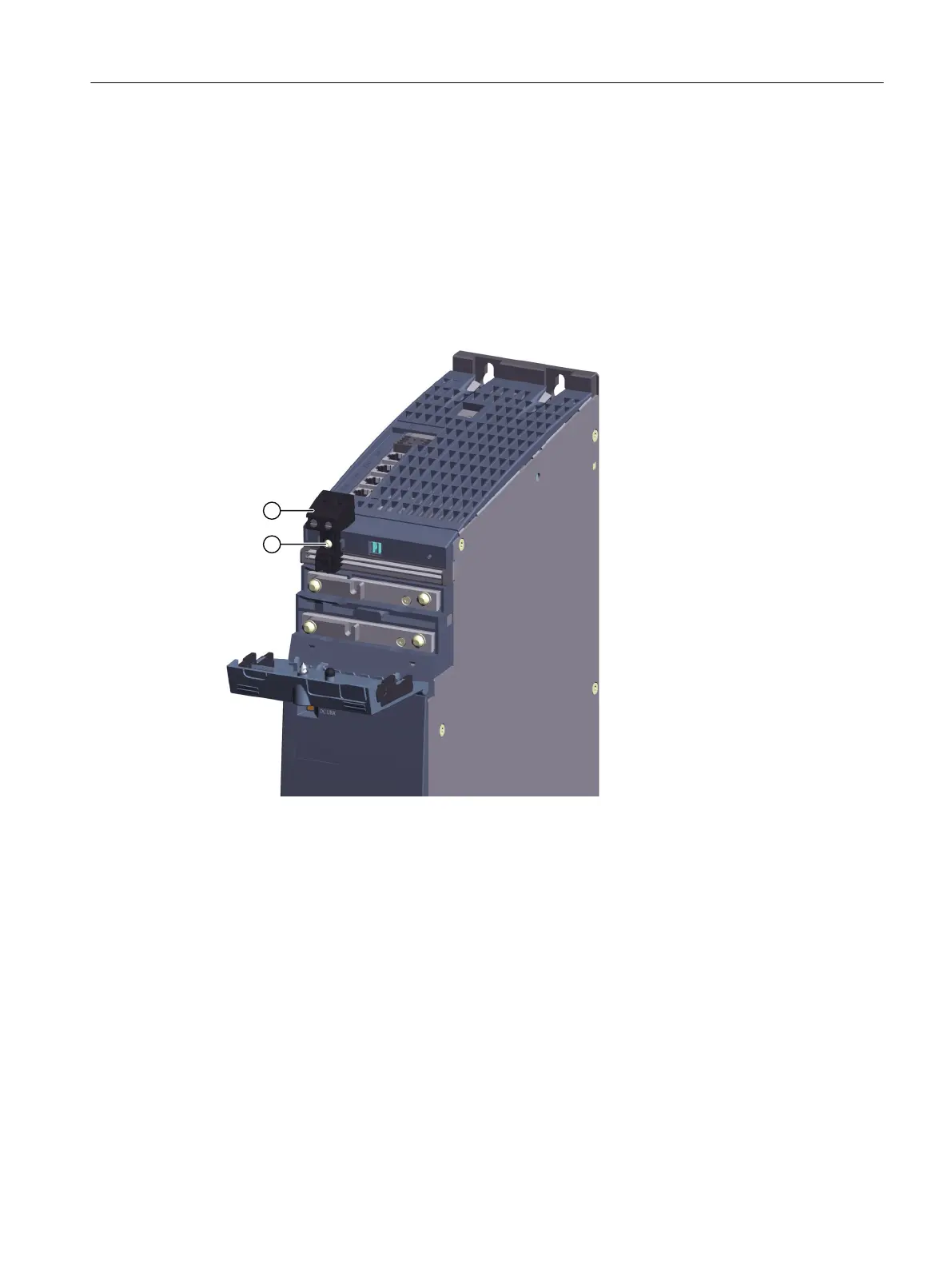

① 24V terminal adapter
② Screw for 󹪝xing
Figure5-7 Mounting the 24V terminal adapter
Proceed as follows to mount the 24 V terminal adapter:
1. Release and open the protective 󹪞ap of the component. Slotted screwdriver 1.0x5.5mm
2. Clip the 24V terminal adapter on to the 24V busbars.
3. Firmly attached the 24 V terminal adapter using the screw provided. Torx screwdriver TX 10.
Tightening torque: 0.8Nm (7lbfin)
4. Using pliers, break out the cutout in the protective 󹪞ap.
5. Close the protective 󹪞ap until you hear it snap into place.
6. Fasten the 24VDC supply cables to the 24 V terminal adapter. Slotted screwdriver
1.0x4.0mm. Tightening torque: 1.2…1.5Nm(10.6...13.3lbfin)
Mounting
5.424V terminal adapter
Booksize power units
Equipment Manual, 09/2023, A5E53307519B AA 91
