Simrad SU90 Installation Manual

Interfacingperipheralequipment
OpeningtheObjectInspector[sonarprogram]utility
Purpose
Thisprocedureexplain
howtoopenthesonar
program'sObject
Inspectorutilityonthe
ProcessorUnit.This
utilityiselsewhere
referredtoas“Object
Inspector[Sonar
program]”.
Procedure
1ClicktheSetuptab
ontherighthand
sidetoopenthe
Setupmenu.
2ClicktheTestbutton
toopentheSystem
Testmenu.
3ClicktheMessageBarbutton.
4ObservethattheMessageBarparameterdialogboxappearsatthebottomofthe
menueld.
5SelectAlwayson.
6Observetheappearanceofasmallhorizontalbaratthebottomofthedisplay
presentation.Ontherighthandside,afewbuttonsdisplaythenumberofwarnings,
errorsandalarmsthatarepresentlyactive.
7Double-clickonthemessagebarlineusingtheObjectbuttonontheOperating
Panel,orwithrightmousebutton.

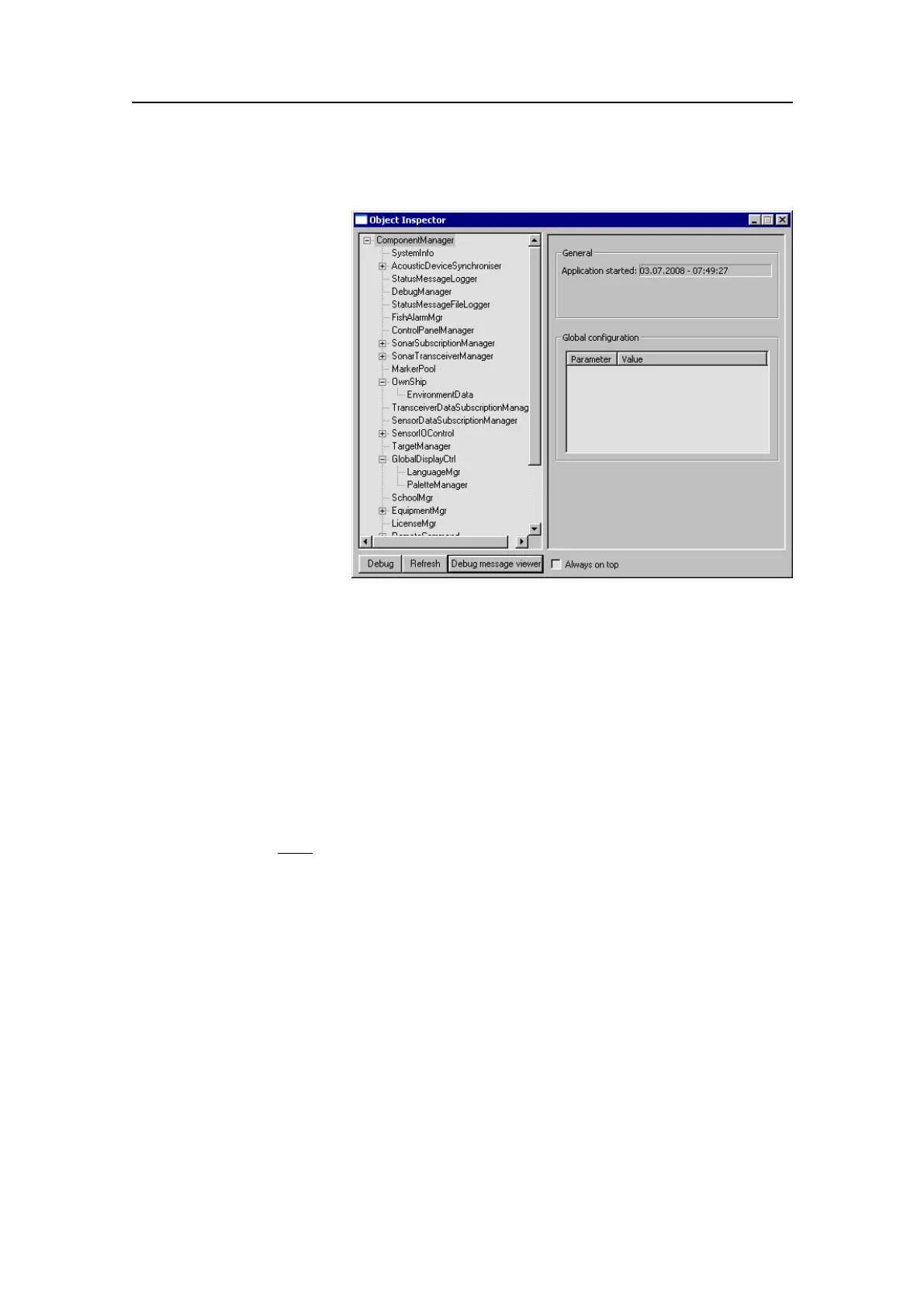

8ObservethattheObjectInspectordialogboxopens.
381293/A
133
