InstallingtheTransceiverUnit
3Weldthemountingbracketssecurelytothebulkhead.
[____]Ok

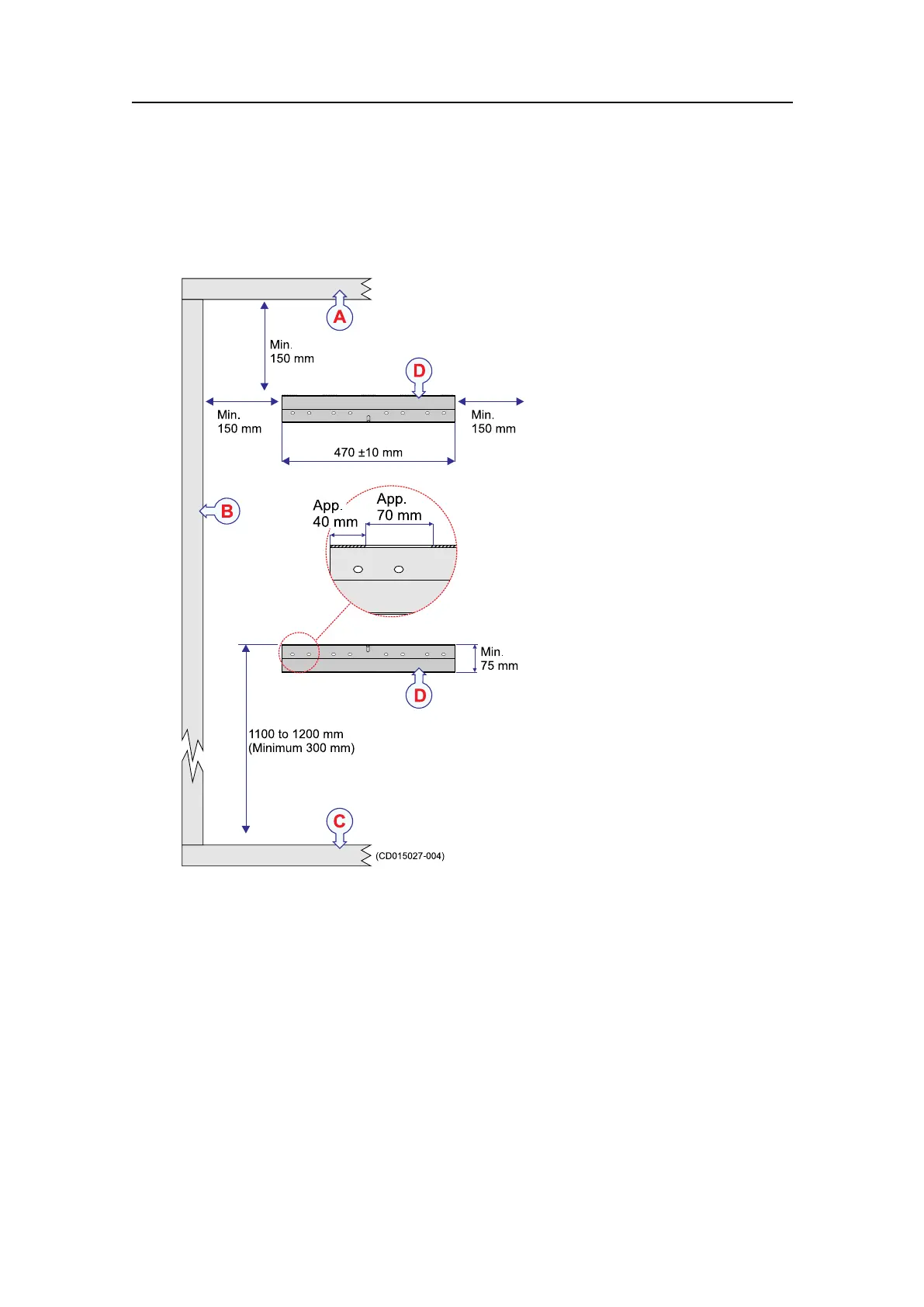

Installationofmountingbrackets(2)
ADeckhead
BBulkhead
CDeck
DAnglebarswiththreadedholesforshockabsorbers.Thesebarsaresupplied
bySimrad.
4UseachainfallorsimilardevicetolifttheTransceiverUnitintoposition.
[____]Ok
5Boltthecabinettothemountingbrackets.
Notethateightboltsareprovidedintheplasticbagfastenedtotheuppershock
absorber.
[____]Ok
381293/A
79
