VA Motion Controller Programming Manual

307

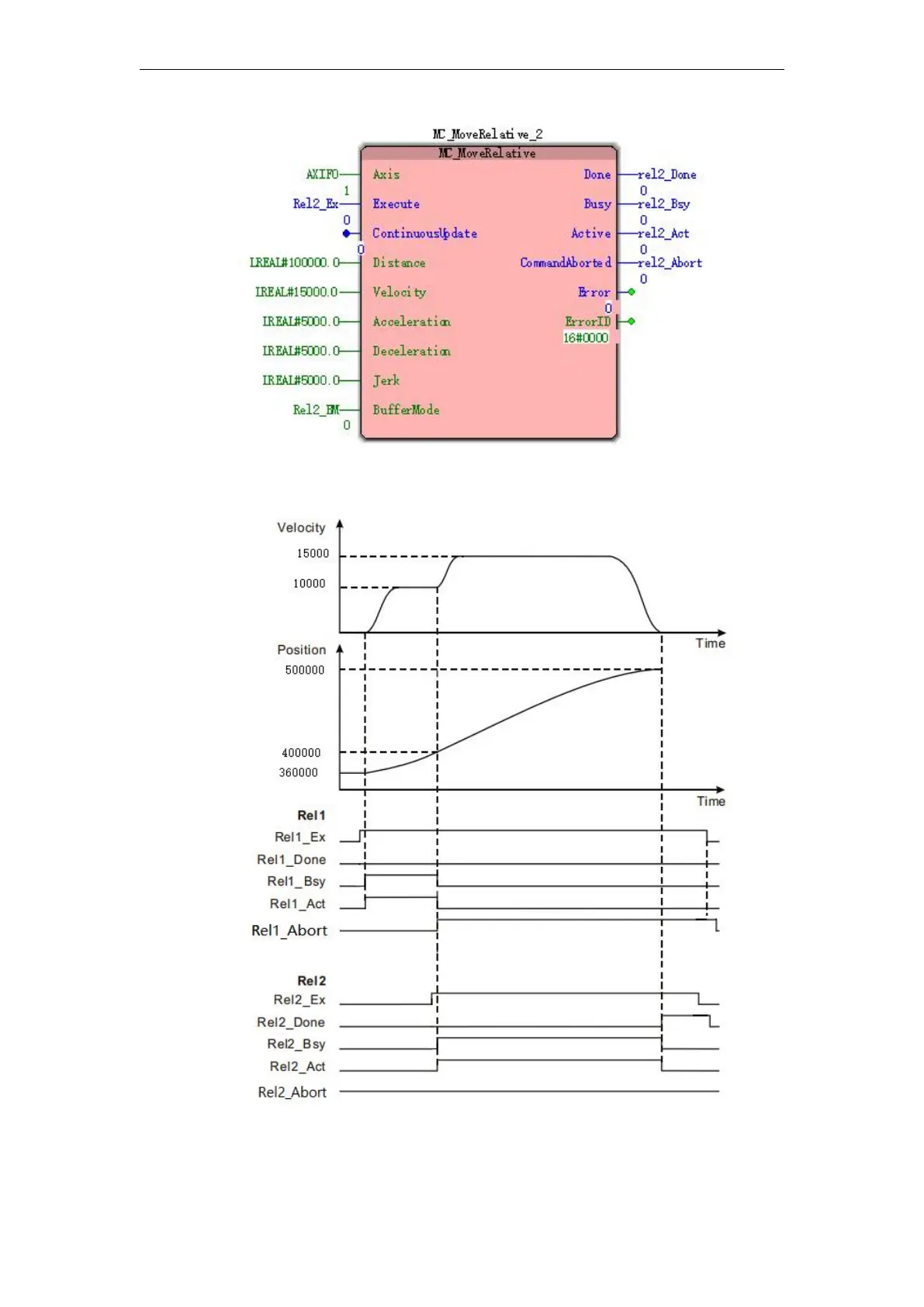

2, Motion curve and timing diagram

 When Rel1_Ex a FALSE to TRUE, the first MC_MoveRelative instruction starts

execution, the current position of the axis at this time is 360 000, the position of the target
