VA Motion Controller Programming Manual
322

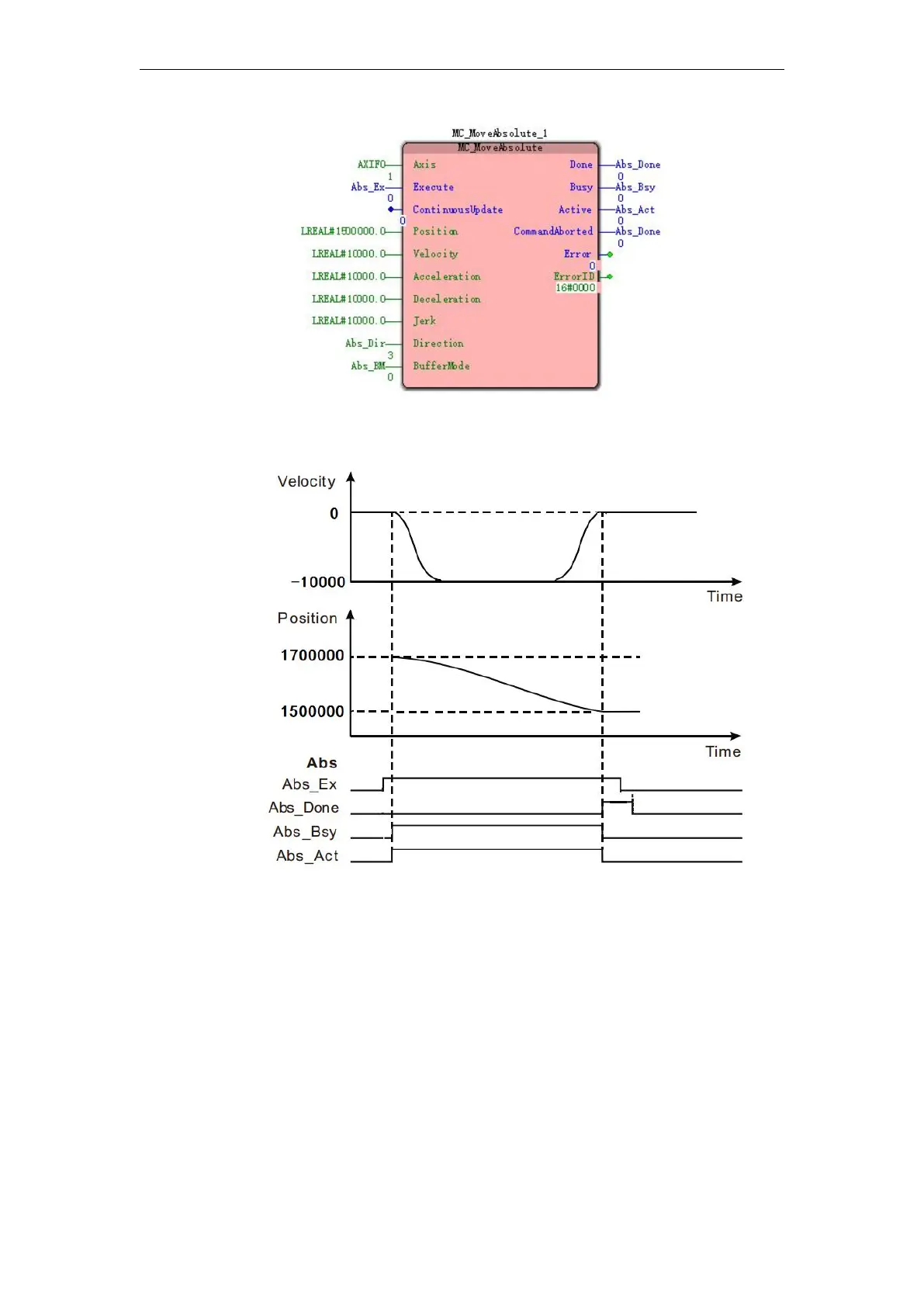

2, Motion curve and timing diagram
When the Abs_Ex MC_MoveAbsolute FALSE to TRUE to start the instruction
execution, the current position of the axis at this time is 1.7 million, 1.5 million target
position.
When the shaft moves to the 1500000, the instruction execution is completed.
