Vector VEC-VA Series User Manual

VA Motion Controller Programming Manual
350
Description:
1,The instruction to execute upon the Execute FALSE to TRUE. The instruction is being
executed, ExecuteWhen the TRUE to FALSE, this instruction performs no effect.
2, when the instruction is being executed, the Execute again by the FALSE to TRUE, the
instructions may be re-executed, the parameters can be revalidated The pin comprises
Deceleration, Jerk.
 Output parameters
name
Features
type of
data
Output
range
Done
The output parameter to
TRUE indicates instructions are
executed
BOOL
TRUE or
FALSE
Busy (execution)
This parameter indicates to
TRUE output instruction is
executed
BOOL
TRUE or
FALSE
The Active
(control)
When this parameter is
TRUE indicates output
command under the control shaft
BOOL
TRUE or
FALSE
CommandAborte
d (interruption)
The output parameter is
TRUE representing instructions
is interrupted
BOOL
TRUE or
FALSE
Error (error)
It represents execution of
the faulting instruction when the
output instruction is TRUE
BOOL
TRUE or
FALSE
ErrorID (error
code)
Error Error code when
execution instruction
WORD
-


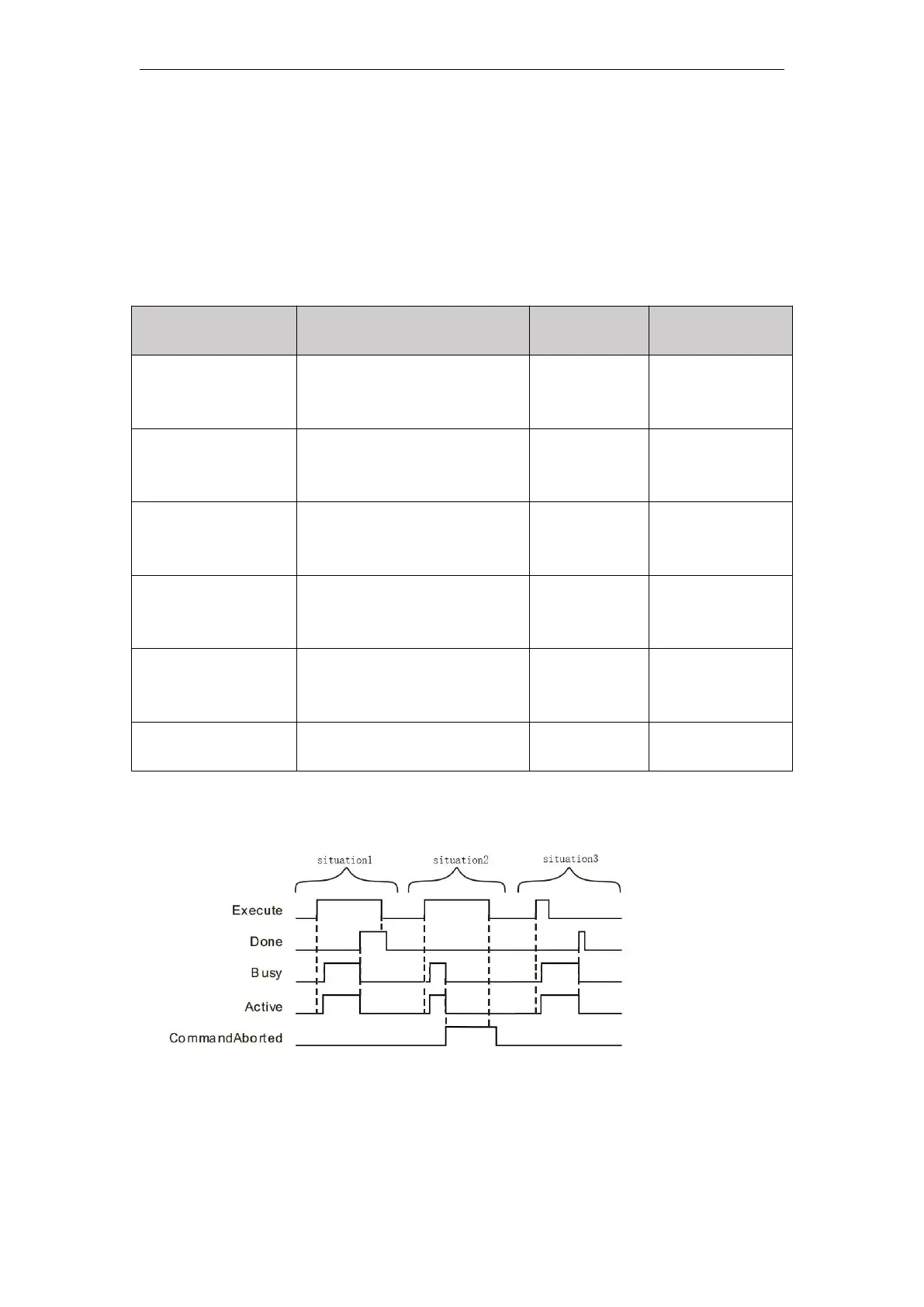

FIG timing variation output parameter

Case 1:When the Execute FALSE to TRUE, after a period at the same time becomes TRUE
and the Active Buys; when the position is reached, Done becomes TRUE, and the Busy
Active becomes FALSE, it is the Execute TRUE to FALSE after a period, Done becomes
FALSE.
