VA Motion Controller Programming Manual
471

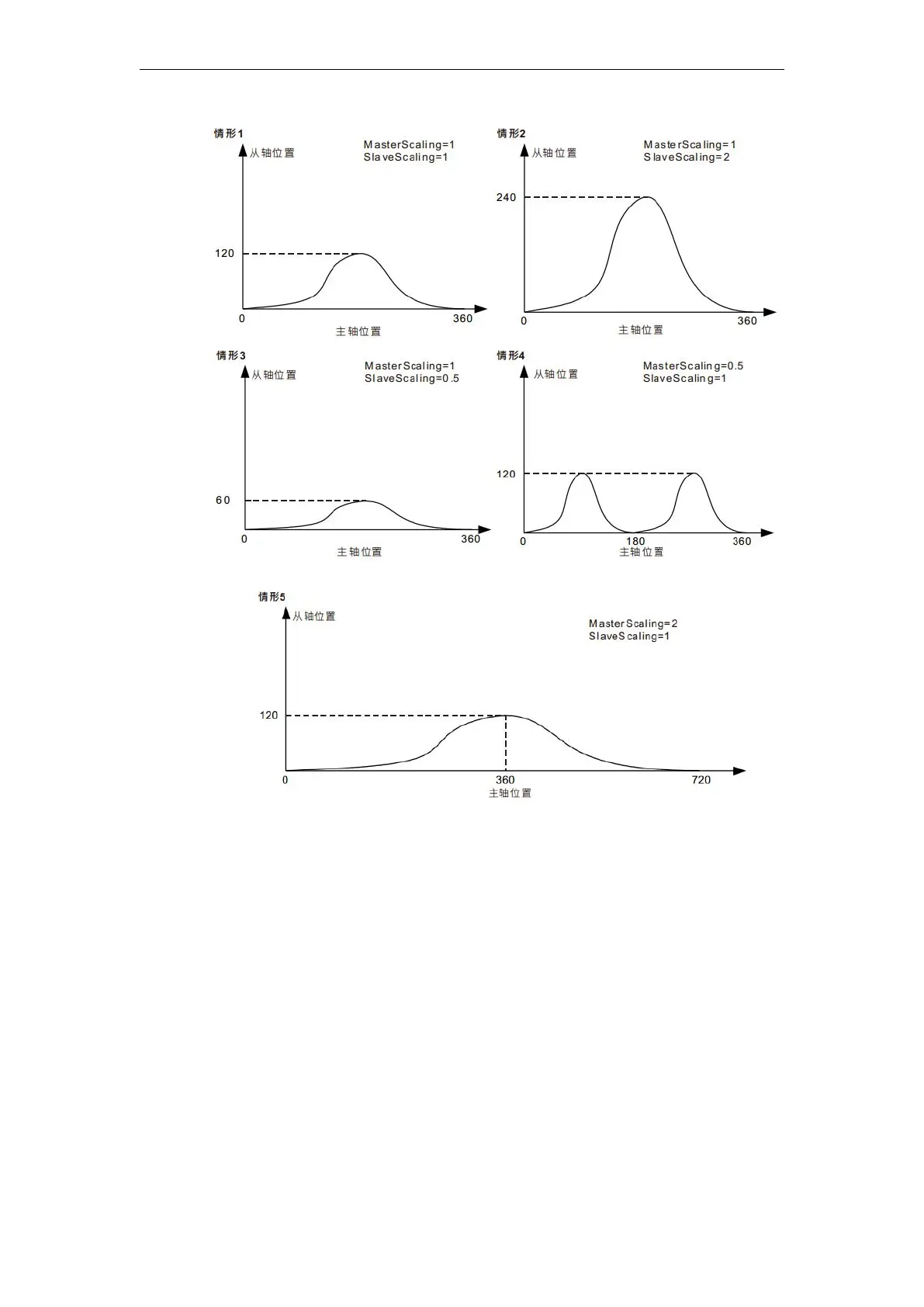

Case 1:When the main shaft from the zoom ratio is 1, the offset is zero, consistent with the
actual relationship between the cam and the pre-planned.
Case 2:When the spindle is a scale, zoom ratio from the shaft 2, from the primary offset of 0,
corresponding to the position of the spindle axis from the position to the
pre-planned times.
Case 3:When the spindle is a scale, the scale axis ratio of 0.5, a main axis offset from 0,
corresponding to the position of the spindle becomes a pre-planned position of 1/2
Slave axis.
Scenario 4:When the spindle zoom ratio of 0.5, the zoom ratio from the shaft 1, a main shaft
cam offset from 0, the corresponding position of the spindle axis from the
pre-planned position to 1/2. If from the perspective of the cam phase, the cam
phase of the spindle is preplanned 1/2, i.e., the cam shaft 360 goes from 180 cycles
(360 * 180 = 0.5), unchanged from the phase of the cam shaft.
Scenario 5:When the scale of the spindle 2, the zoom ratio from the shaft 1, a main axis
offset from 0, the corresponding position of the spindle axis from the position to
