VA Motion Controller Programming Manual
534

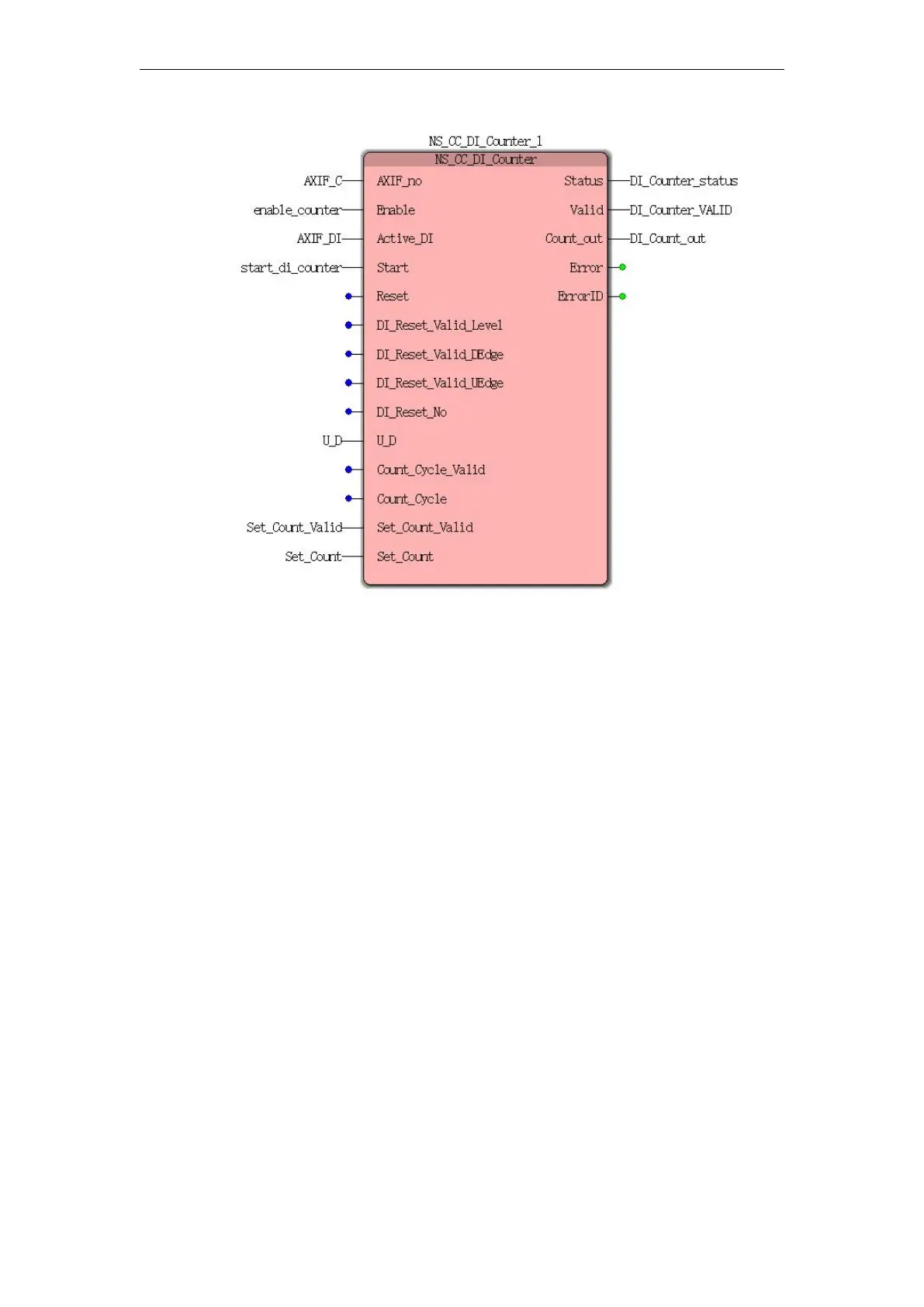

Case 1:When counter_enable a FALSE to TRUE, start_di_counter start permission from
FALSE to TRUE DI-speed counter, DI_Count_out display the current count of pulses. When the
change from FALSE to TRUE Set_Count_Valid variable, high-speed counter current value be
modified Count_out 1000, and 1000 remain, a TRUE when Set_Count_Valid variable becomes
FALSE when DI11 pulse is received, will continue to count the number of pulses on the basis of
1000 increments.
