VA Motion Controller Programming Manual
533
DI_Count_out
DINT
0
Case 1:When enable_counter from FALSE to TRUE, and held, start_di_counter start
permission from FALSE to TRUE DI-speed counter, a pulse to DI11, DI_Count_out display the
current pulse count is incremented, up to 1000 when DI_Count_out recounting is automatically
cleared.

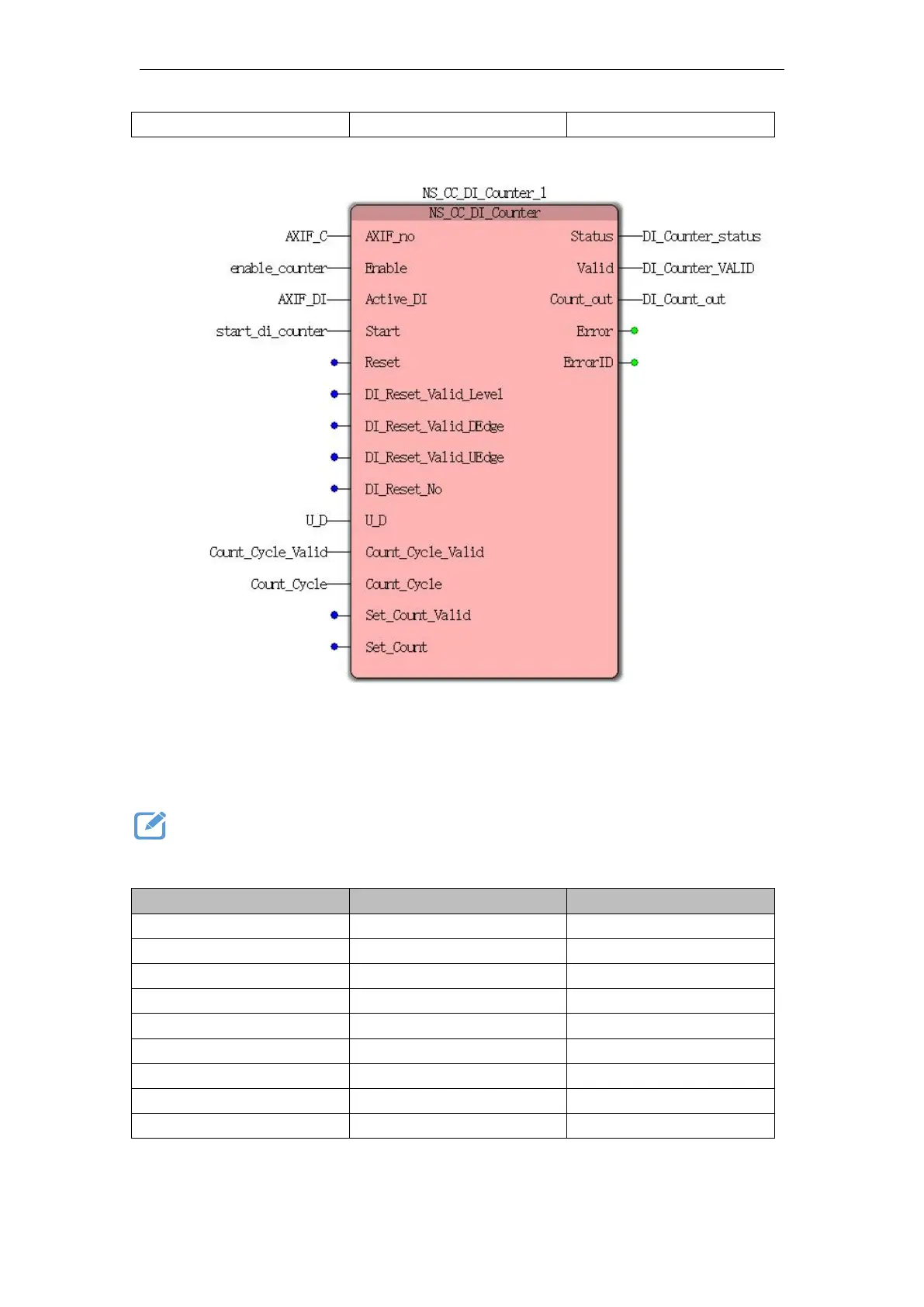

Demonstration program
Set the number of modes for carrying out high-speed counter DI
1. variables, and procedures
Variable name
type of data
The initial value
NS_CC_DI_Counter_1
NS_CC_DI_Counter
AXIF_0
WORD
0
enbale_counter
BOOL
FALSE
AXIF_DI
WORD
11
start_di_counter
BOOL
FALSE
U_D
DINT
1
Set_Count_Valid
BOOL
TRUE
Set_Count
DINT
1000
DI_Count_out
DINT
0
