Vector VEC-VA Series User Manual

VA Motion Controller Programming Manual
532
U_D
DINT
1
DI_Count_out
DINT
0
Case 1:When enable_counter from FALSE to TRUE, and held, start_di_counter start
permission from FALSE to TRUE DI-speed counter, DI_Count_out display the current count of
pulses. When the rising edge of DI di_reset_no specified, Count_out current pulse count value is
cleared.

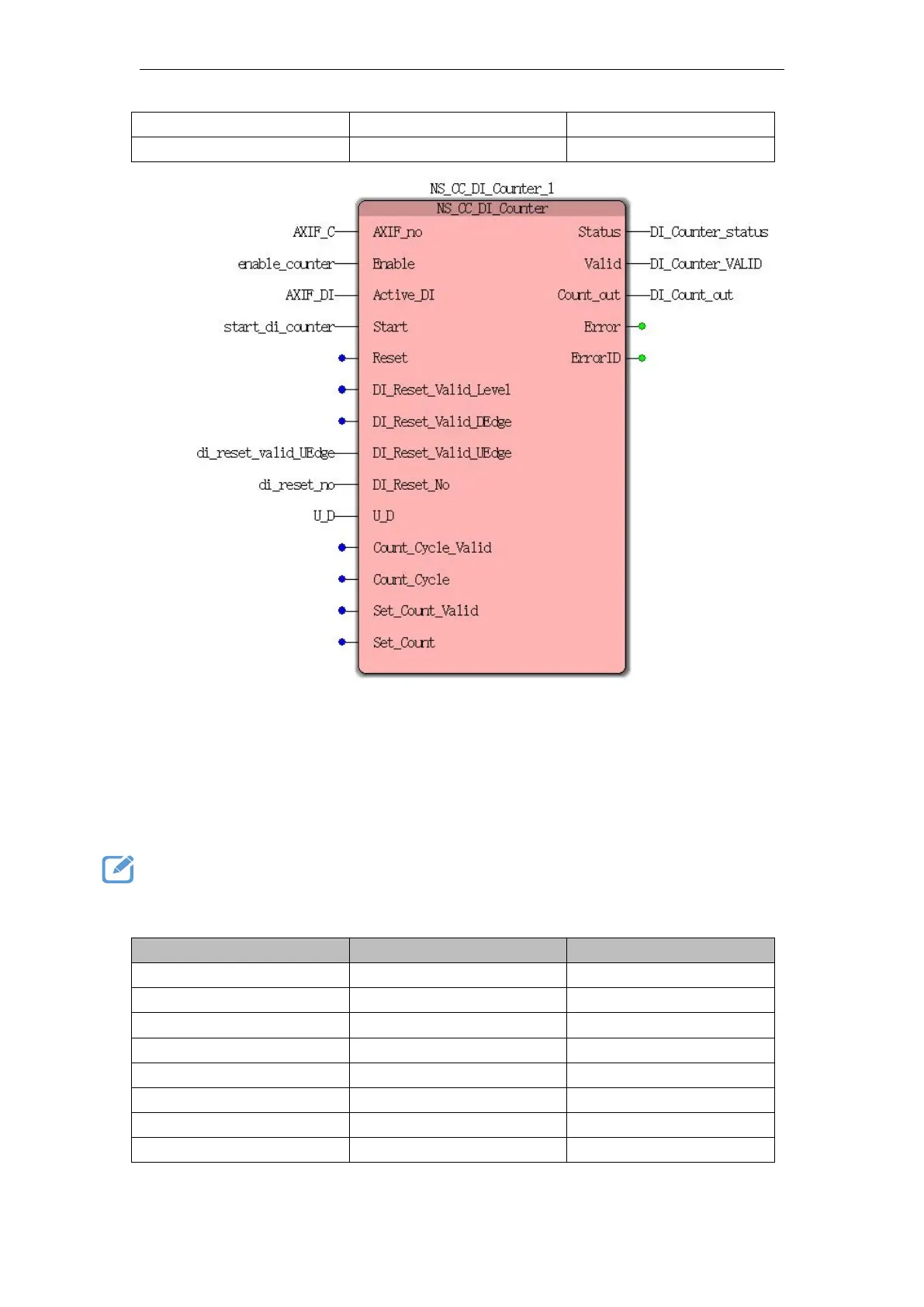

Demonstration program Ⅲ
Cycle-count mode for carrying out high-speed counter DI
1, variables, and procedures
Variable name
type of data
The initial value
NS_CC_DI_Counter_1
NS_CC_DI_Counter
AXIF_0
WORD
0
enbale_counter
BOOL
FALSE
AXIF_DI
WORD
11
start_di_counter
BOOL
FALSE
U_D
DINT
1
Count_Cycle_Valid
BOOL
TRUE
Count_Cycle
DINT
1000
