VA Motion Controller Programming Manual
531
NS_CC_DI_Counter_1
NS_CC_DI_Counter
AXIF_0
WORD
0
enbale_counter
BOOL
FALSE
AXIF_DI
WORD
11
start_di_counter
BOOL
FALSE
reset_di_counter
BOOL
FALSE
U_D
DINT
1
DI_Count_out
DINT
0

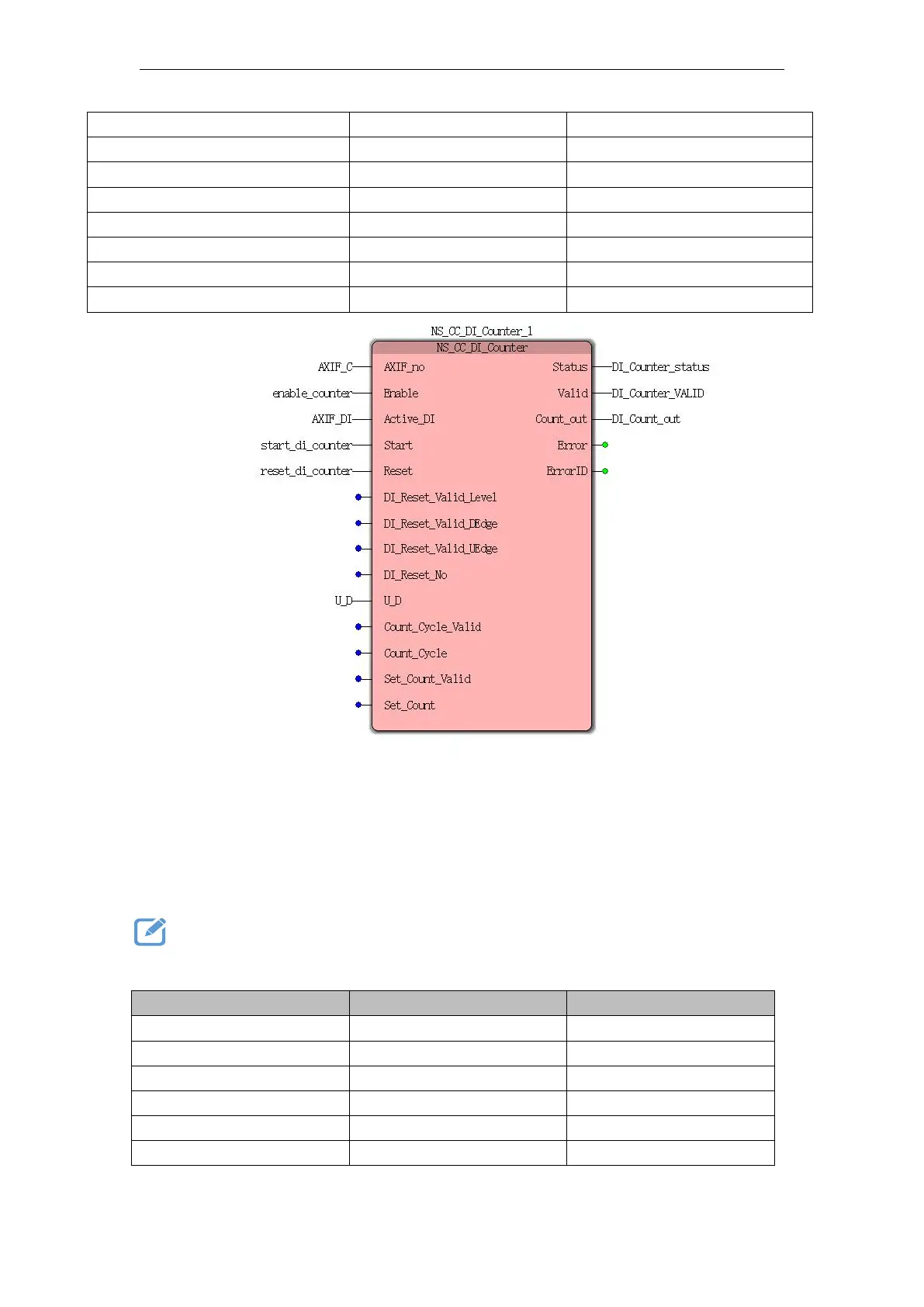

Case 1:When enable_counter from FALSE to TRUE, and held, start_di_counter start
permission from FALSE to TRUE DI-speed counter, DI_Count_out display the current count of
pulses. When reset_di_counter a FALSE to TRUE, Count_out display the current pulse count
value is 0, then the count pulse input DI, Count_out display the current pulse count remains at 0
when the Reset TRUE to FALSE, allowing counting resumes .
Demonstration program
Start and external variables DI DI perform high-speed counter reset
1. variables, and procedures
Variable name
type of data
The initial value
NS_CC_DI_Counter_1
NS_CC_DI_Counter
AXIF_0
WORD
0
enbale_counter
BOOL
FALSE
AXIF_DI
WORD
11
start_di_counter
BOOL
FALSE
di_reset_no
BOOL
0
