Vector VEC-VA Series User Manual

VA Motion Controller Programming Manual
603
3.1.3 NS_CC_CANopen_PDO_Comm(PDO process data
communication configuration parameters)
FB / FC
Explanation
Applicable model
FB

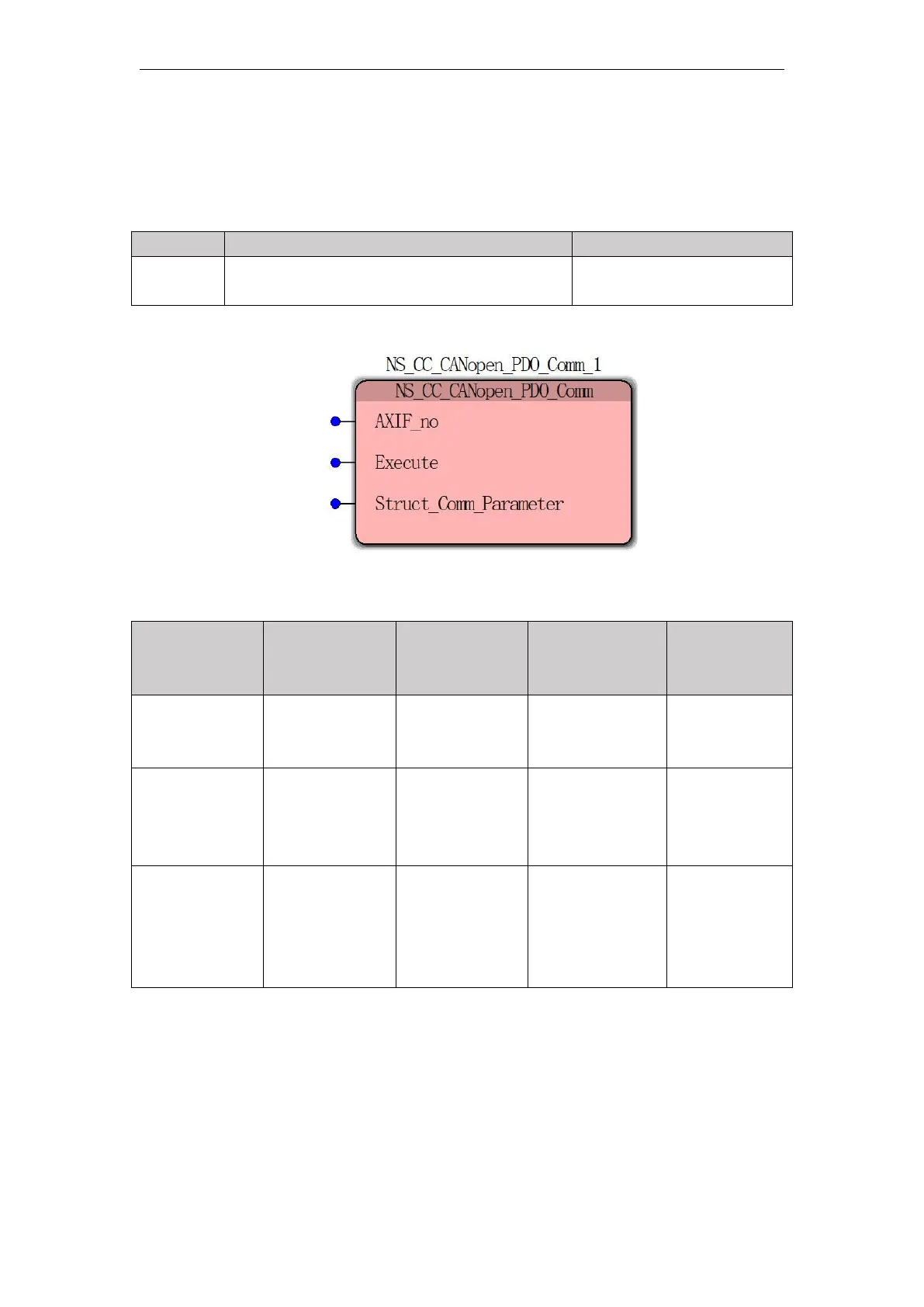

This command is used to configure the
communication parameters PDO process data

Input parameters
name
Features
type of data
Range
setting (default
value)
The
timing of the
entry into force
AXIF_no
(node  
number)
To control
node setting
instruction
WORD
1 to 16
Excute to
TRUE
Excute
(execute bit)
When
Excute is True,
the instruction is
executed
BOOL
TRUE or
FALSE (FALSE)
Excute to
TRUE
Struct_Com
m_Parameter
(structure
parameter)
Structure
parameters, see
the functional
description
format
ANY
Excute to
TRUE
 Function Description
1, the instruction must trigger the triggering edge of the module, it is not always Excute
TURE;
2, "Struct_Comm_Parameter" data structure as that defined in accordance with the contents
specified content DS301 protocol, defined after completion trigger module, i.e. a communication
parameter from the subject into the corresponding dictionary station, the communication
parameters corresponding to the object dictionary is "0X1400H ~ 0X14FF "or" 0X1800H ~
