Vector VEC-VA Series User Manual

VA Motion Controller Programming Manual
58

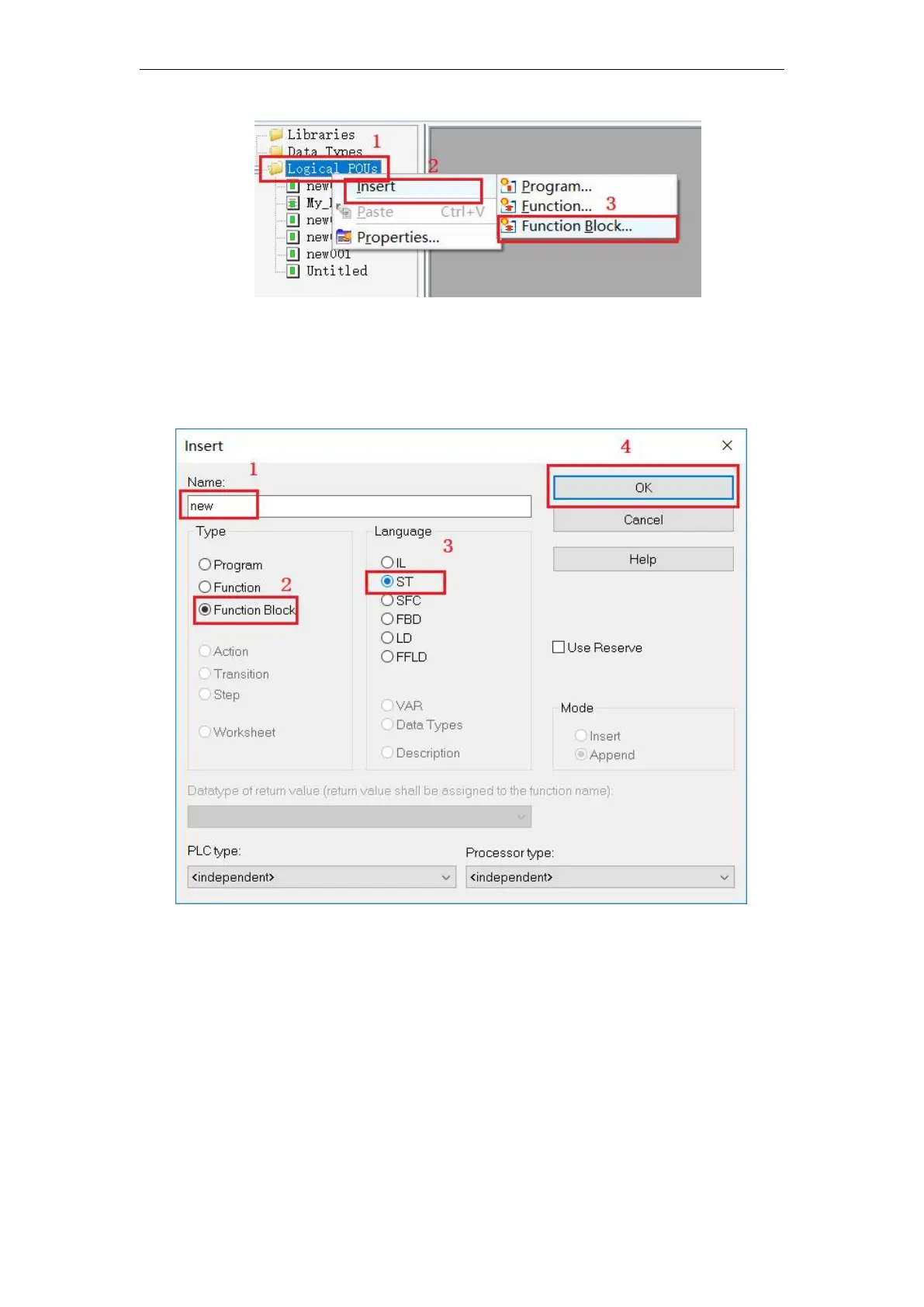

Pop up ADialog box, you want to create in this dialog box
FB
name, and used to develop
the type of programming language, here are the
MOVE _INT
, function blocks and
ST
, click OK,
then enter the
ST
language programming of Figure Shown .
The
MOVE
function block created by has input pins
EN, IN, INT1, INT2
with output
pins
ENO,
and
INT3
. This function block is used in the
LD
prograMCreated
earlier . Using
ST
create the same program, to establish a first variable
worksheet
MOVE_INT
variables used in the function block comprises a variable name, data type,
pin functions return after completing
ST
programming interface for programming as
follows as FIG illustrated
