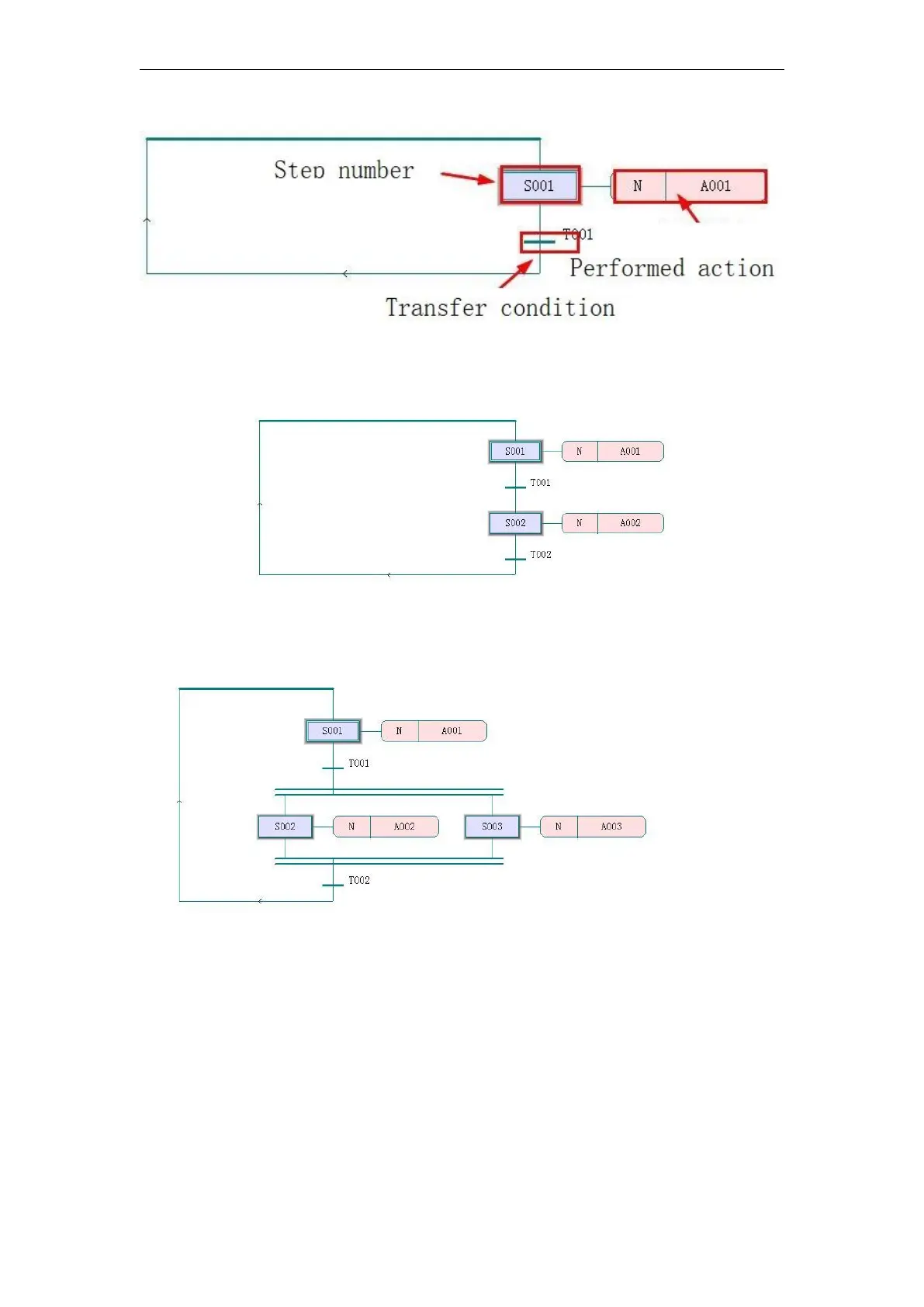

( 3 ) In the above figure, each“ step ”,“ conversion ”and“ action ”have unique names.
Then, click “ convert ” T00 1 in the above figure , and then click “ create step
conversioNSequence ” . in the following step adds a " step " S00 2 , as shown.
(
4
) Click " Step "
S002
, then click " Insert
SFC
Branch " , then insert a branch on the right
side of " Step "
S002
, the branch has a " Step "
S002
, as shown
Repeat the operation described on the final traffic light
SFC
function diagram as shown
To Next Page
