VA Motion Controller Programming Manual
63

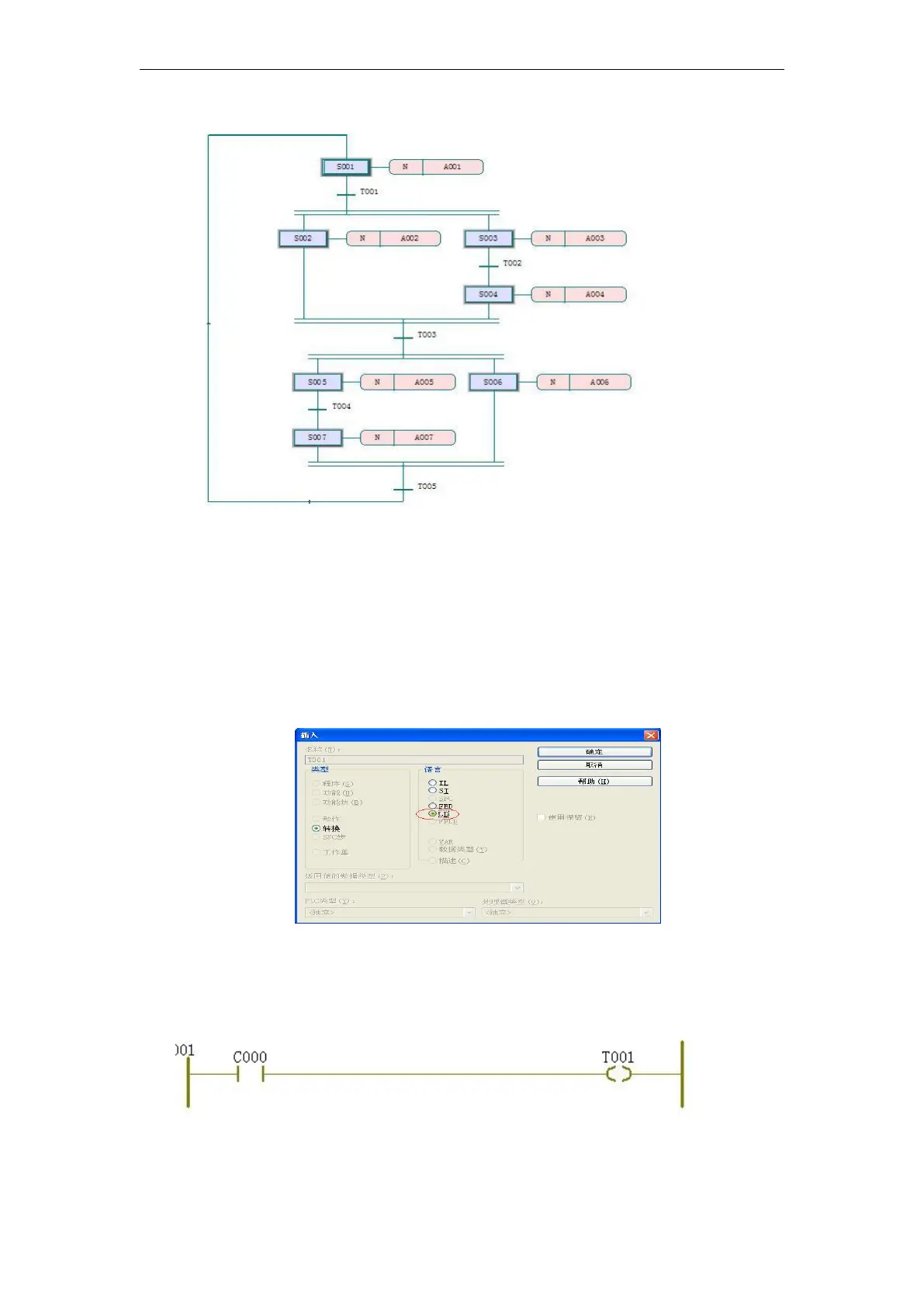

At this point, aNS
FC
network is created, in which
S001
is the initial step , the user can use the
initialization data, such as the counter to clear the initial value and other operations, and then
according to the requirements of the "step", "conversion" to write code and The setting of the
property.
1
) Conversion condition
:
Double-click " Convert "
T 001
and select
LD
programming
language in the pop-up dialog box.
2
) Click OK to enter the programming of
T001
, insert a network in the editing area, and
double-click the variable name of
C001
. The variable name of the coil is changed to
T001
, as
shown below.
This conversion condition is to start the
SFC
program because " step "
S001
is the starting step
