4. Diagnostics
The selected test pattern is started on the HDSDI board and the video path cab be tested. The number
of error counts since the last clear action are indicated in the table (7). This table is not updated if
continuous update is not checked.
For a continuous update of this table, check the checkbox in front of Continuous update (8).
To clear (reset) the error counters, click on Clear.
To remove the test pattern again, tip on Test pattern and select the test pattern again or tip on Clear
pattern.

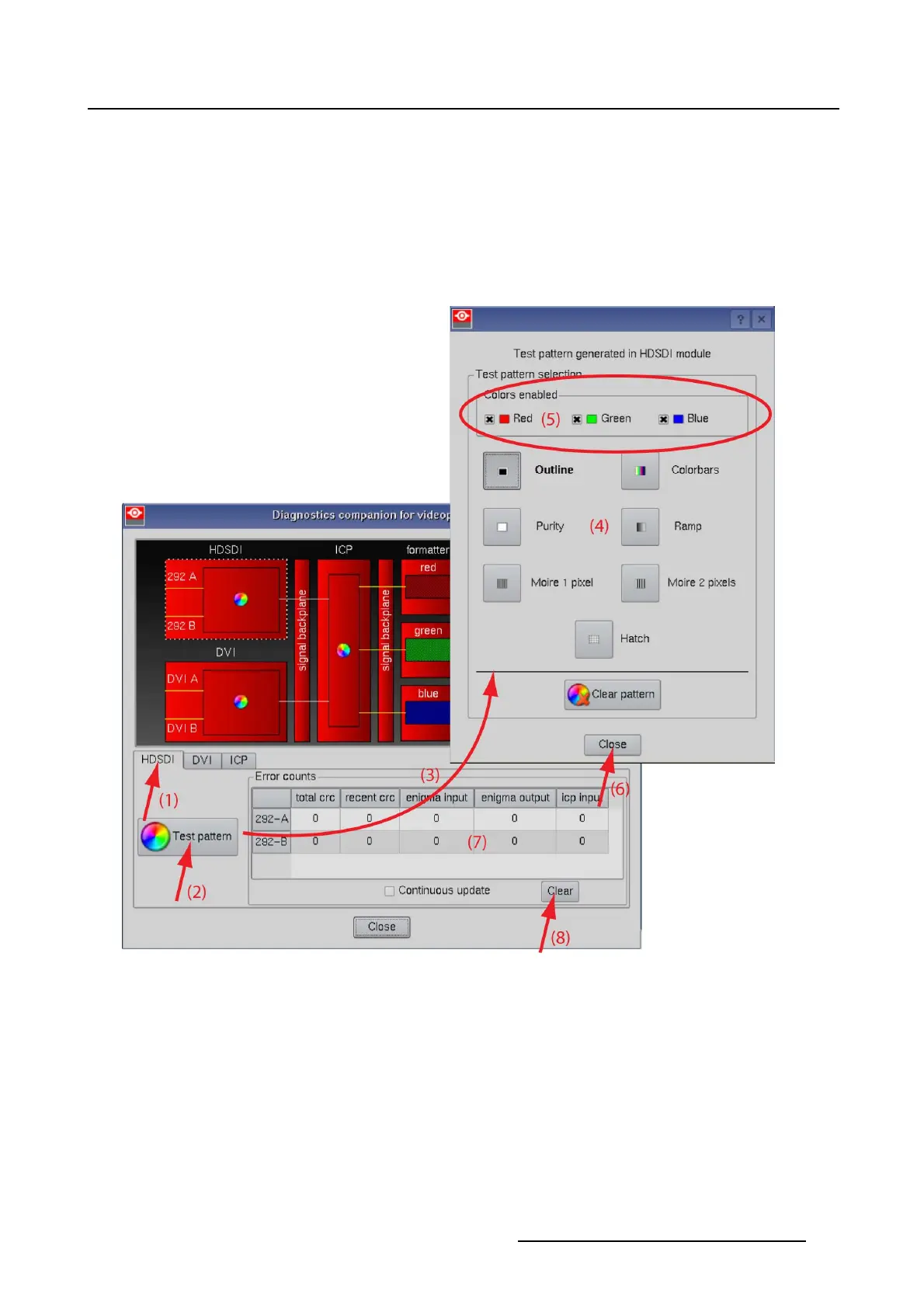

Image 4-16
HDSDI video path test
4.3.1.3 Display a DVI test pattern
How to display
1.TiponthetabpageDVI (1). (image 4-17)
2. Tip on Test pattern (2).
The test pattern window opens (3).
3. Select a test pattern by tipping on one of the short cut keys (4).
4. Enable the desired colors by checking the corresponding check box (5).
