5. Installation
also necessary to reach the maximum light output. Depending on the used lamp house, these alignments
can be done manually on the lamp house itself or motorized by tipping on the motor keys in the lamp
alignment menu.
5.3.2 Lamp light output history
Visual presentation
The current measured value is indicated on top of the window together with the minimum and maximum
values.
The graph gives an overview of the measured values in the time.

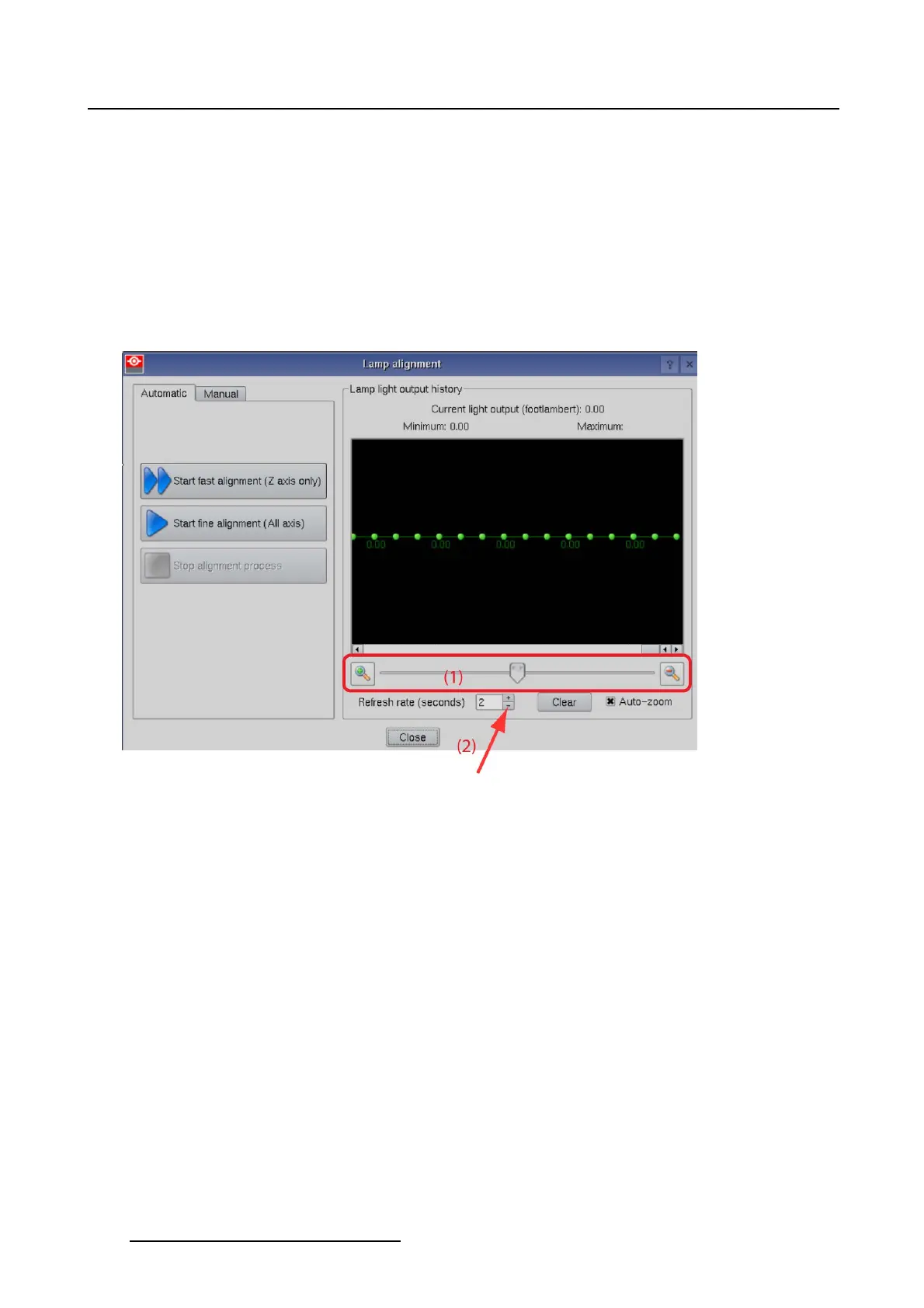

Image 5-10
Zoom in / zoom out / Auto zoom
A zoom in or zoom out (1) on the graphic preview is possible via:
• the zoom in or zoom out buttons.
• the slide between both zoom buttons. Move the slider to left or to the right to zoom in or out.
Auto zoom can be activated just by checking the check box. The graphic preview will zoom automatically
to fit inside the window.
Refresh rate
The refresh rate (2) is the time between to updates of the preview (2 measurements). To change this
refresh rate, tip inside the input box next to Refresh rate and enter the desired value with the keyboard or
tip on the up down control of the spin box until the desired value is reached.
Clear graphic
The current preview of the graphic can be cleared.
Click on Clear.
128
R59770488 COMMUNICATOR TOUCH PANEL 06/06/2012
