Barco DP2K Series User Manual

5. Installation

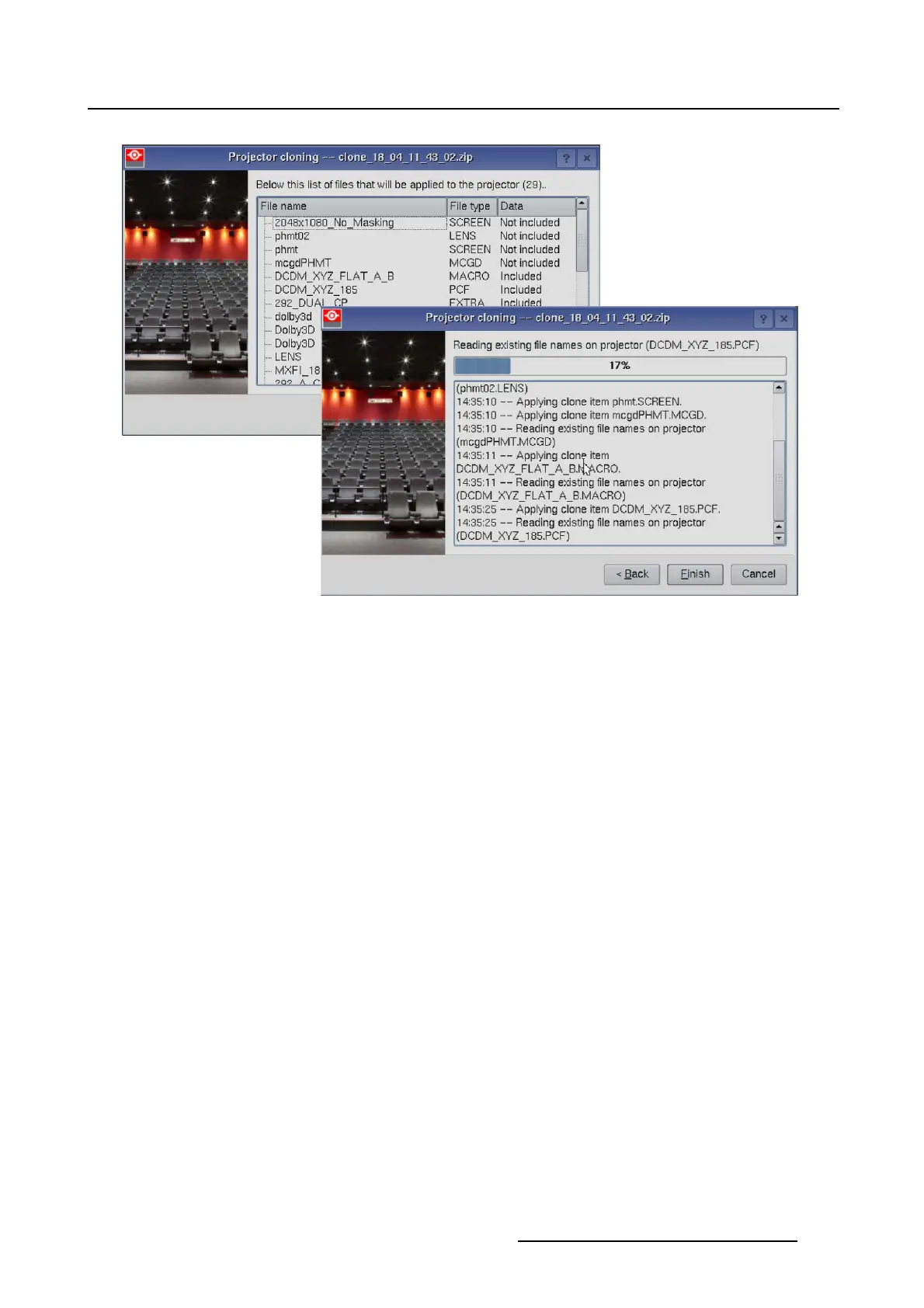

Image 5-59
Restore clone file
5.9.6 Lens selection
What must be done?
The software must know the article number of the used lens in the current installation so that it can enter
the correct lens parameters.
How to enter the lens
1.WhileintheAdvanced tab page, tip on Lens parameters (1). (image 5-60)
The Lens parameters window opens (2).
2. Tip on Select (3).
The Lens selection window opens (4).
3. Tip on the article number (5) of the current installed lens and tip OK (6).
The Lens p arameters window returns with the selected article number filled out (7).
4. Tip Close to enter the lens parameters (8).
R59770488 COMMUNICATOR TOUCH PANEL 06/06/2012
181
