2. Controls
Image 2-10

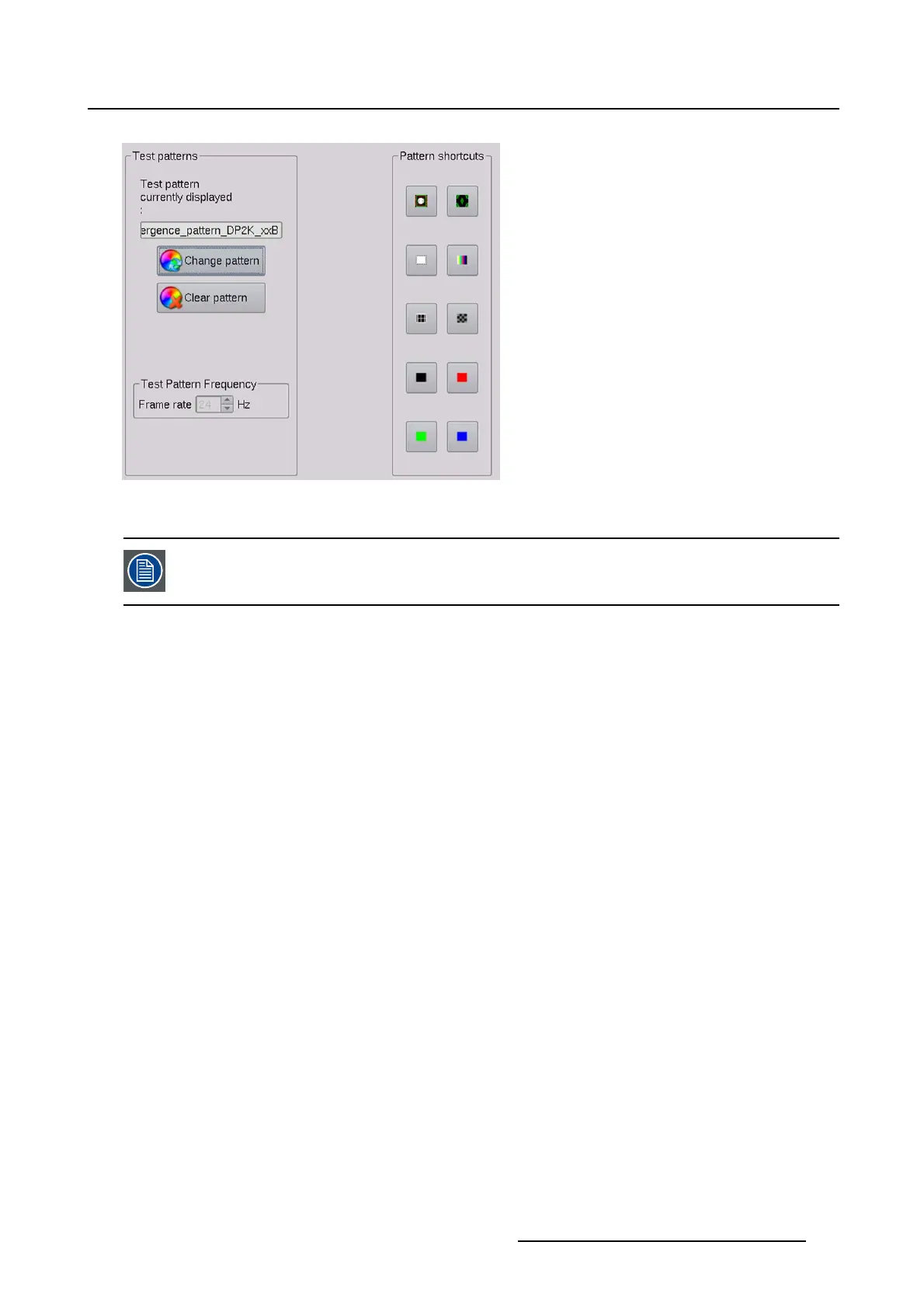

Test pattern displayed
When a convergence test pattern is on, color correction is bypassed.
2.2.2 Clear the projected test pattern
Clearing any selected pattern
1. Click on Clear pattern. (image 2-11)
A warning message will be displayed to indicate that any projector configuration changes made while
a pattern was enabled are not saved, and will be lost when clearing the pattern (except resizing and
masking). Settings will be set back to the original settings as before the pattern was selected. Settings
on resizing and masking will remain active. If you want to save these configuration settings save them
first in a file (via the file manager). (image 2-12)
The pattern will be removed from the screen.
2. Do you want to save the settings ?
If yes, Click No, cancel this action and continue with saving procedure in File manager.
If no, click Yes.
A remove test pattern message will be displayed. (image 2-13)
