5. Installation
5.2.3 Lamp output mode
5.2.3.1 Target set up for Normal mode
How to setup
1. Tip on the radio button next to Normal Mode.
The mode selection pane changes to the Normal mode parameters (image 5-6)
2. Adjust with the slide bar until the desired lamp power is obtained.
Or,
tip on the up down control of the spin box until the desired value is reached
Or,
tip inside the text box and enter a new value with the keyboard.
The Current lamp output and Lamp current pane will change accordingly.

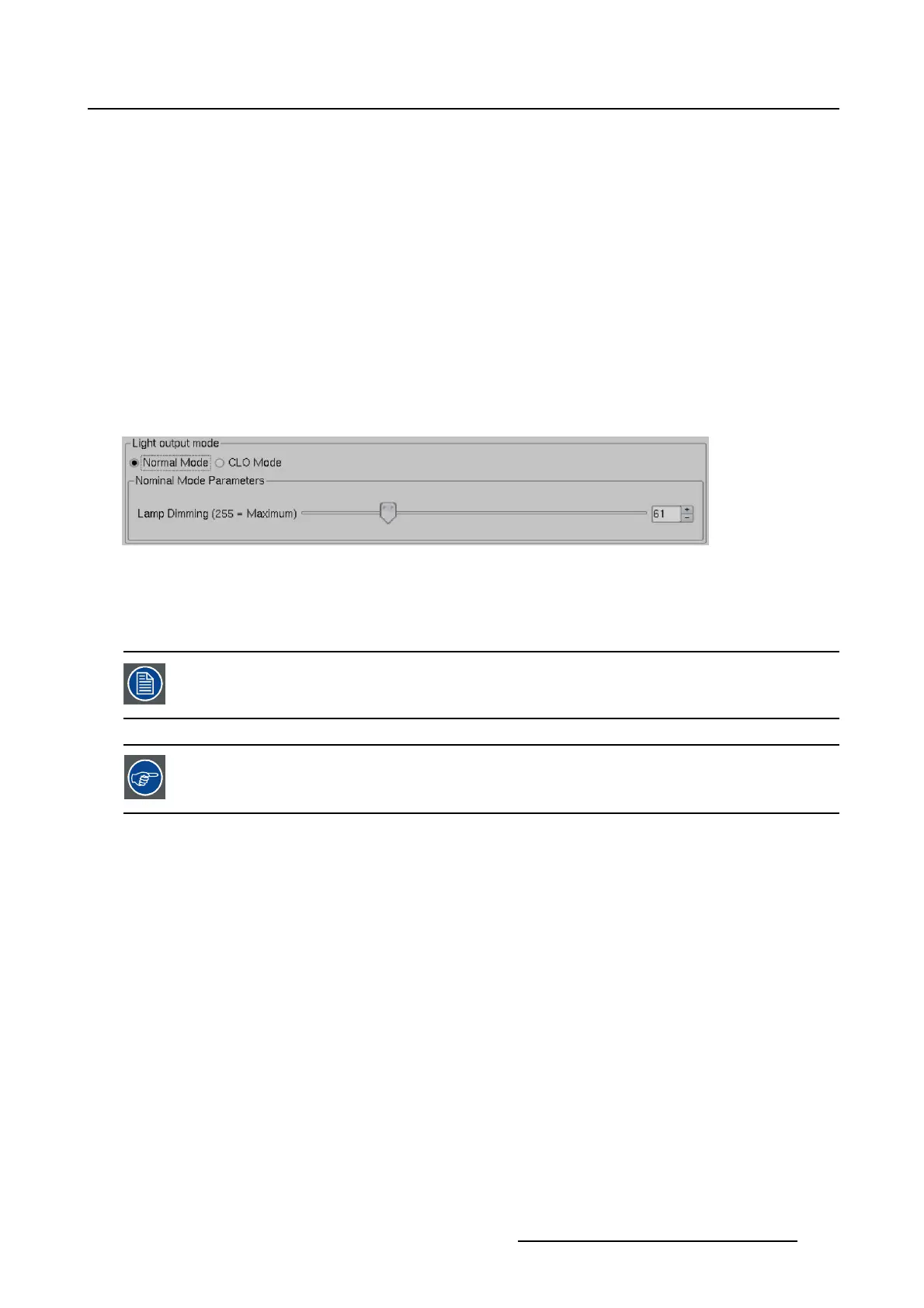

Image 5-6
Light output, normal mode
5.2.3.2 Target set up for CLO mode
Target set up for CLO mode is lens dependent.
CLO mode is only available when a valid CLO key is installed.
How to setup
1. Tip on the radio button next to CLO Mode. (image 5-7, image 5-8)
The mode selection pane changes to the CLO mode parameters.
2. Tip on the up down control of the spin box until the desired target value is reached.
3. Tip on Set target now.
The lamp power will change accordingly between maximum and minimum until the entered light output
is reached each time the lamp is switched off and is ignited again.
When the entered value is to high, the lamp power goes to its maximum. When the value is to low, the
lamp power goes to its minimum.
