2.1 Presets
2.1.1 Introduction
Overview
Depending on the setup, the user interface can have 5 preset pages. The first page contains 6 presets
and is equal to the button on the projector itself. The next pages have each 8 presets. After the last preset
is defined and there are still full blank preset pages, these pages will not be displayed in the user interface.
To each button, a macro can be associated. When a macro is associated to this button, the name of
the associated macro is indicated in the input field next to the button. Advanced users can change the
association to other macros and these users have also the possibility to edit macros and to create new
macros.
Two permanent preset buttons are always on top of the preset pages. These permanent preset buttons
are for :
• lamp on/off.
• dowser open/close.

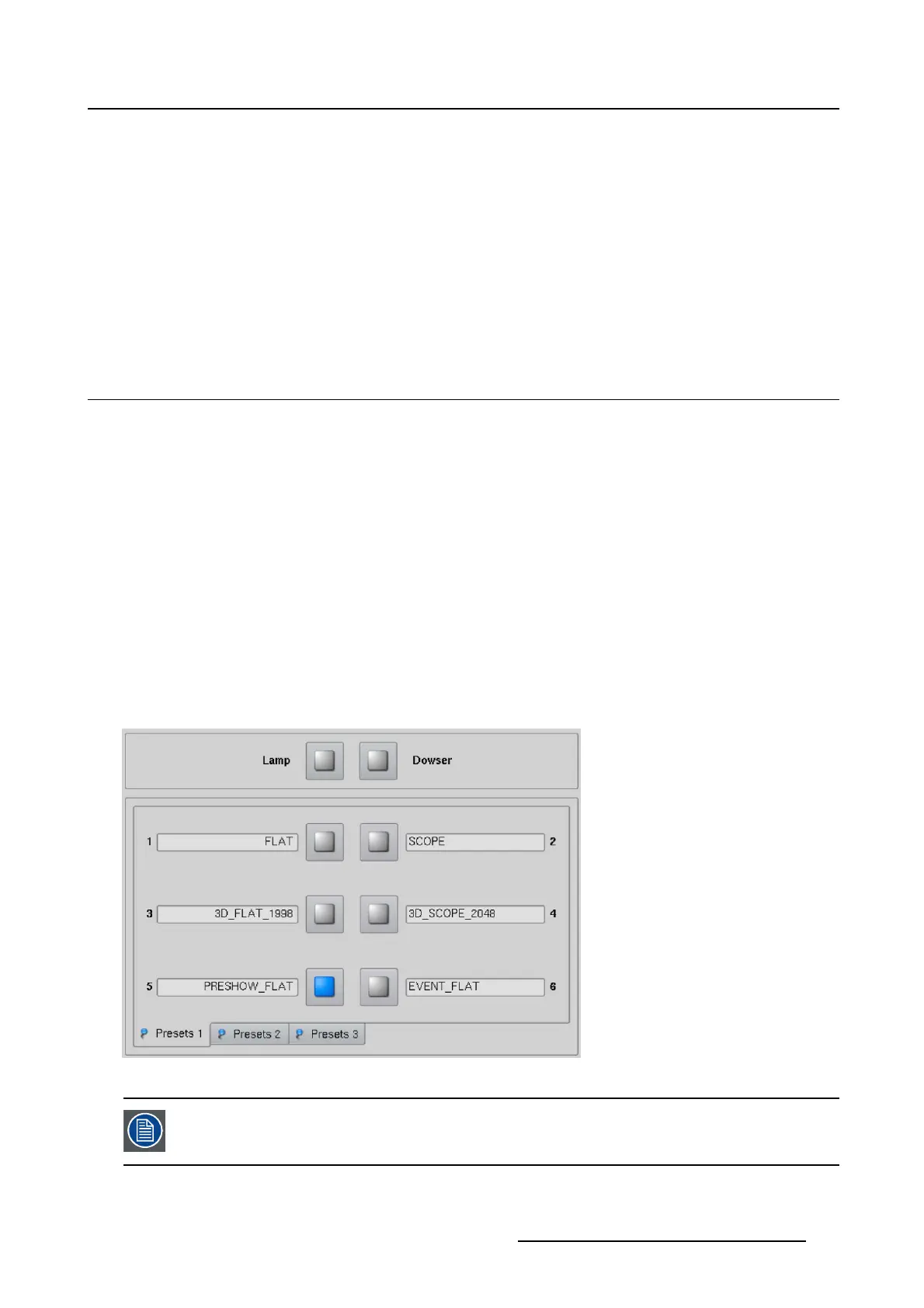

Image 2-1
Once the preset button is tipped, the preset tab page of the last selected button is dis-
played.
