4. Diagnostics
5. Tip Close (6).
The selected test pattern is started on the DVI board and the video path cab be tested. The number
of error counts since the last clear action are indicated in the table (7). This table is not updated if
continuous update is not checked.
For a continuous update of this table, check the checkbox in front of Continuous update (8).
To clear (reset) the error counters, tip on Clear.
To remove the test pattern again, tip on Test pattern and select the test pattern again or tip on Clear
pattern.

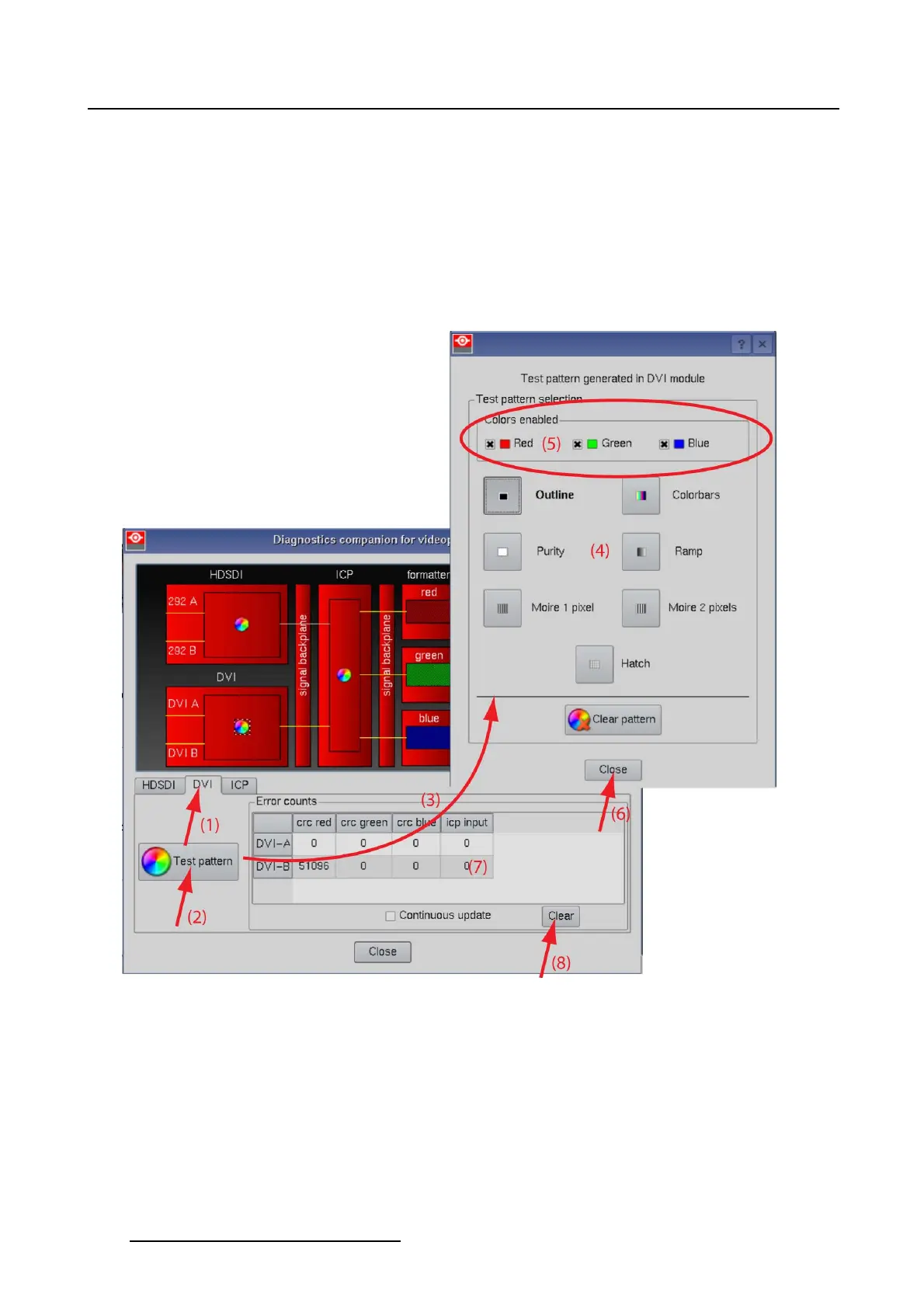

Image 4-17
DVII video path test
4.3.1.4 Display a ICP test pattern
How to display
1. Click on the tab page ICP (1). (image 4-18)
2. Click on Test pattern (2).
The test pattern window opens (3). The same functions are available as in Control → Test patterns.
For more information on activating, changing or clearing a test pattern, see "Test patterns", page 19.
100
R59770488 COMMUNICATOR TOUCH PANEL 06/06/2012
