2. Controls
2.4.2.3 Connection options
Updating

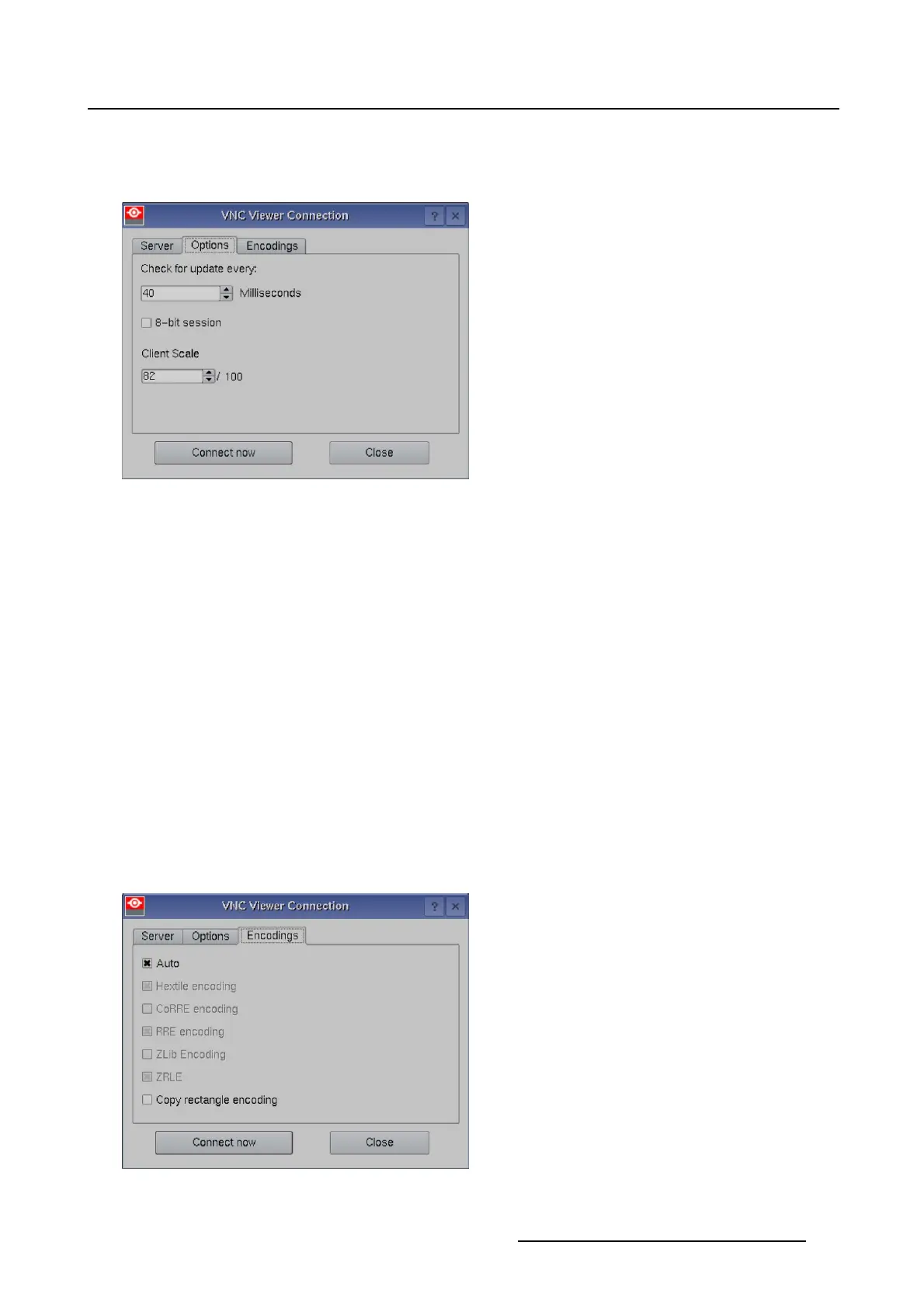

Image 2-22
Server properties, options
View at client side will be updated with the time set in Check for updates every.
Enter the scale value which must be used at the client side.
Color pallet
When 8-bit session is checked, only 8 bit color are transferred from the server to the client and the server
display is shown as an 8 bit color display at the client side. This will reduce the necessary bandwidth for
the communication.
When not checked, full colors are used to reproduce the server display at the client side.
Scaling
The server display will be displayed on the touch panel in a window of 540 x 400 pixels.
The client has the possibility to scale the server display so that it is shown as a full display or as a display
with scroll bars.
2.4.2.4 Encodings
Overview
Image 2-23
Server properties, encodings
R59770488 COMMUNICATOR TOUCH PANEL 06/06/2012 29
