4. Diagnostics
Actions
To clear a service door tamper only. Will only be accessible when the Service door tamper is active.
Tip Yes to clear the tamper.

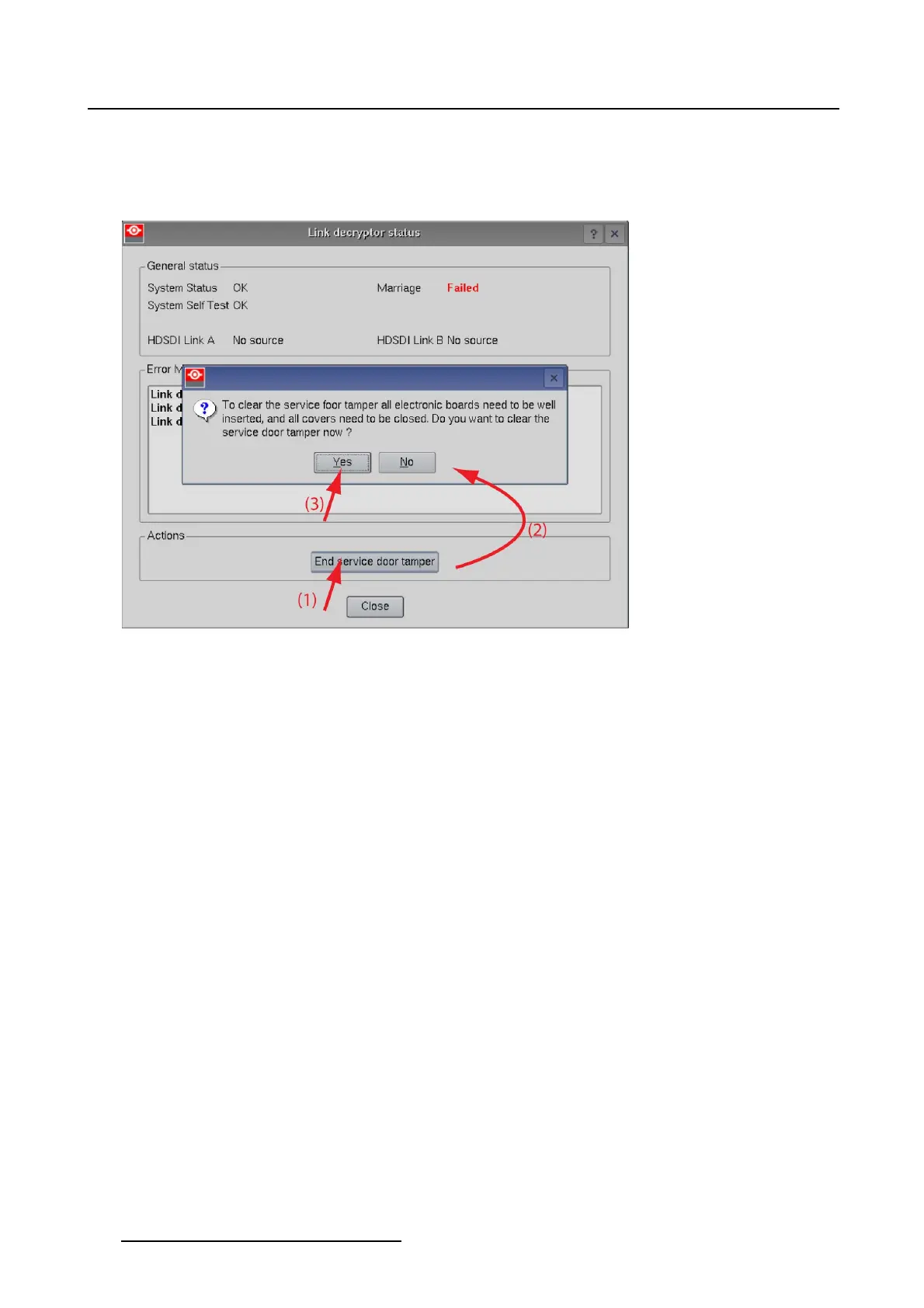

Image 4-6
Clear tamper
4.1.5 Diagnostics about other electronics
Temperatures
When one of the temperatures are out of speci
fication, the indication will be in red.
To see the maximum allowed temperature and the maximum warning and minimum warning temperature,
click on the ’+’ in front the item. The tree expands and shows for the selected item the 3 values.
90
R59770488 COMMUNICATOR TOUCH PANEL 06/06/2012
