3. Configuration
4. Select the source type
The following sources are possible
Standard HD-SDI board Quad-SDI board
2K 2K
2K-3D 2K-3D
2K-HFR 2K-HFR
4K 2K 3D-HFR
4K
5. Select the port to which the source is selected.
The following ports are possible:
For a standard HD-SDI board : A, B, A+B
Foraquad-SDIboard: A,B,A+B,A+B+C+D
6. Set general parameters for the selected source and port. Tip on the corresponding drop down and
select the desired setting.
For more information about sources and parameters, see page 271.
7. Tip Close (12).

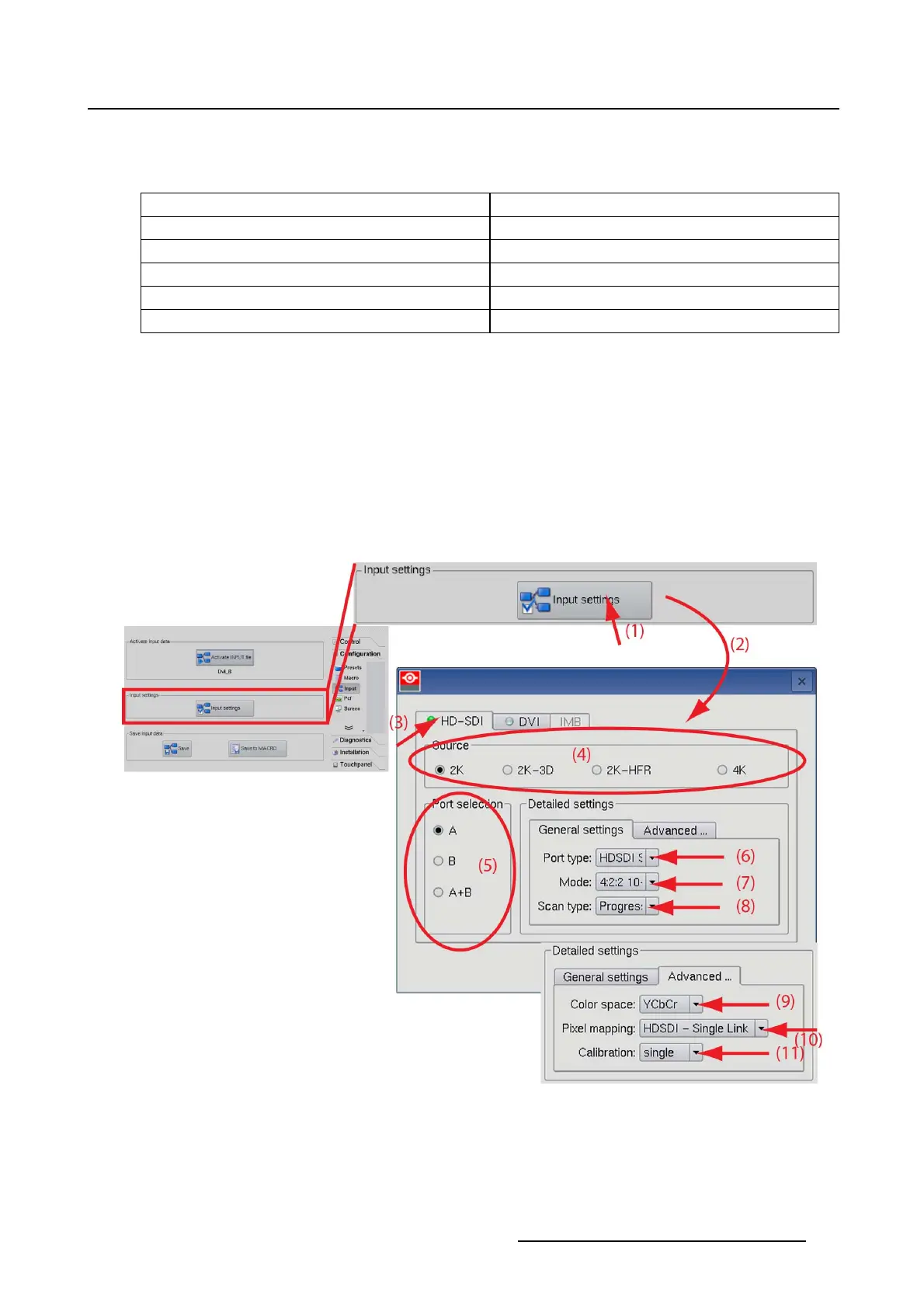

Image 3-10
HD-SDI settings
R59770488 COMMUNICATOR TOUCH PANEL 06/06/2012 41
