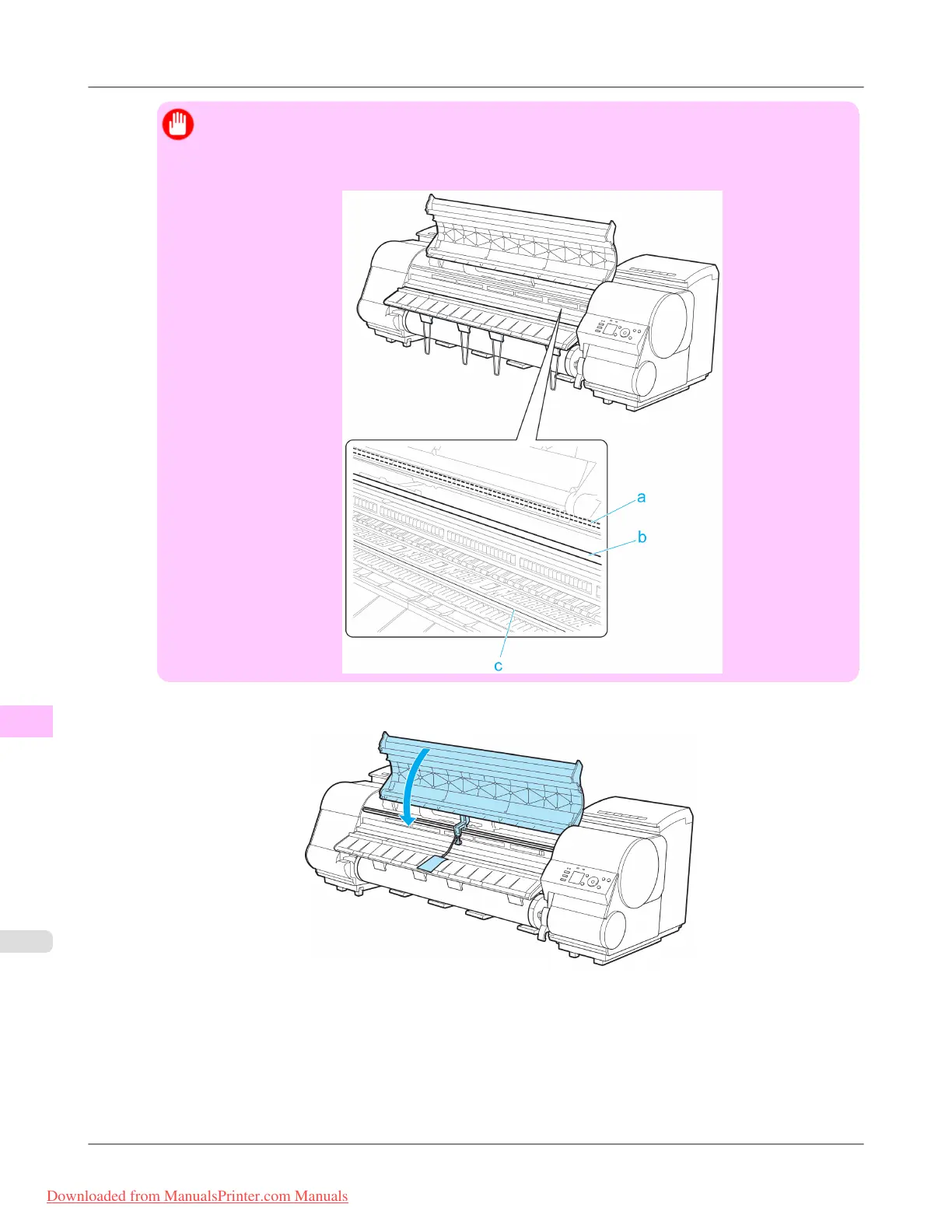

Important
• Here, the Belt Stopper is the one that was removed and stored after initial installation. Neglecting to
attach the Belt Stopper may damage the printer.
• Do not touch the Linear Scale (a), Carriage Shaft (b), or Fixed Blade (c).
6. Close the Top Cover.
7. Tape down printer covers to secure them, in the reverse order of tape removal during installation.
8. If the Output Stacker is installed, reverse the installation procedure to remove the Output Stacker.
9. Remove the Stand by reversing the installation procedure, when it was attached to the printer.
Maintenance
>
Other Maintenance
>
Preparing to Transfer the Printer iPF8300
11
1038
