102Service Manual – CS7010™ 24 - Electrical System

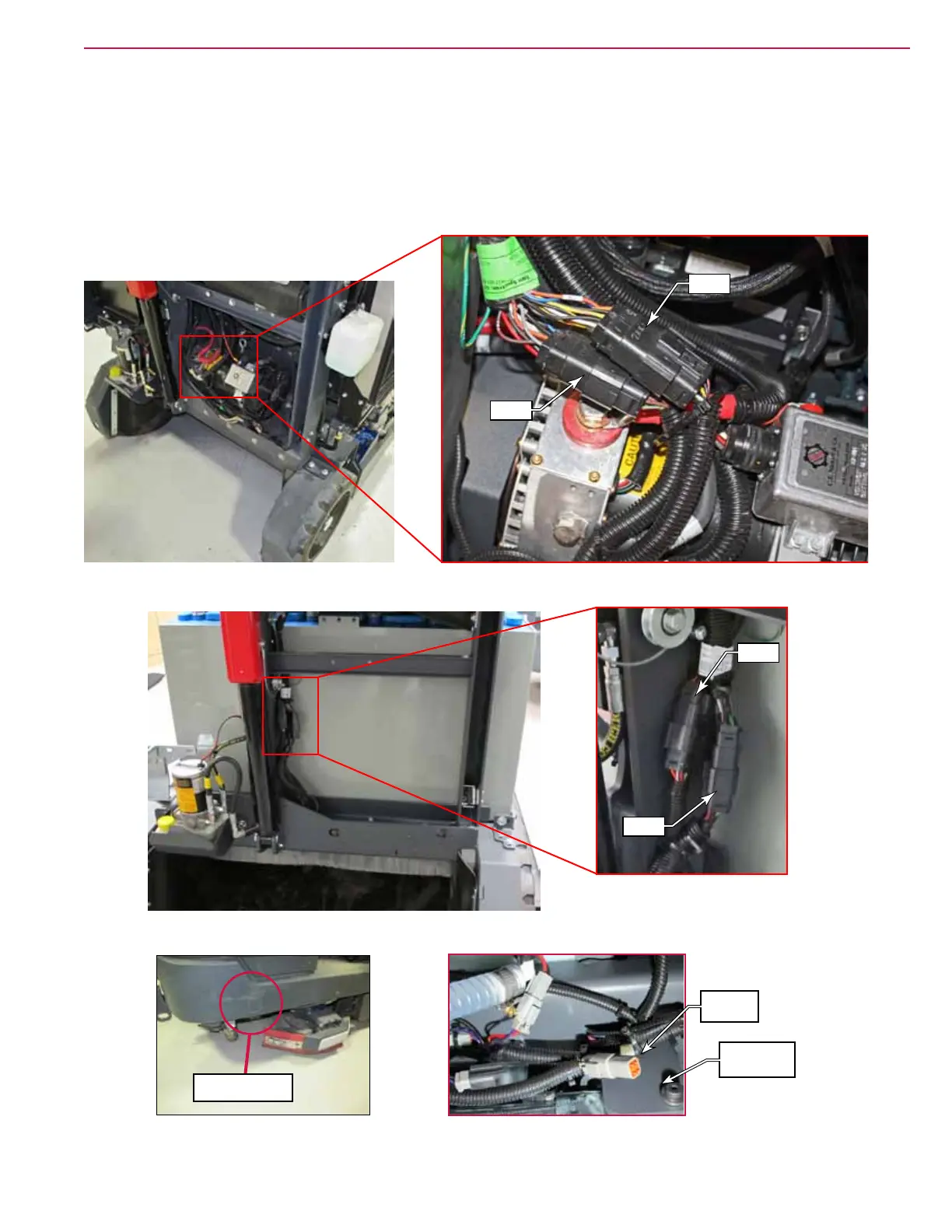

Harness to Harness Connector Locations
Most connectors are plugged into a component like the squeegee actuator; nd the squeegee actuator and
you can locate the squeegee actuator electrical connector. However, there are a few connectors that connect
two harness. These are pictured here.
Main Harness X42 and X43 to Hopper Harness X112 and X113
Engine Models
X112
X113
Battery Model
X112
X113
Main Harness X99 to Taillight Harness X152
Underneath
Squeegee
Lift Bracket
Taillight
Harness
