228Service Manual – CS7010™ 34 - Scrub System

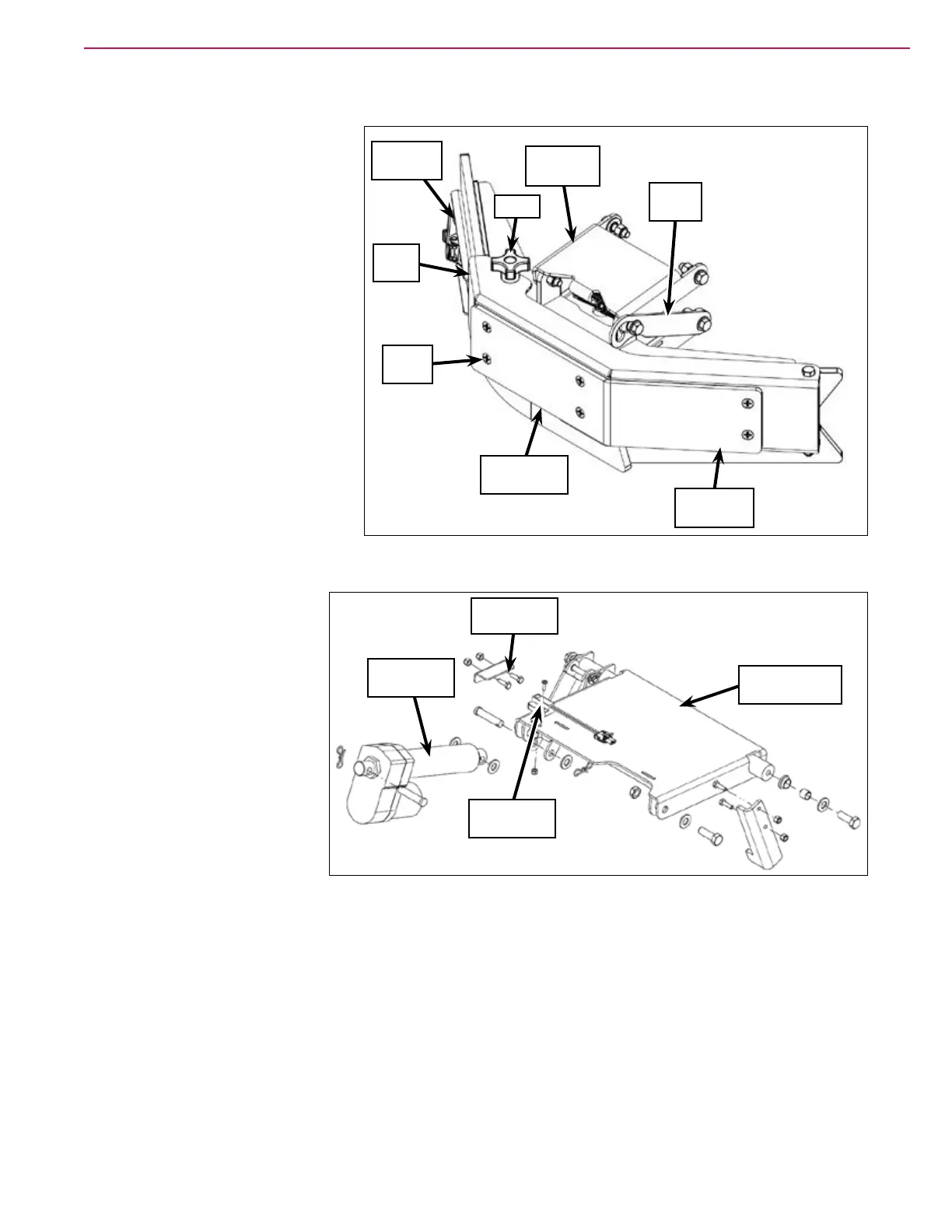

Side Squeegee Assemblies
The side squeegee assemblies are
mounted to arms that are attached
to the main deck and swingarm.
The side squeegee assemblies are
spring-loaded to keep them rmly on
the oor. A catch plate allows you to
lock the side squeegee in the upper
position for double-scrub cleaning
and maintenance.
An edge guard, held in position by
a knob, protects the right-hand side
squeegee and swings out to allow
access to the blade strap and trailing
deck blade.
The latch assembly releases to allow
you to remove the blade strap and
trailing deck blade.
The leading deck blades are held in
place by strap weldments and wing
knobs.
Scrub Deck Actuator
The scrub deck actuator is
pinned to the machine frame,
and to the pivoting deck lift
assembly arm. When the
scrub deck actuator extends or
retracts, it lowers or lifts the free
side of the deck lift assembly
arm.
The deck lift assembly arm
pivots on ange bearings and
bushings in the frame to raise
and lower the attached scrub
deck. Note that the scrub deck
is free to “oat” left-to-right to
conform to the oor surface.
Weldment
Arm
Catch
Plate
Latch
Assembly
Blade
Strap
Edge
Guard
Trailing Deck
Blade
Leading
Deck Blade
Knob
Deck Lift
Assembly Arm
Scrub Deck
Actuator
Sensor Target
Bracket
Retract Limit
Switch
