116Service Manual – CS7010™ 24 - Electrical System
Removal and Installation
Alternator-Generator Drive Belt
WARNING: Severe arc-ash hazard. Use
caution when working with the
main battery terminals to avoid
shorting across the battery.
Note: Instructions are for both diesel and LPG
models. Photos are of diesel.

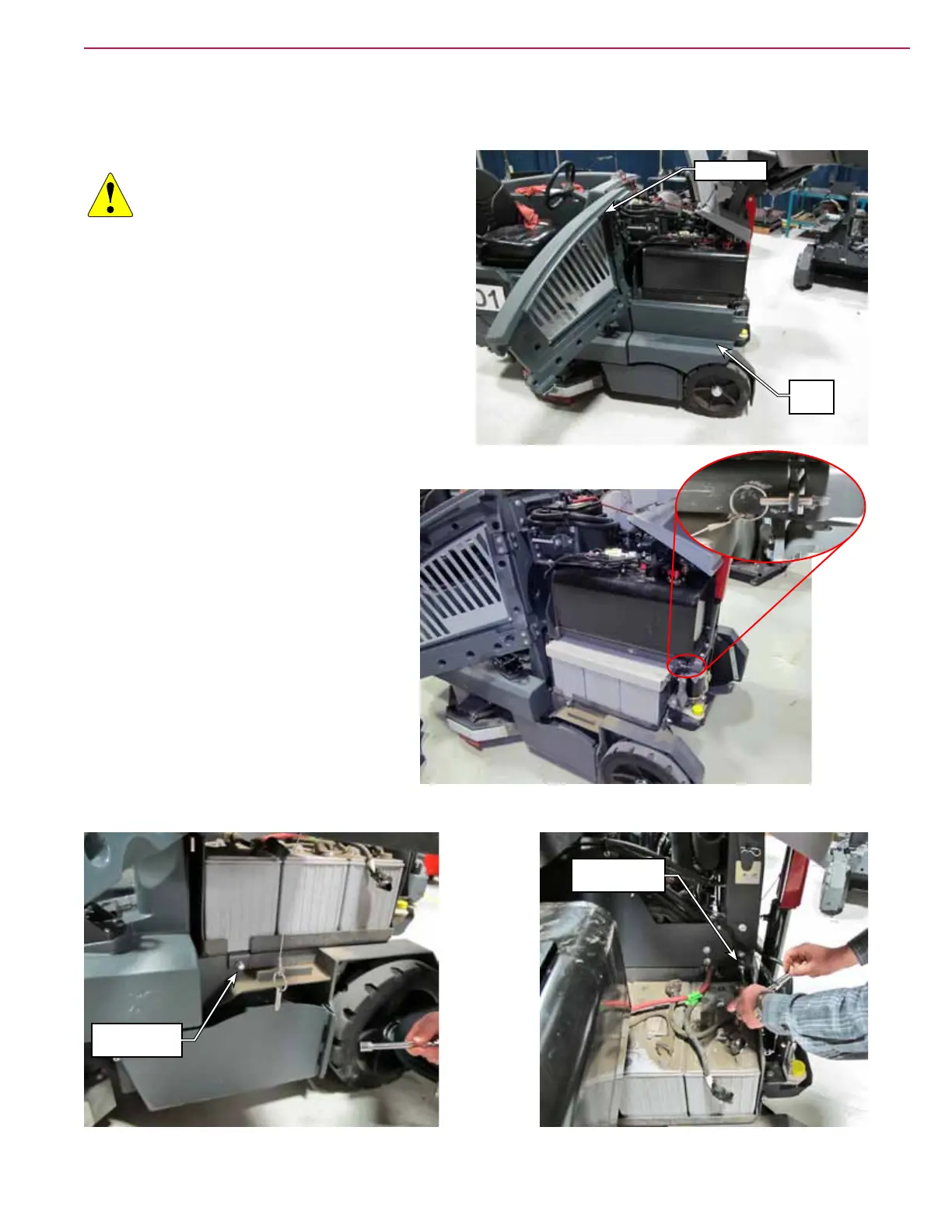

1. Lift hopper up, engage hopper prop rod and then
lower to safety lock position.
2. Open the side cover and remove the lower panel.
3. Remove the retaining pin and swing out
the fuel tank.
4. Remove the 36v battery pack top cover.
5. Disconnect the main battery negative
and positive cables from the battery
terminals.
6. Remove the front and rear mounting
screws that secure the battery pack tray to frame.
Rear Mounting
Screw
Front Mounting
Screw
Side Cover
Lower
Panel
To Next Page
